HORIBA JOBIN YVON CODIRA CONFOCAL RAMAN - MICRO-SPECTROMETER

HORIBA JOBIN YVON CODIRA CONFOCAL RAMAN MICRO-SPECTROMETER

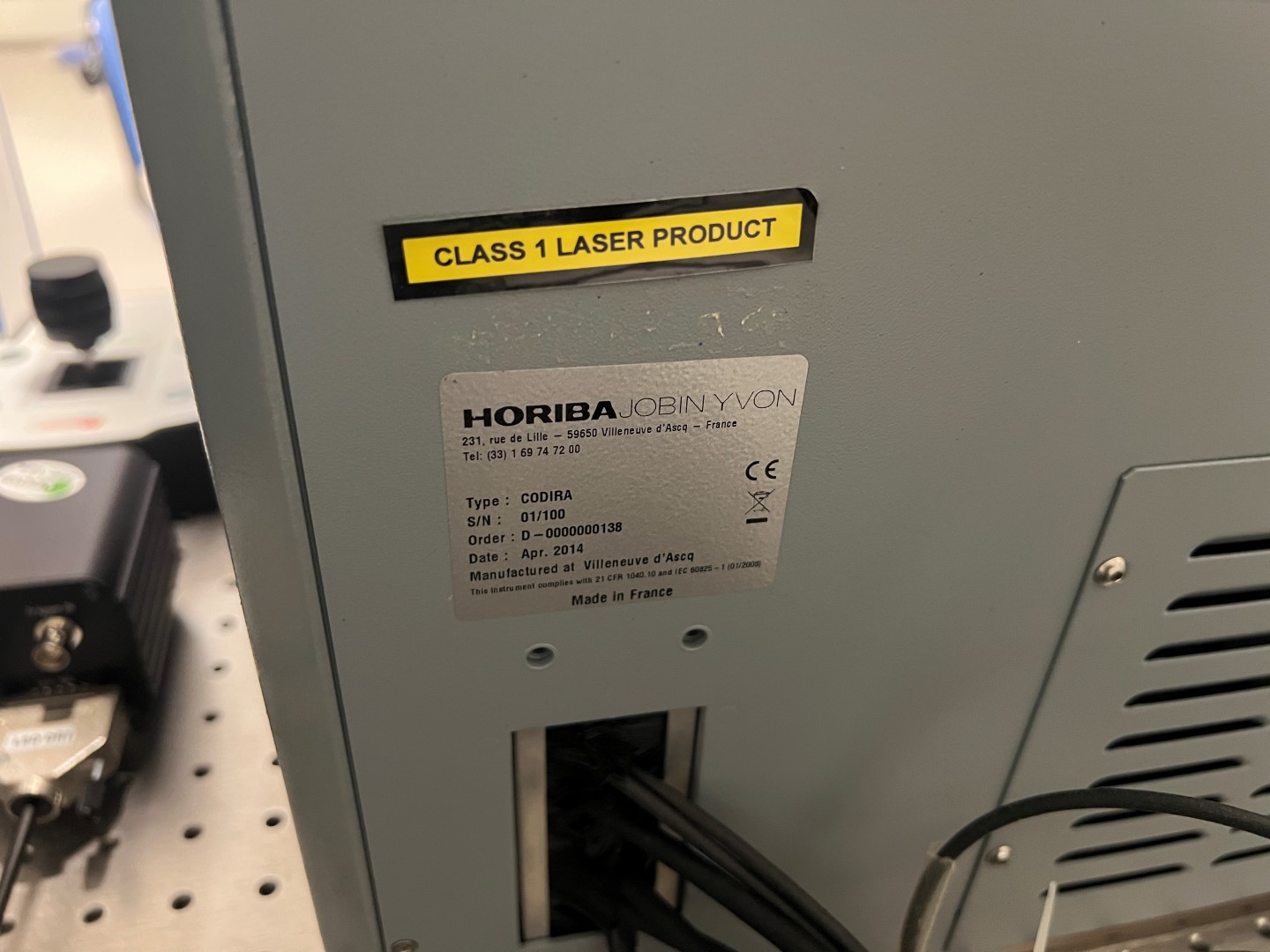

Manufacturer: HORIBA Jobin Yvon (HORIBA Scientific)
Model: CODIRA
Serial number: 01/100
Order number: D-0000000138
Date of manufacture: April 2014
Laser classification: Class 1 laser product (enclosure) / Class 3B (open optical path)
Compliance: 21 CFR 1040.10, IEC 60825-1

SYSTEM OVERVIEW
The CODIRA is a confocal dispersive Raman imaging platform manufactured by HORIBA Jobin Yvon (now HORIBA Scientific). It is designed for point-spectrum acquisition, Raman mapping, and chemical imaging of solid and liquid samples. The system integrates a large-body dispersive spectrograph (HORIBA iHR-series), an Olympus upright microscope with a motorized XY scanning stage, and a fiber-coupled laser delivery module. A Viewing/Raman autoswitch beam-path selector is integrated in the microscope head, enabling rapid switching between white-light observation and Raman acquisition modes.

MICROSCOPE & OPTICS

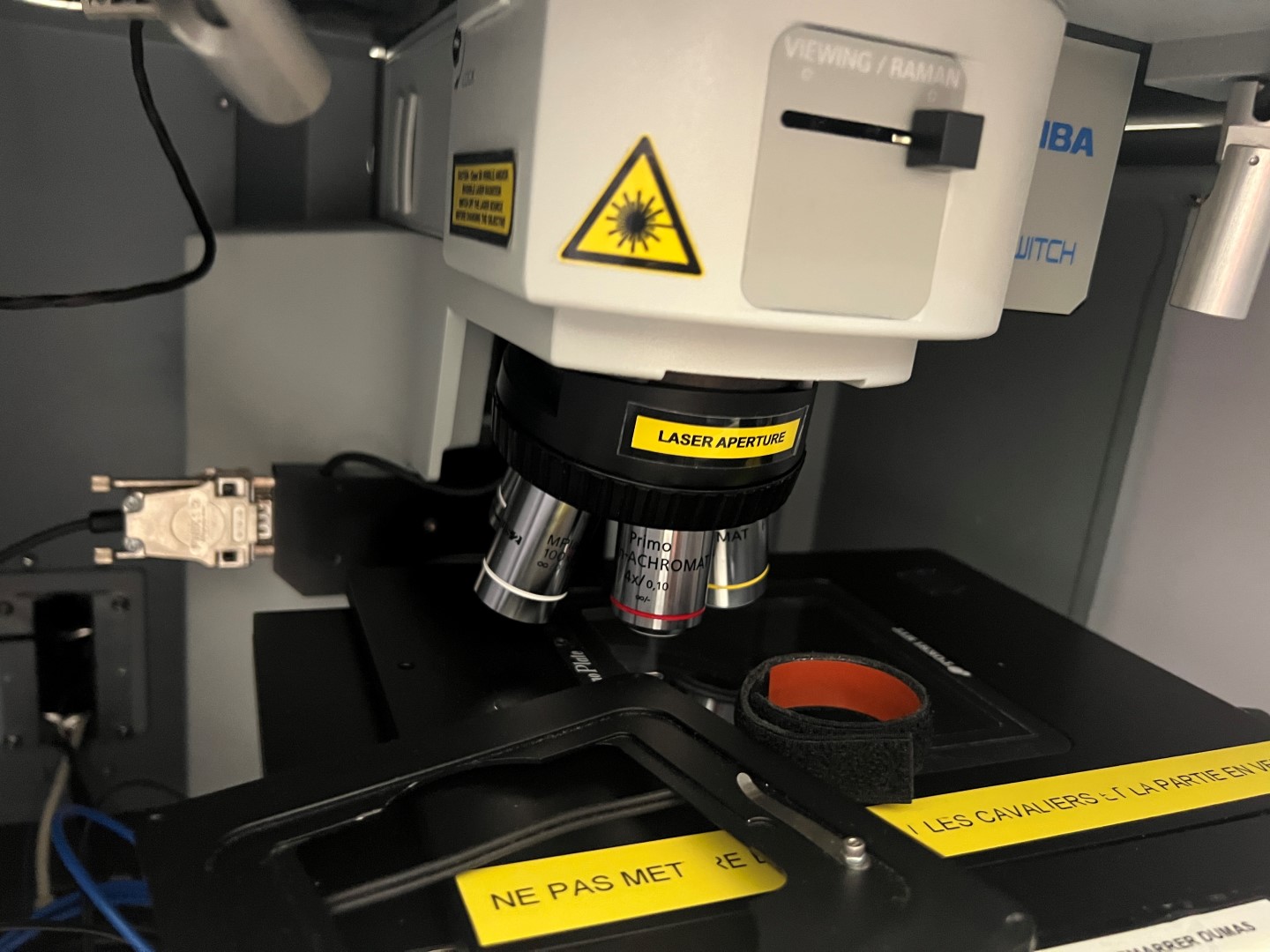

- Olympus upright microscope body with motorized XY sample stage
- Objectives: Primo Achromat 4×/0.10 NA; MPlan 100× (oil immersion)
- Viewing/Raman autoswitch integrated in microscope head
- Laser aperture control on microscope body

LASER SYSTEM

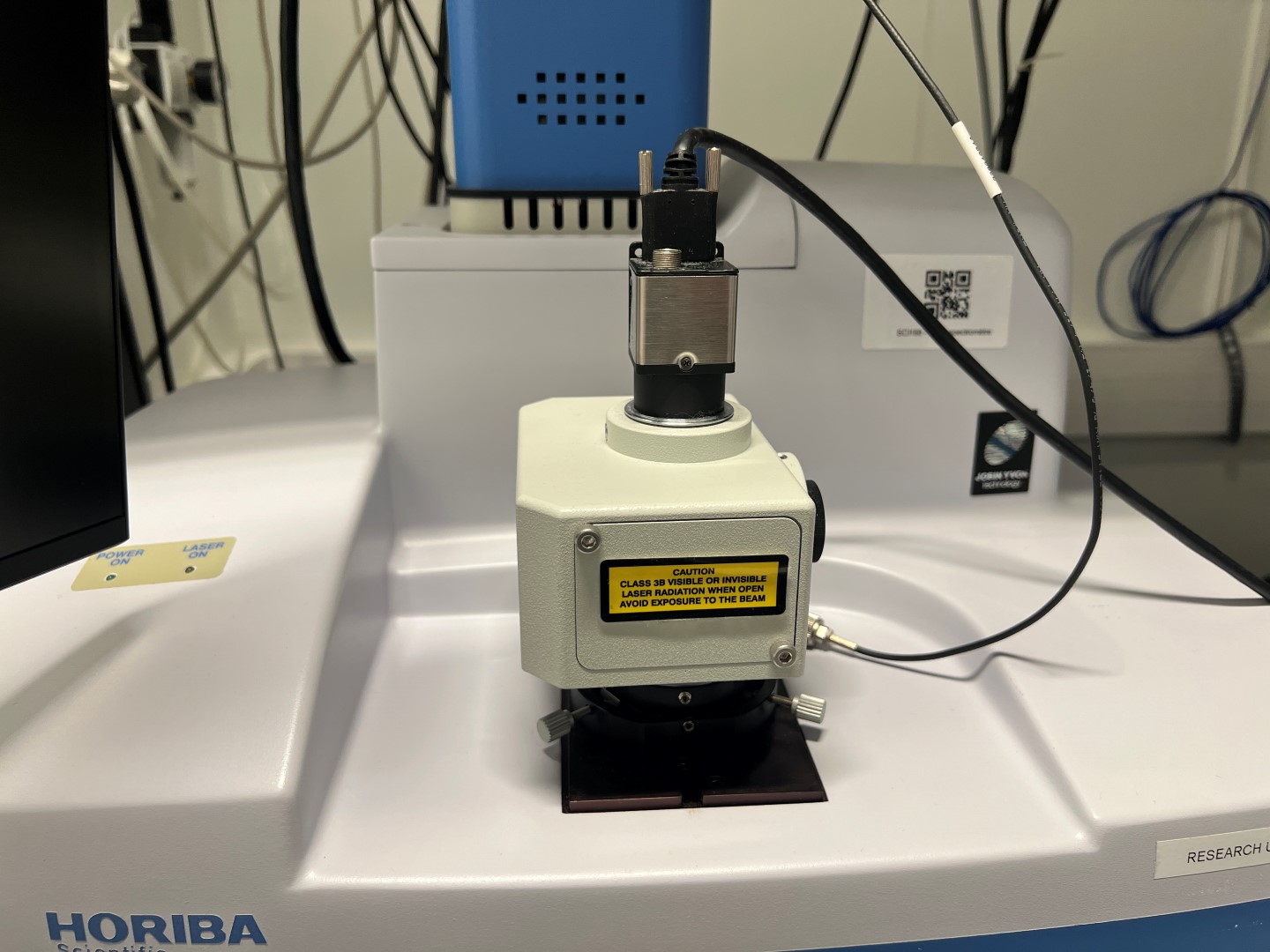

- External fiber-coupled laser input module (Class 3B, visible/invisible wavelengths)

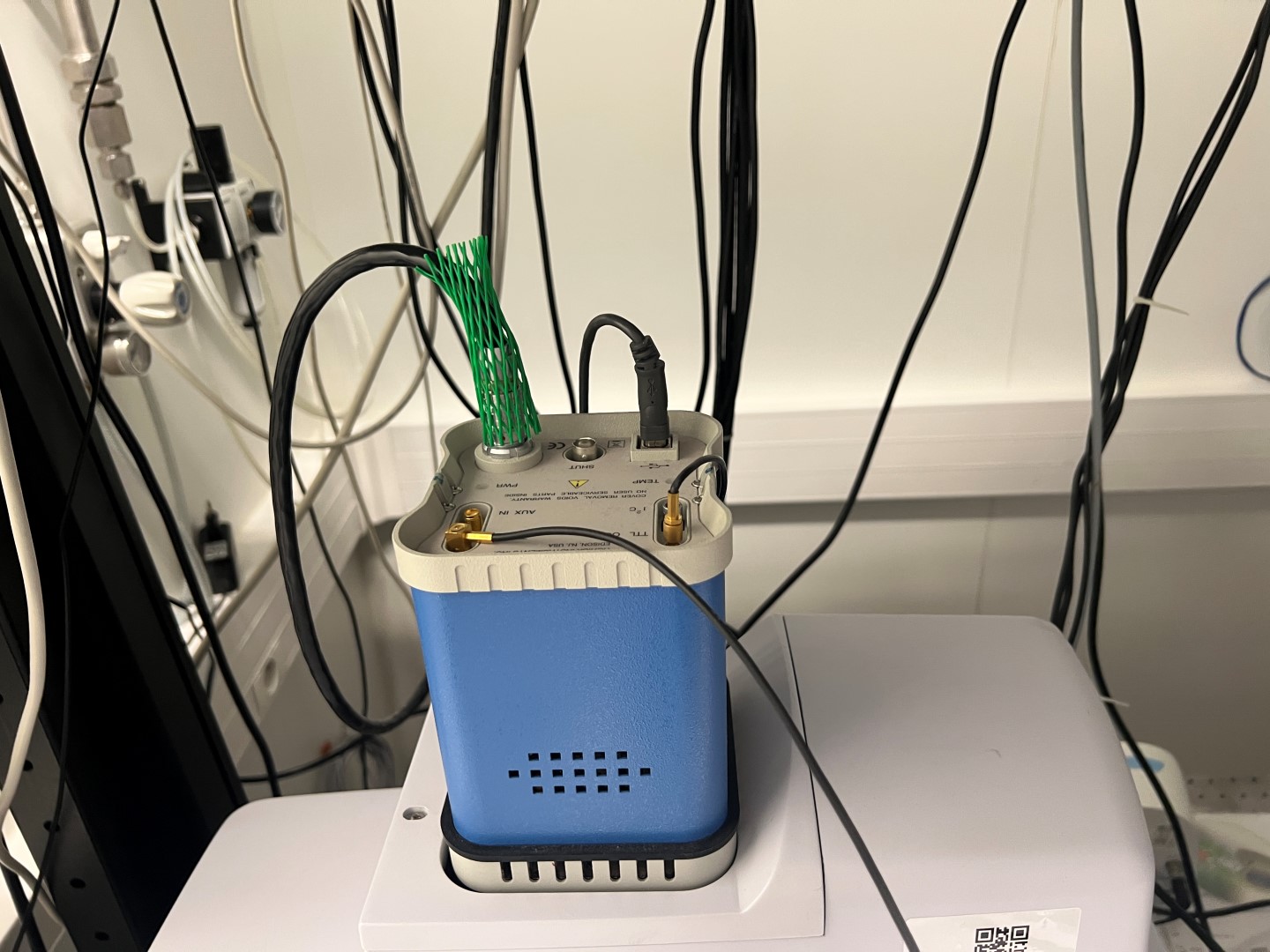

- Compact blue diode laser source unit with AUX IN, TTL trigger, PWR, and SHUTTER control connectors
- Fiber optic beam delivery to microscope

DETECTION

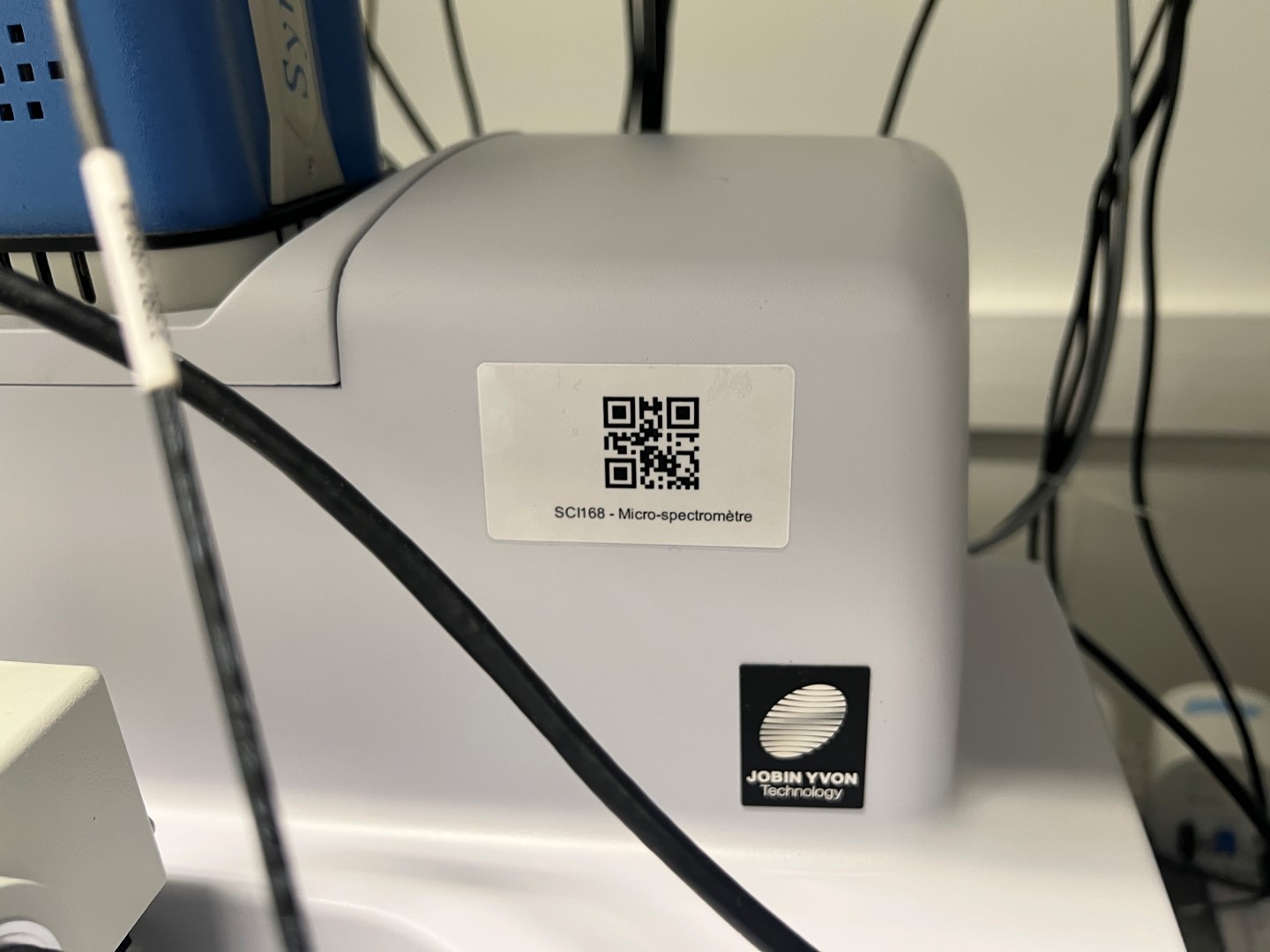

- Jobin Yvon Technology micro-spectrometer detection module
- Fiber-coupled input from spectrograph

ACCESSORIES & ANCILLARIES INCLUDED
- Complete fiber optic cable harness (laser-to-spectrograph, spectrograph-to-microscope, detector fiber)
- Full data and power cable set

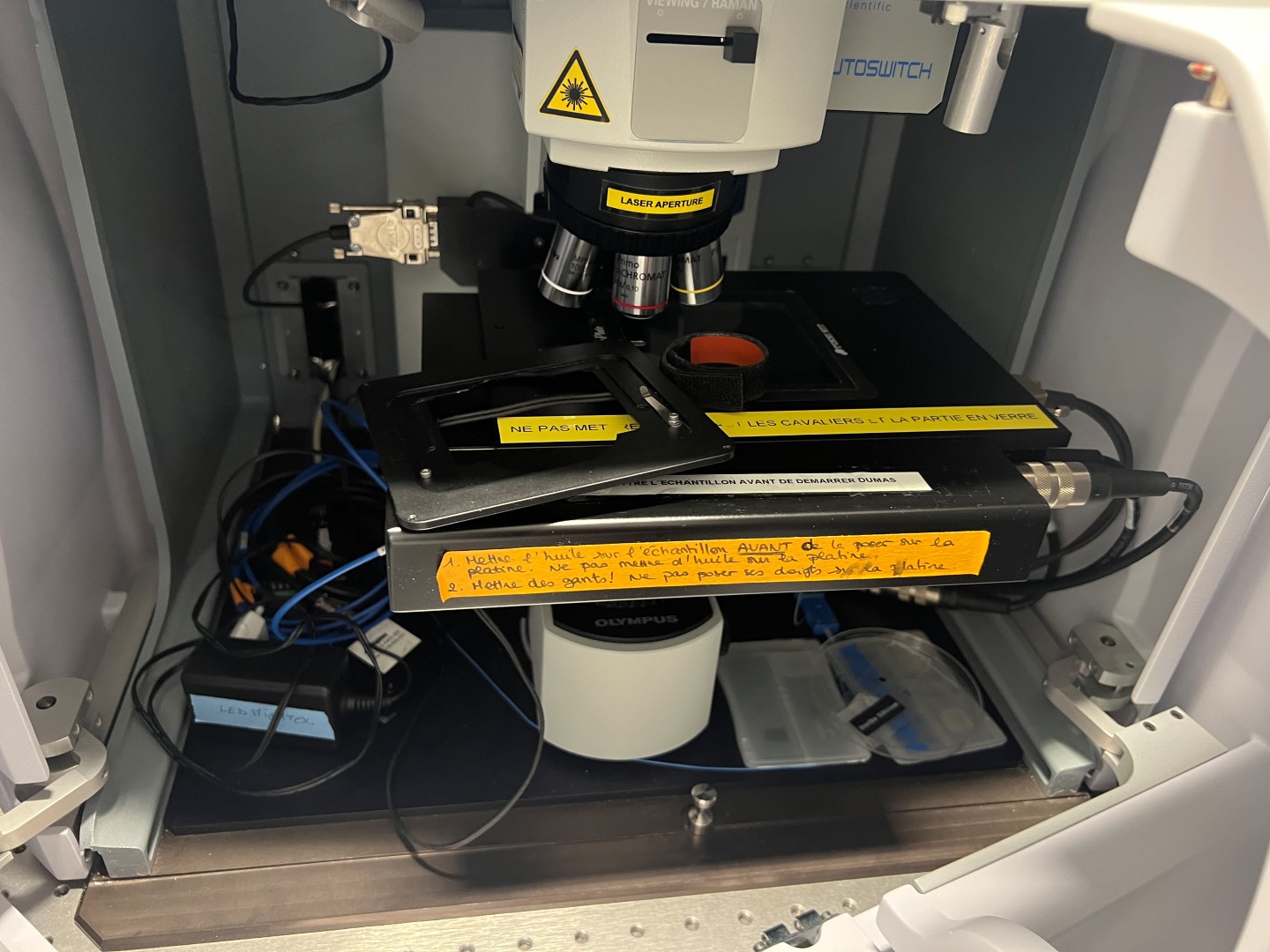

- Motorized XY stage with sample holder and clips
- Immersion oil container (present at stage)
- System installed on optical breadboard (breadboard/vibration table not included unless otherwise stated)

The system has been decontaminated (certificate available). Sold as-is, where is. Buyer responsible for deinstallation, packing, and shipping. Viewing strictly by appointment. On-site demonstration available upon request.
