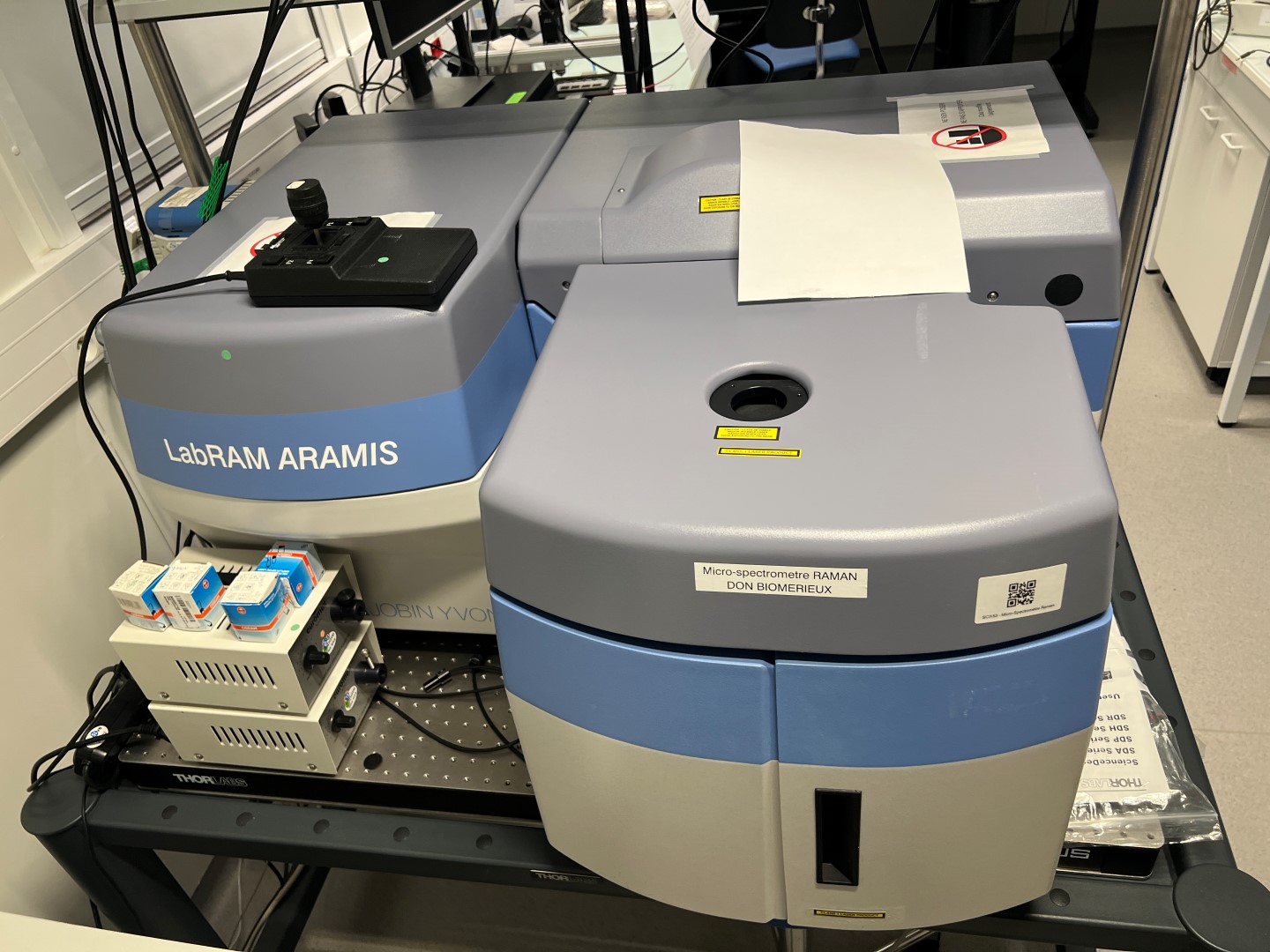

HORIBA Jobin Yvon LabRAM ARAMIS - Confocal Raman Microspectrometer

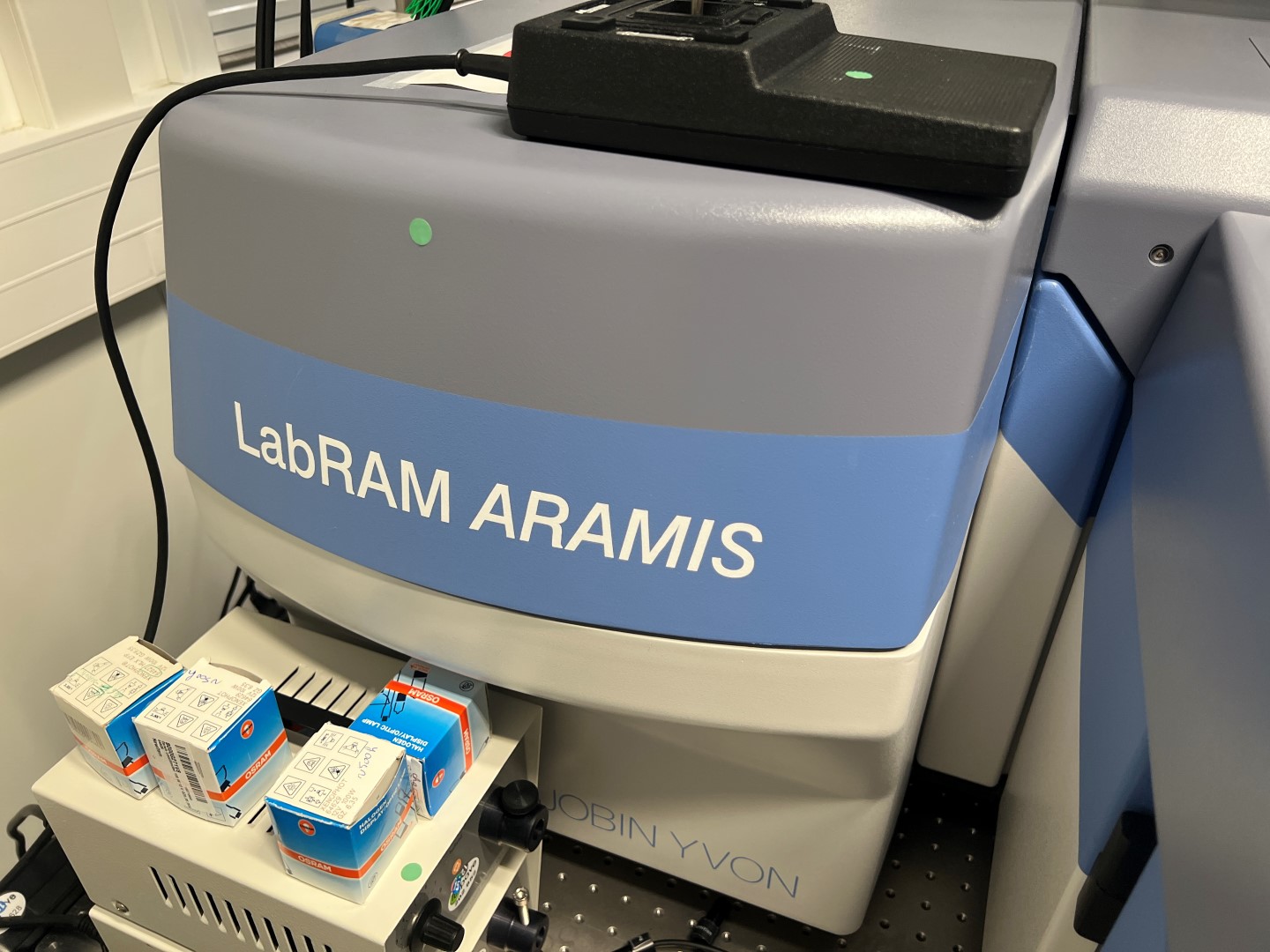

HORIBA Jobin Yvon LabRAM ARAMIS Confocal Raman Microspectrometer

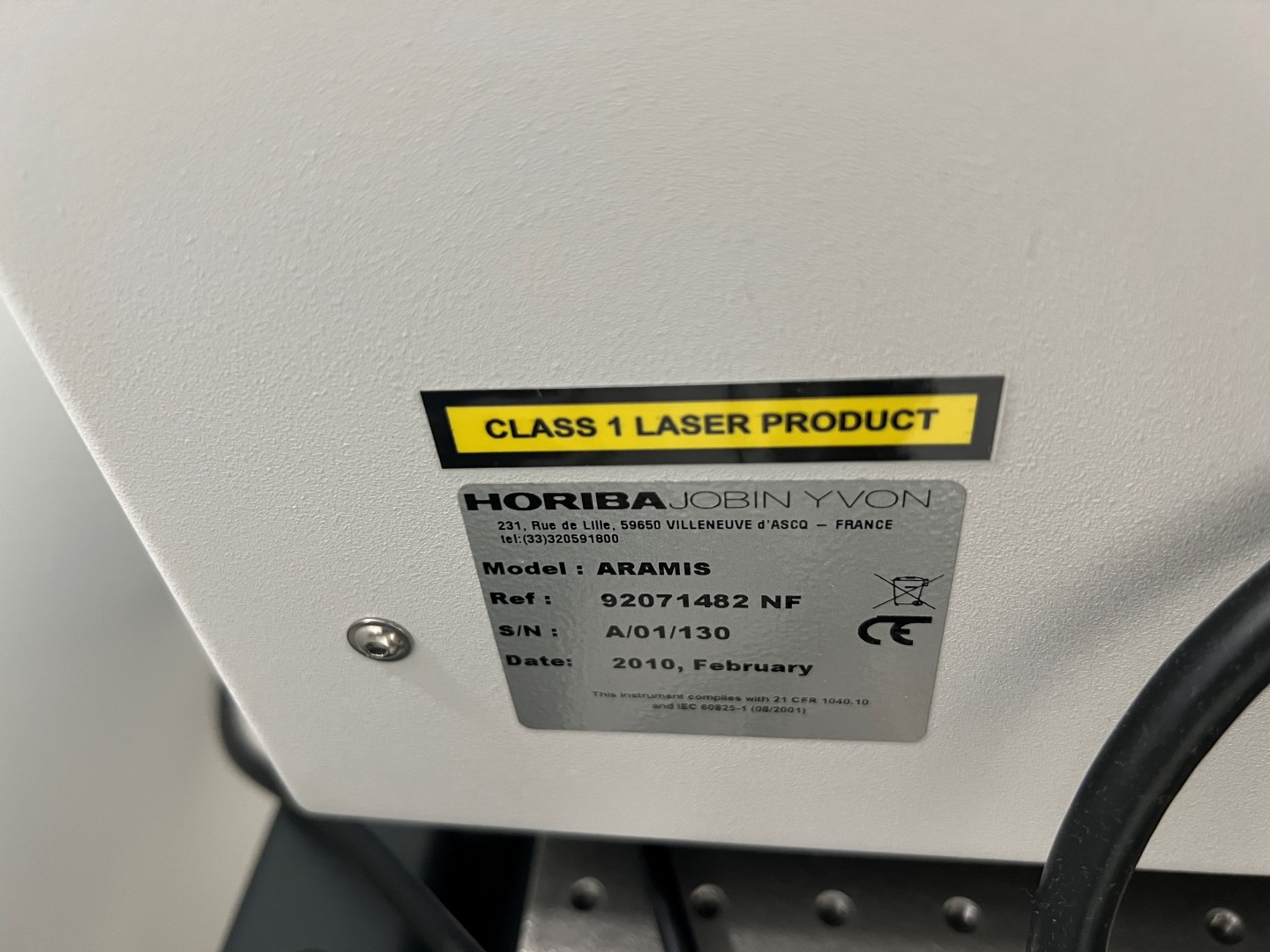

Manufacturer: HORIBA Jobin Yvon (Villeneuve d'Ascq, France)
Model: LabRAM ARAMIS
Reference: 92071482 NF
Serial number: A/01/130
Date of manufacture: February 2010
Laser class: Class 1 enclosed system (internal Class 3B — see caution label)
Compliance: 21 CFR 1040.10 | IEC 60825-1 (08/2001) | CE

DESCRIPTION

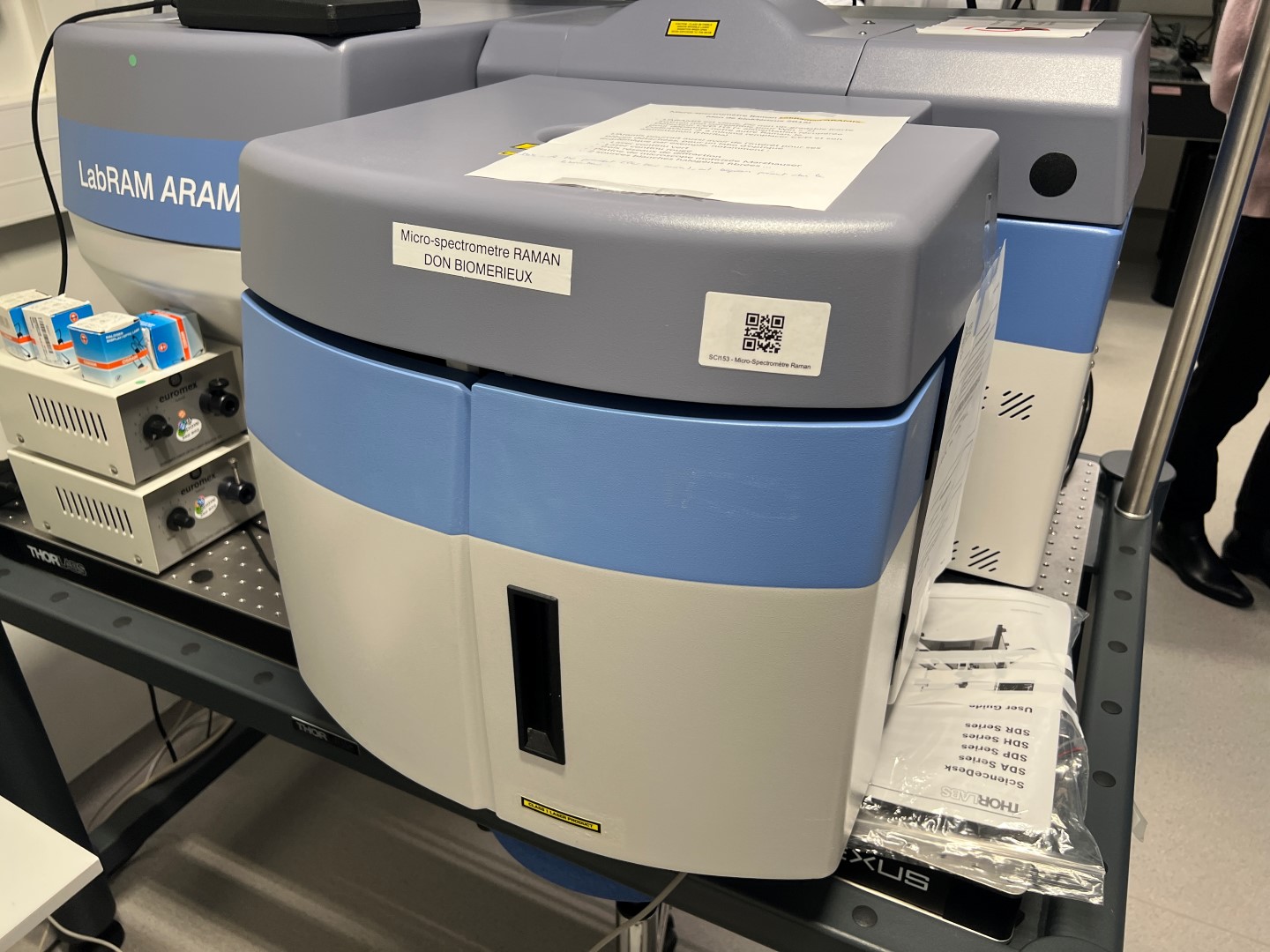

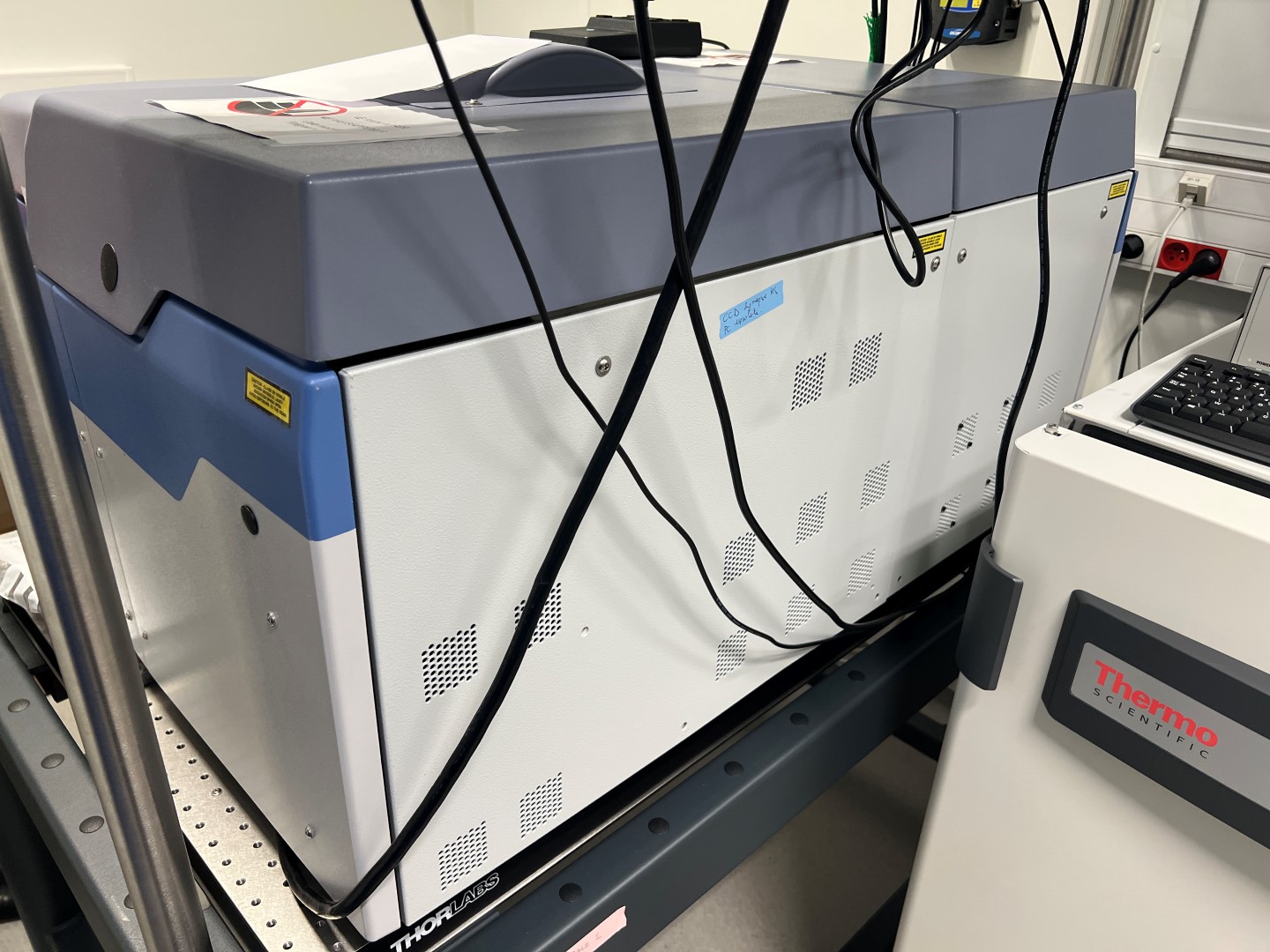

High-performance confocal Raman microspectrometer designed for non-destructive chemical characterisation and mapping of solid, liquid, and biological samples. The system integrates a full optical microscope platform with a high-resolution spectrograph and cooled CCD detector, enabling sub-micron spatial resolution Raman imaging.

INTEGRATED MICROSCOPE

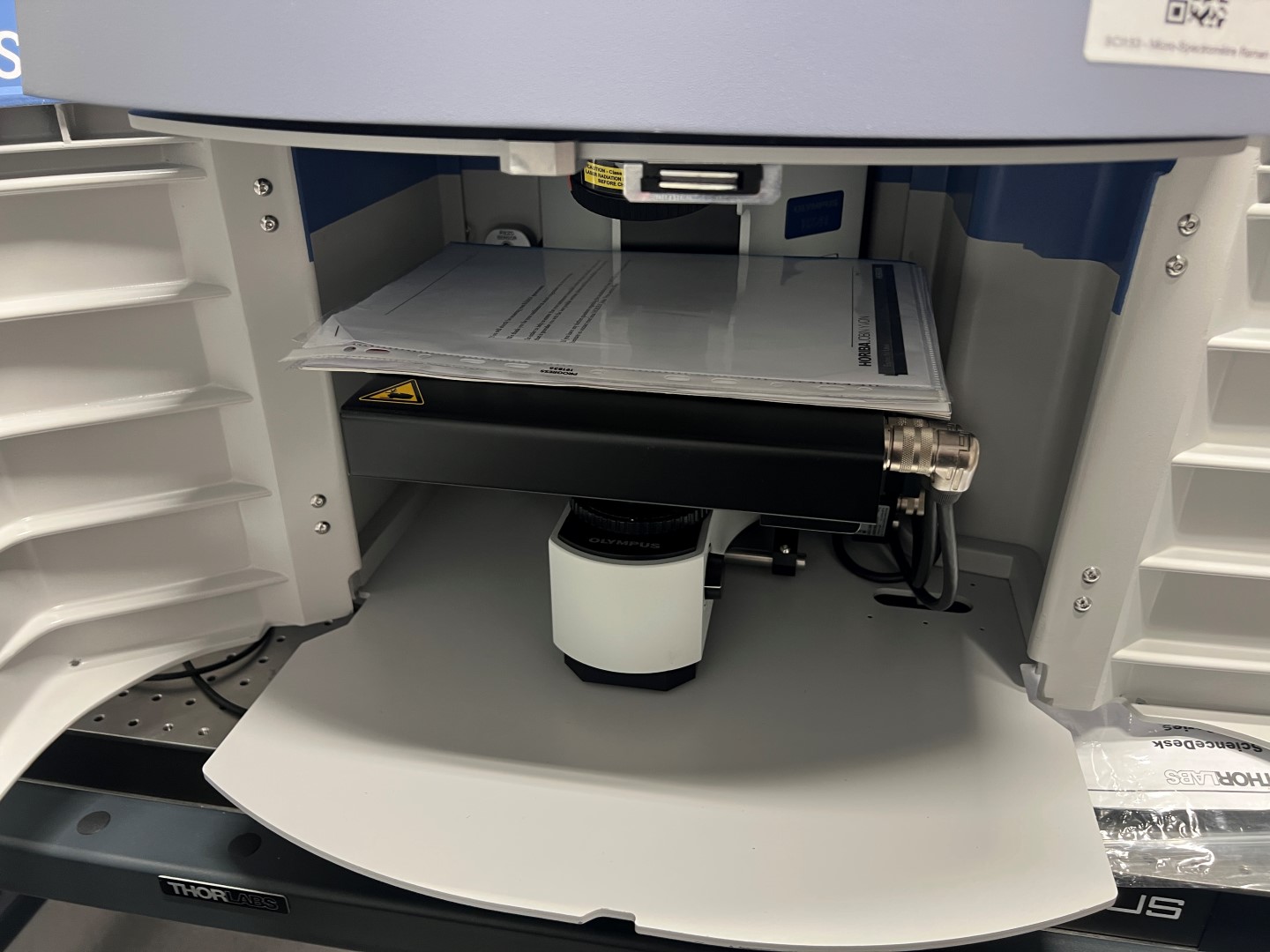

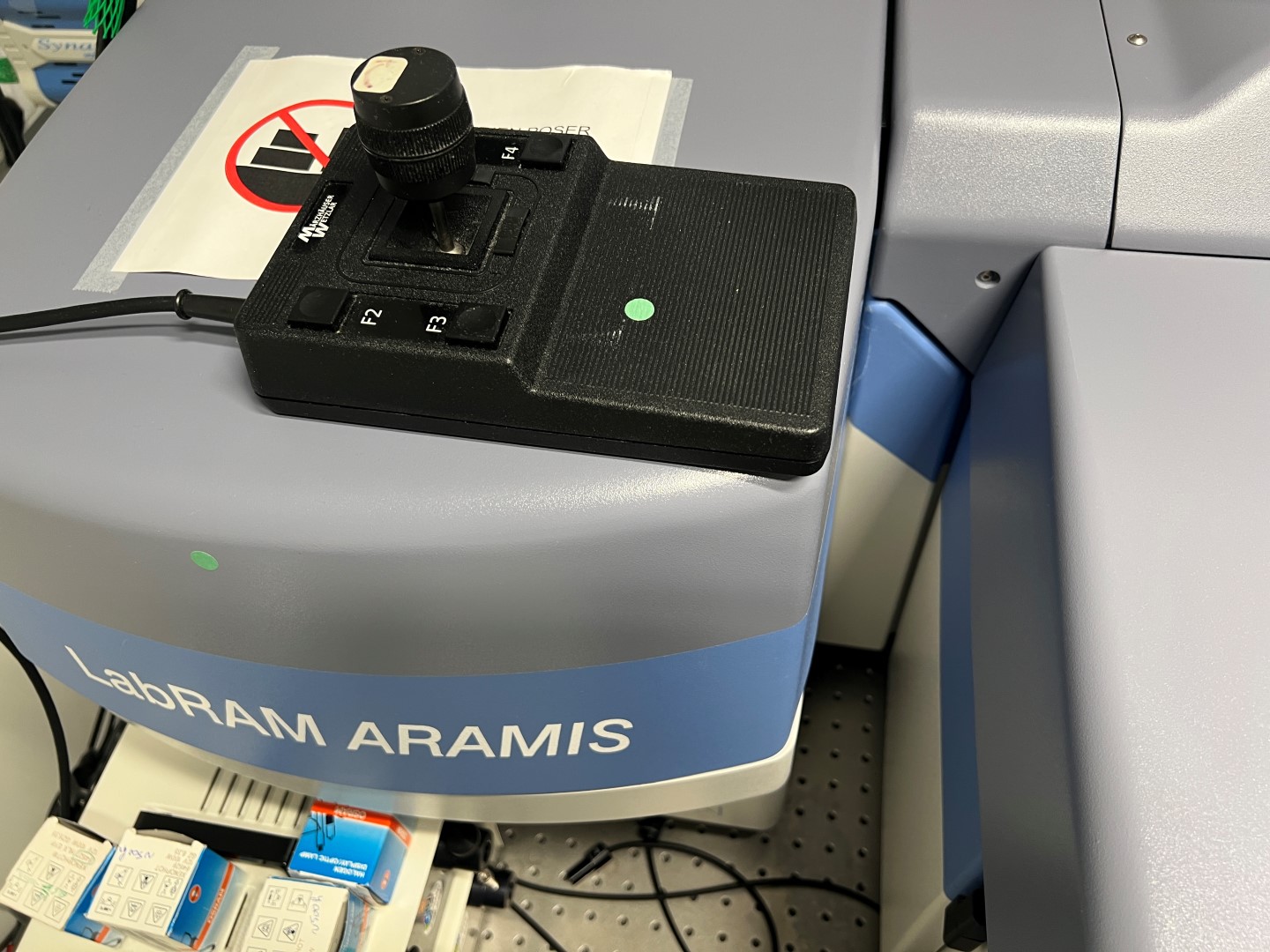

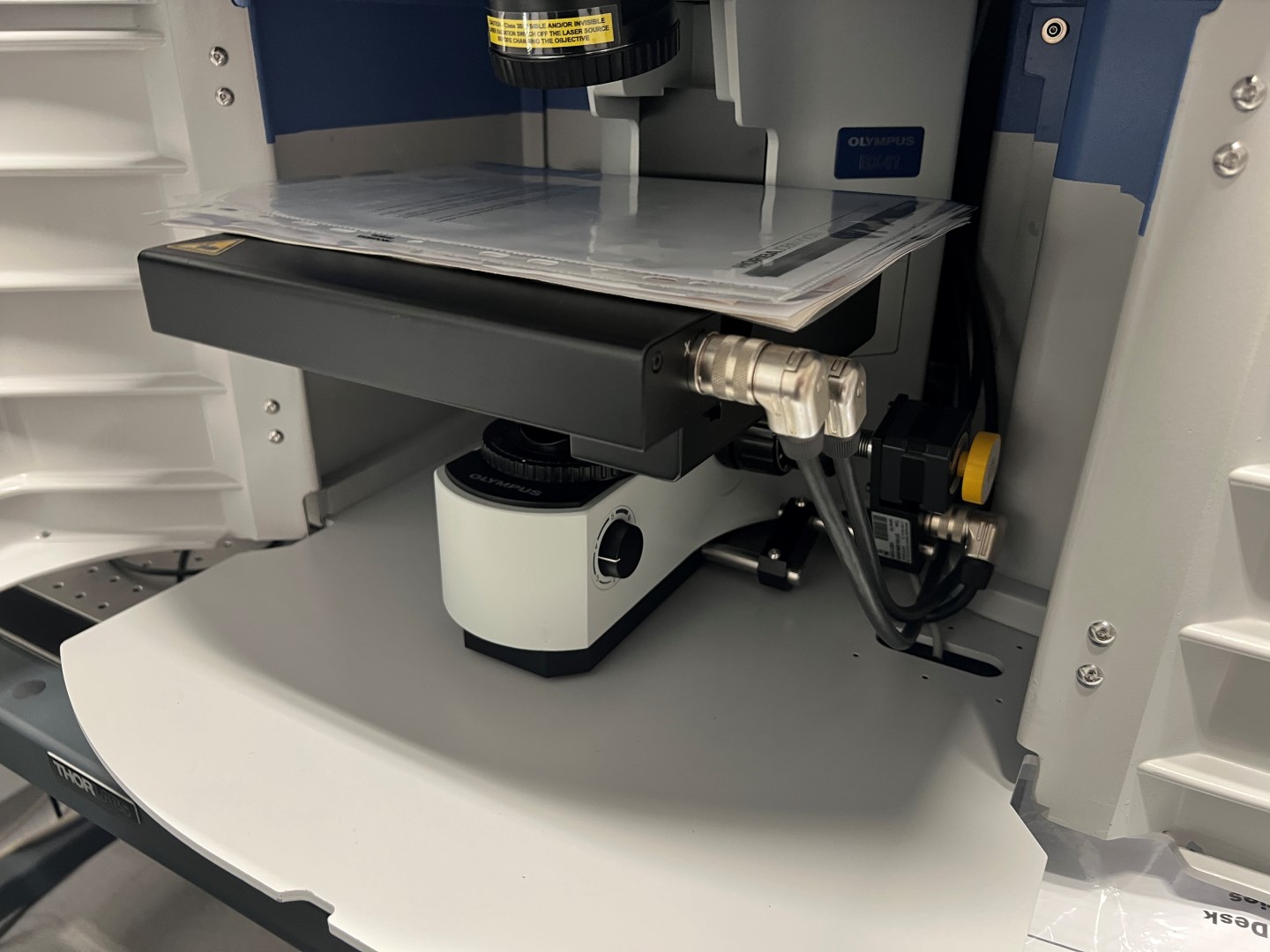

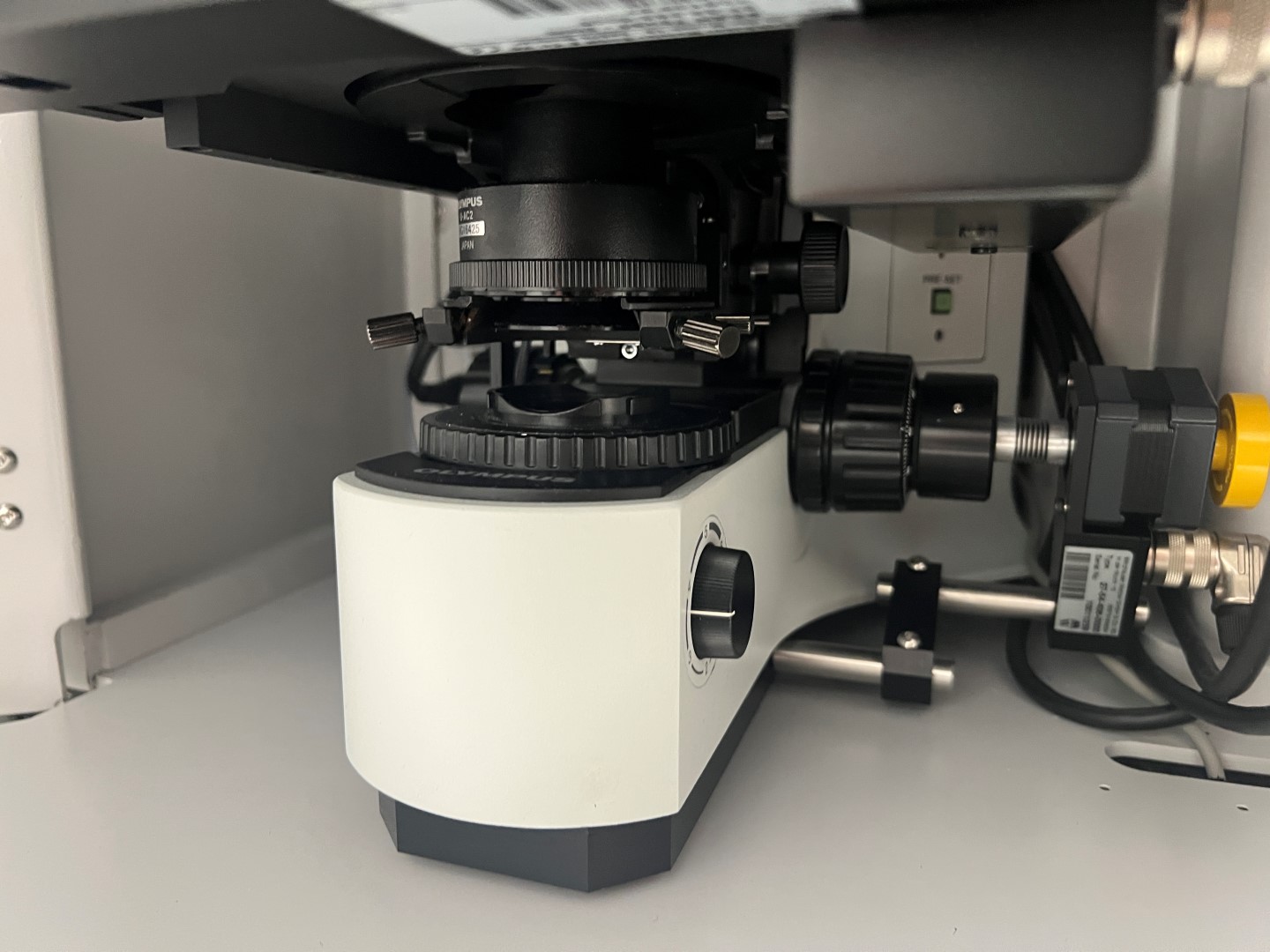

Olympus BX series upright optical microscope with motorized XYZ stage and joystick controller (F2/F3/F4 programmable function keys). Objective turret with multiple objective lenses mounted.

SPECTROGRAPH & DETECTOR

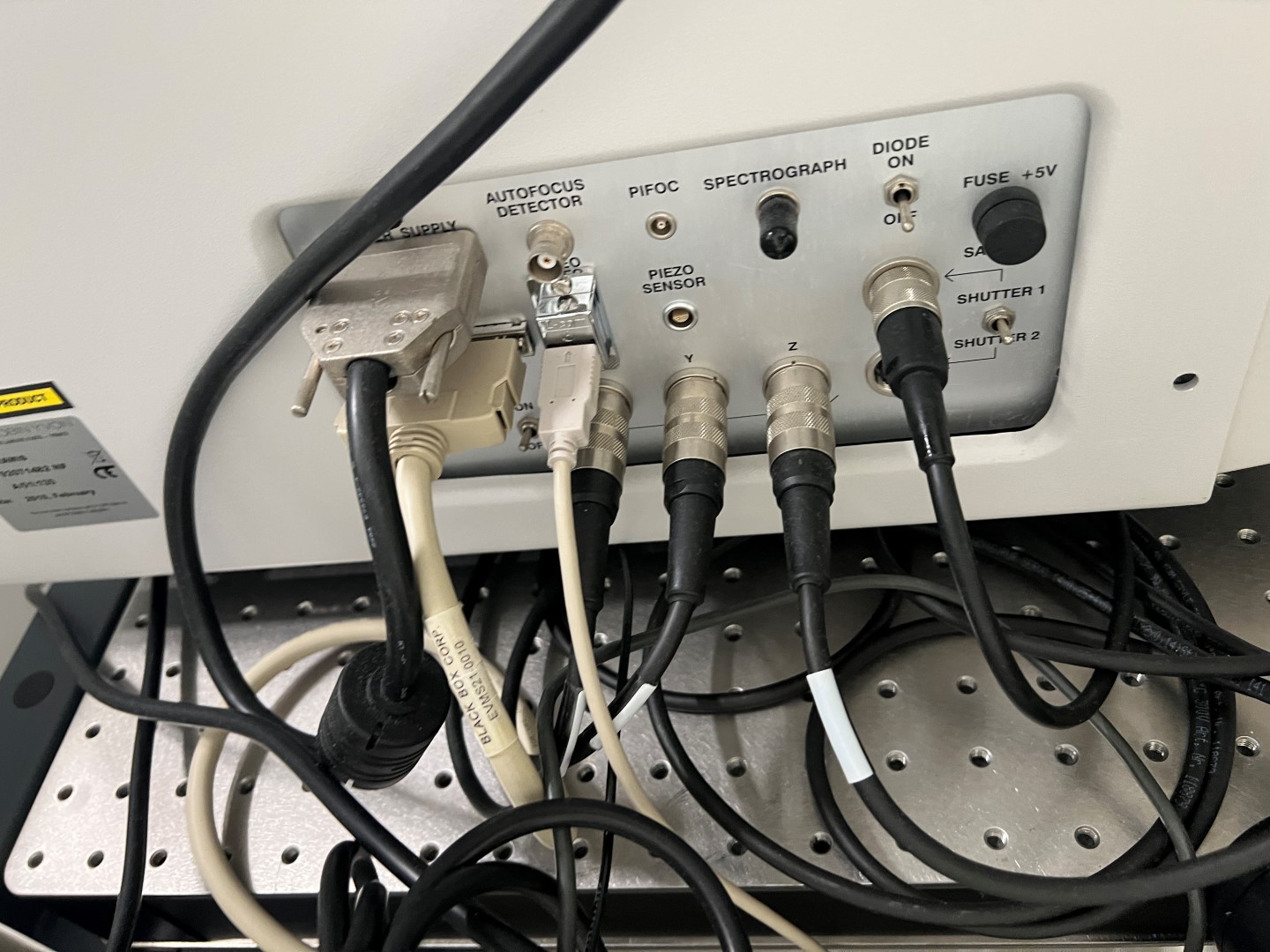

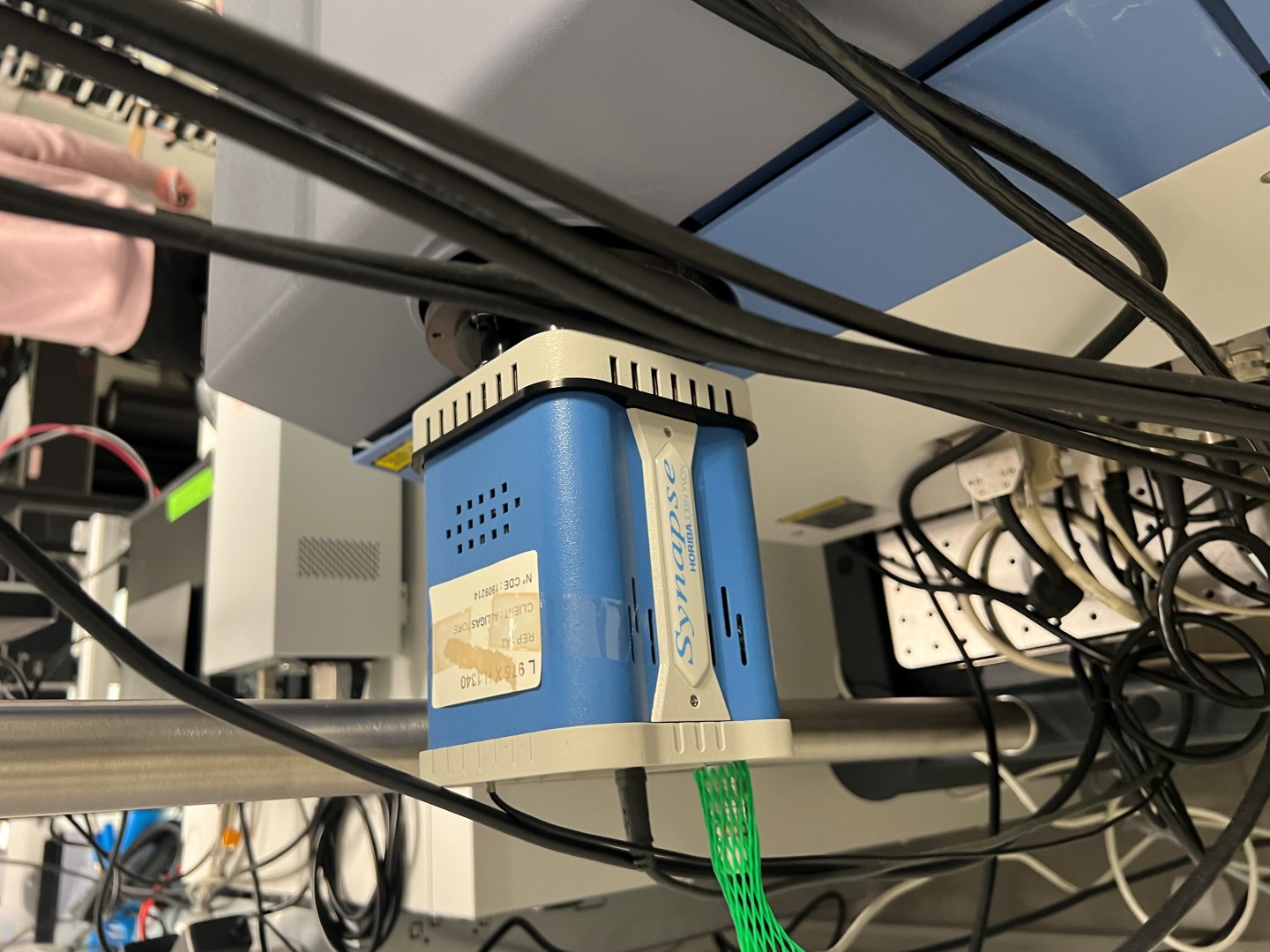

HORIBA Jobin Yvon Synapse Peltier-cooled CCD detector. High-throughput spectrograph with grating turret. Rear panel connections: Autofocus detector, PIFOC piezo focus controller, Spectrograph, Piezo sensor (Y/Z axes), dual Shutter outputs (1 & 2), Diode ON/OFF, +5 V fuse.

LASER SOURCES

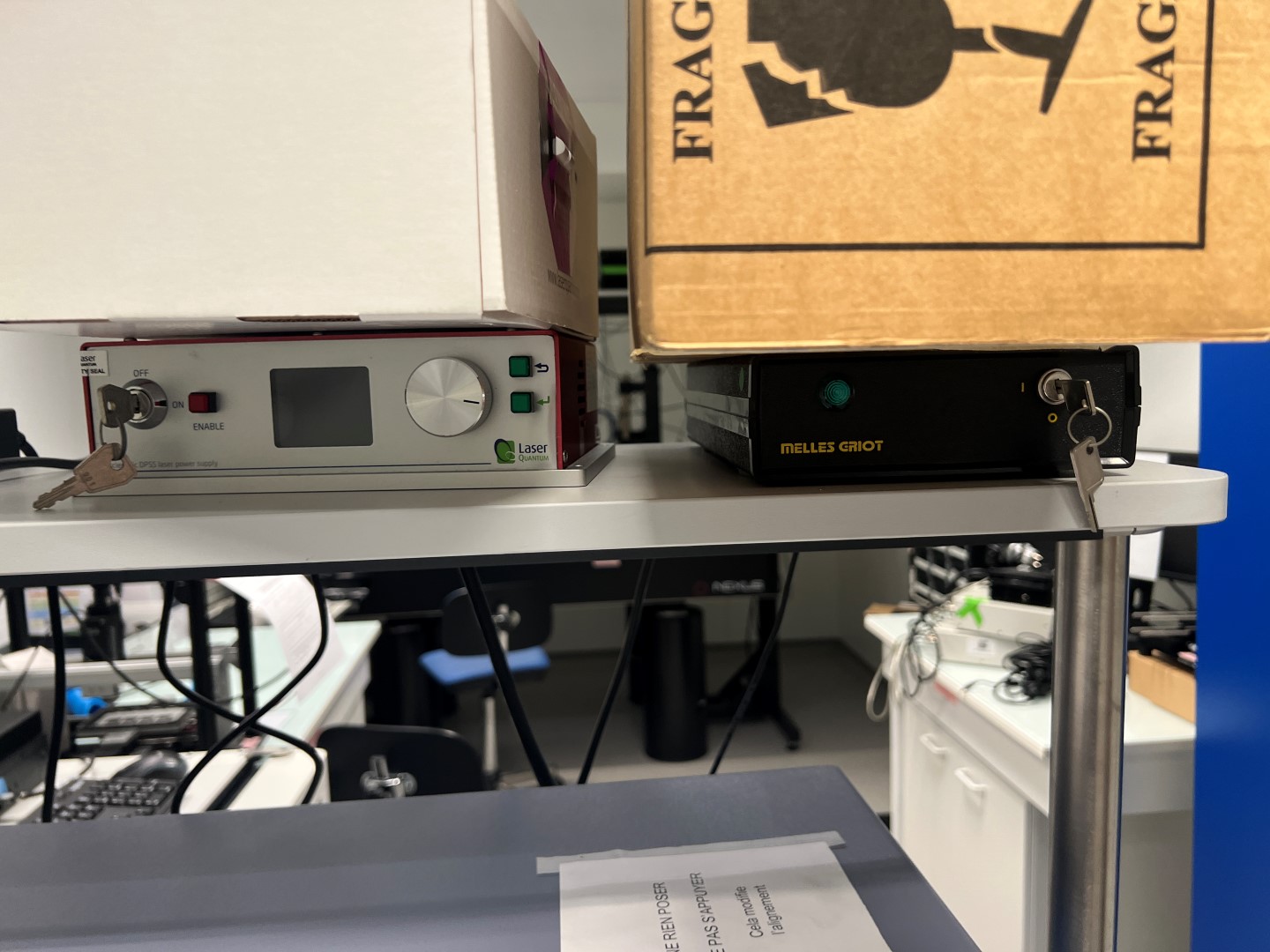

Two external laser sources included:
- Laser Quantum laser power supply unit
- Melles Griot laser controller unit

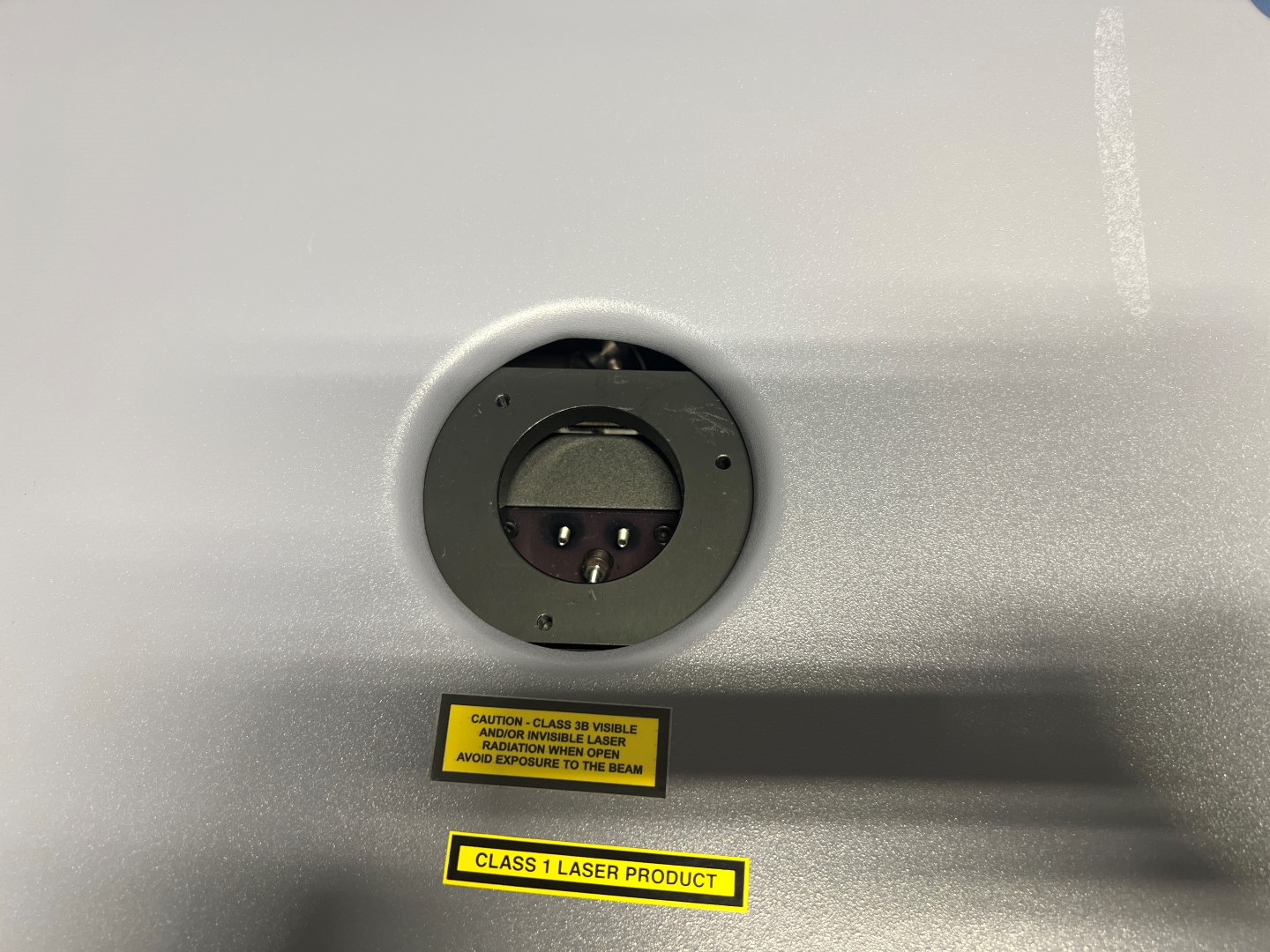

Both lasers coupled via fiber optic input port (Class 3B caution label on optical port).

ILLUMINATION

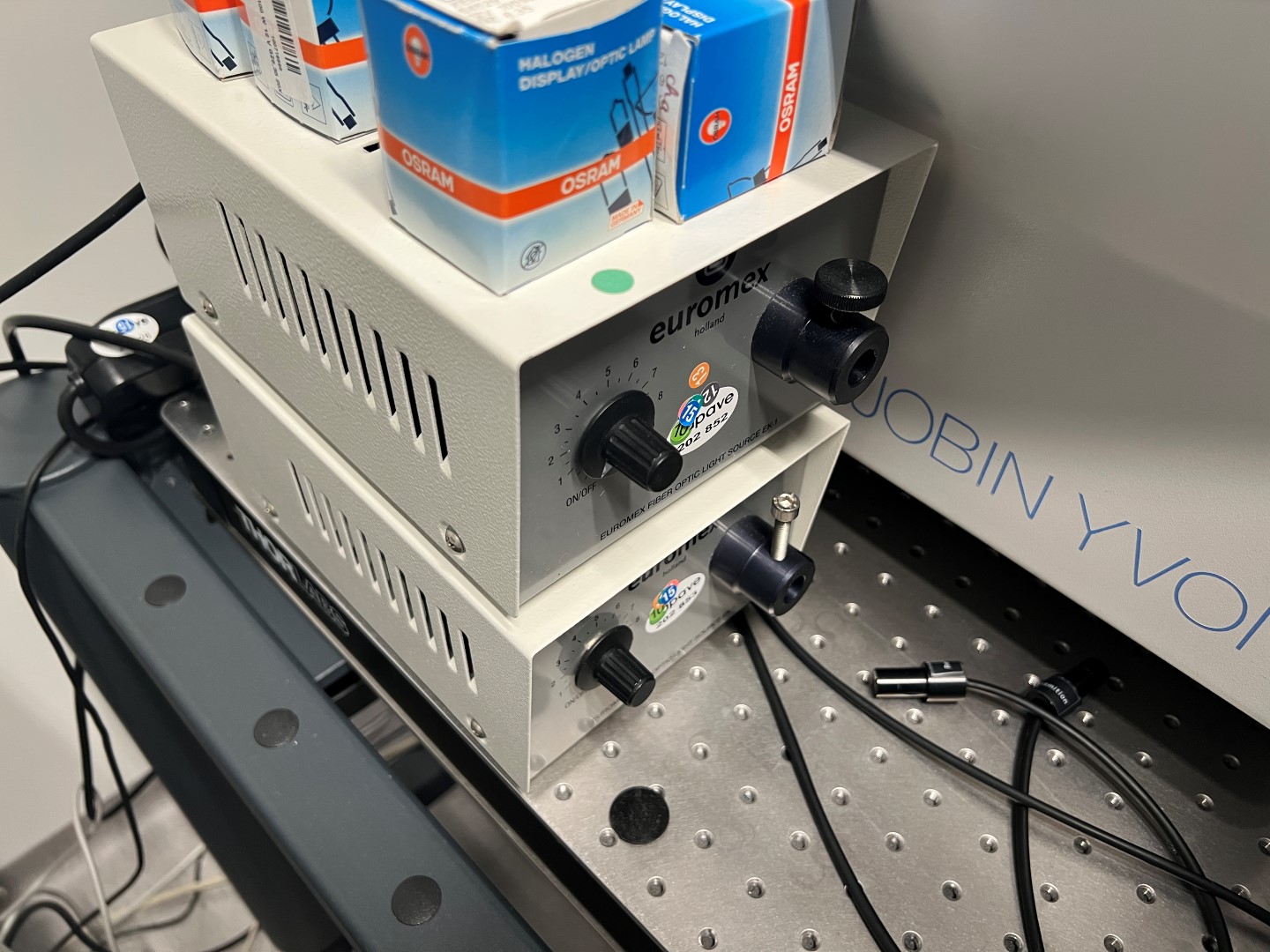

2× Euromex Holland fiber optic light sources (halogen, variable intensity 1–8). OSRAM spare halogen display/optic lamps included (multiple boxed units).

SUPPORT
ThorLabs Nexus optical breadboard / vibration-isolation table included.

ACCESSORIES INCLUDED
- HORIBA Synapse CCD detector
- Laser Quantum laser PSU
- Melles Griot laser controller
- Olympus BX integrated microscope
- 2× Euromex fiber optic light sources
- OSRAM spare halogen lamps (boxed, multiple units)
- Motorized XYZ stage
- Joystick stage controller
- ThorLabs Nexus optical table
- All original interconnect cables
- Original product documentation / manuals

The system has been decontaminated (certificate available). Sold as-is, where is. Buyer responsible for deinstallation, packing, and shipping. Viewing strictly by appointment. On-site demonstration available upon request.
