BRUKER ASCEND 600 - RMN Spectrometer (2014)

Bruker Ascend 600 MHz NMR Spectrometer System (AVANCE III HD)

OVERVIEW

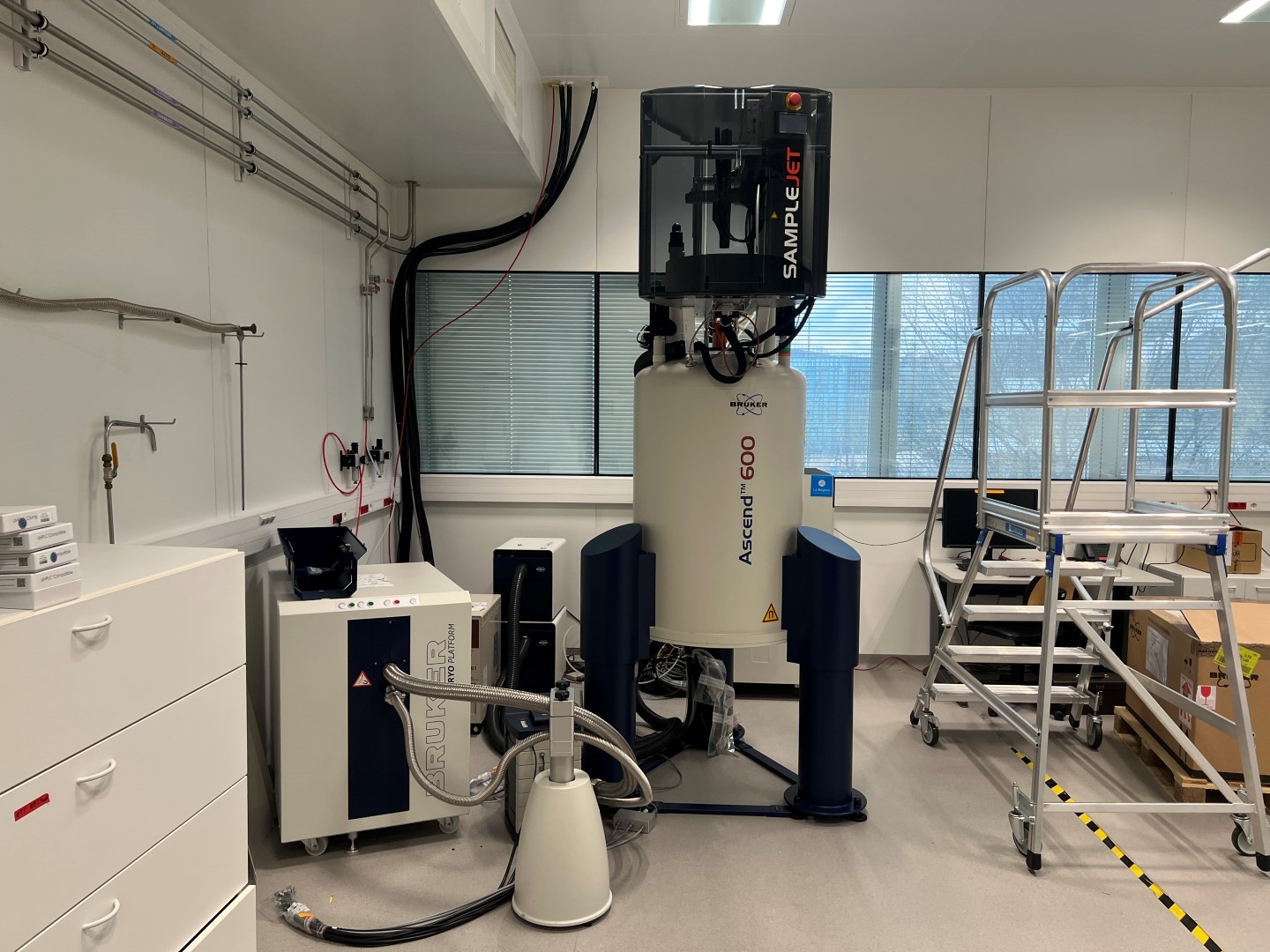

Complete 600 MHz (14.1 T) high-field NMR spectrometer system manufactured by Bruker BioSpin AG (Fällanden, Switzerland), year of construction 2014. The system is offered as a full working ensemble including magnet, console, autosampler, cryoprobes, preamplifier, cryo platform, helium recondenser, temperature control units, all cables, and associated furniture.

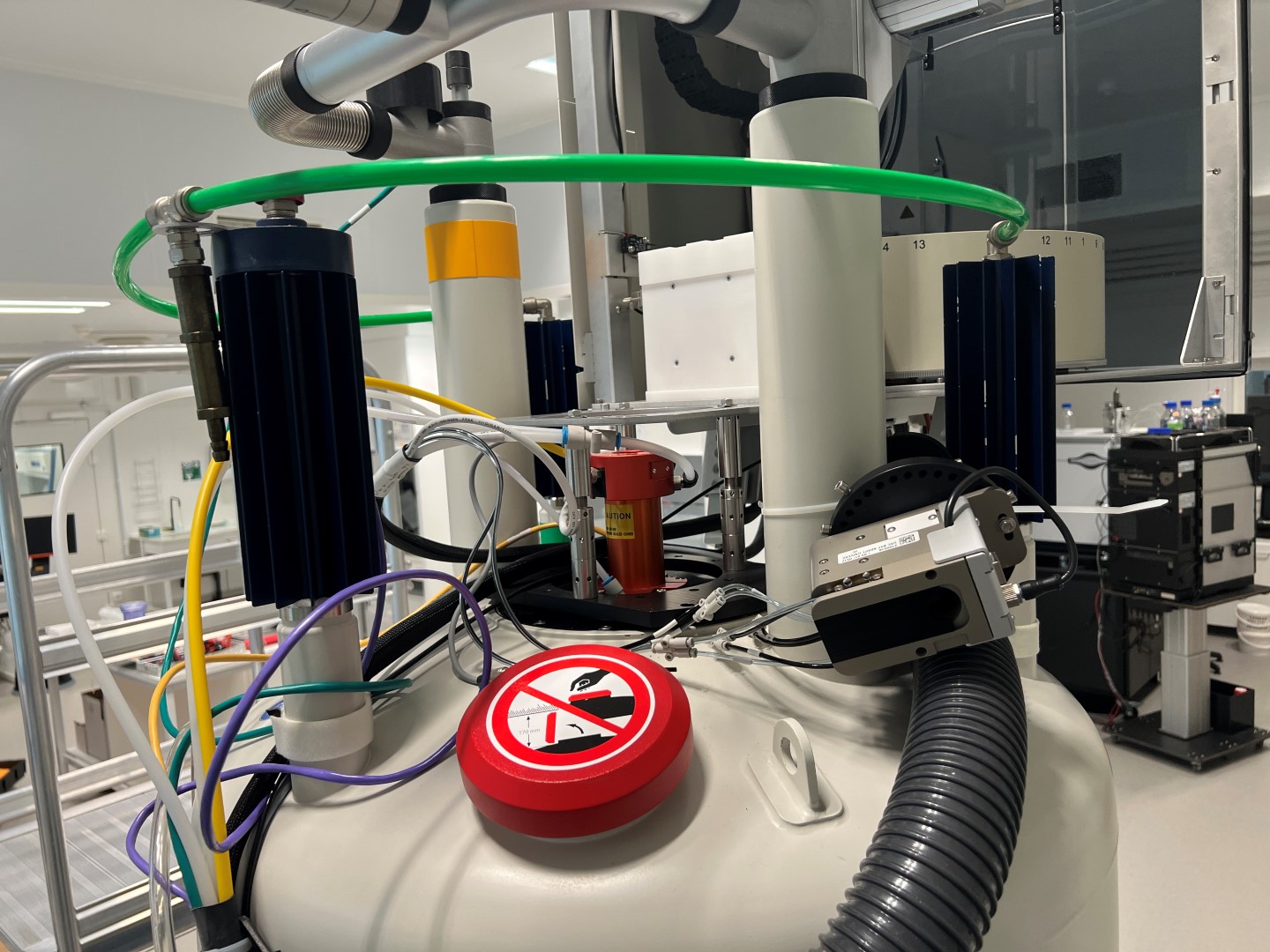

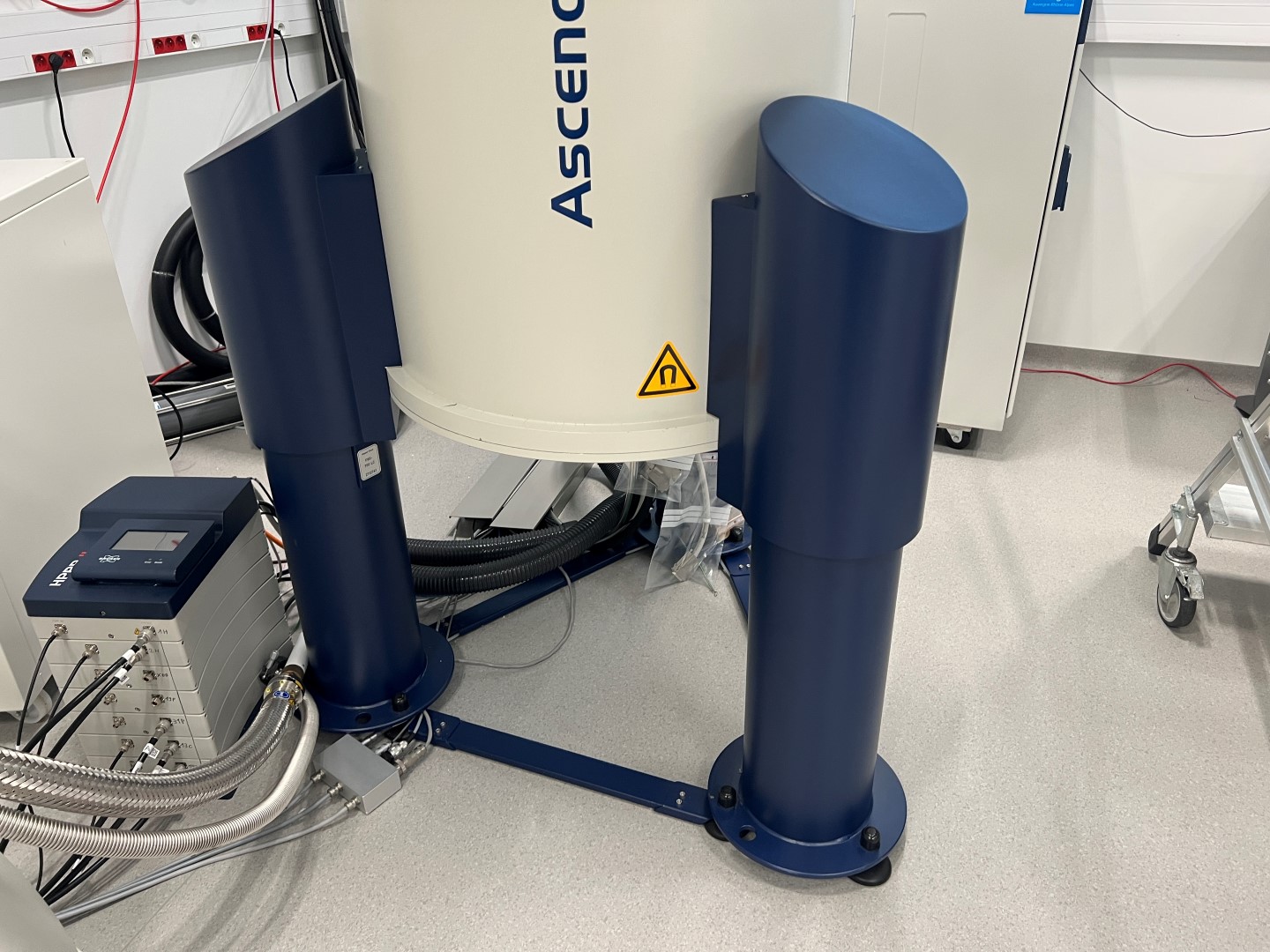

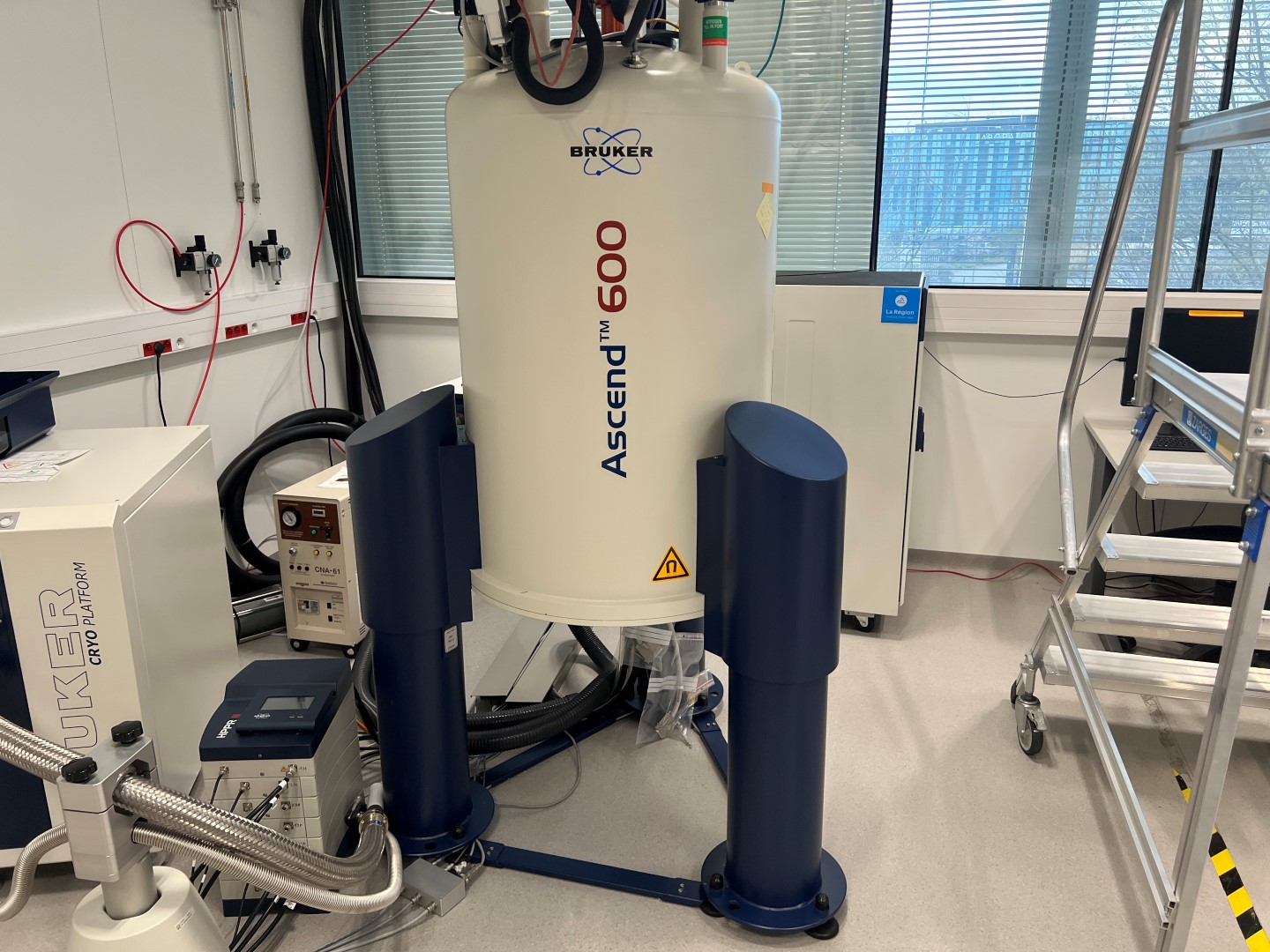

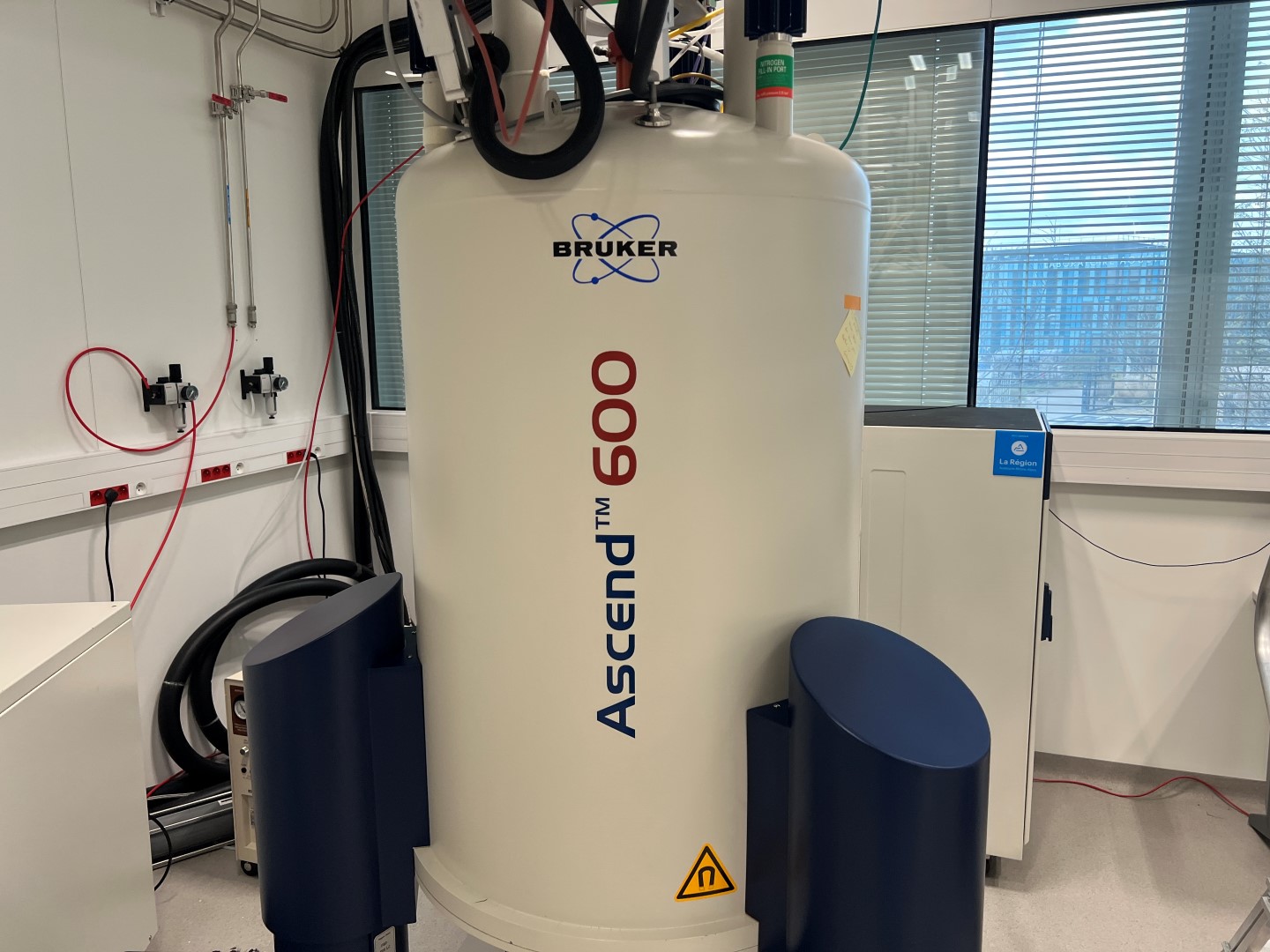

MAGNET

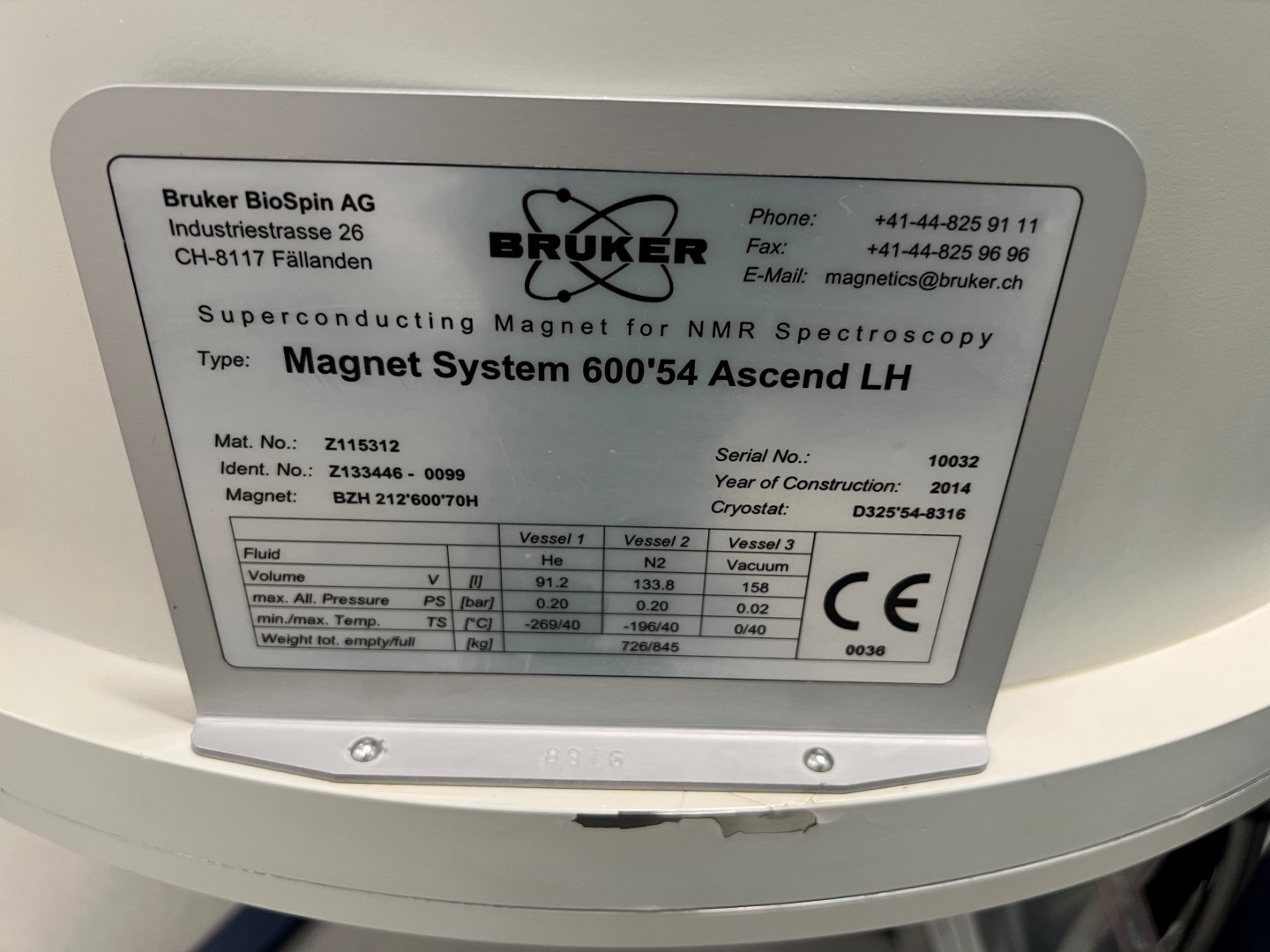

Model: Magnet System 600'54 Ascend LH
Serial No.: 10032 | Mat. No.: Z115312 | Ident. No.: Z133446-0099
Magnet designation: BZH 212'600'70H | Cryostat: D325'54-8316
He vessel: 91.2 L | N₂ vessel: 133.8 L | Vacuum vessel: 158 L
Weight (empty / full): 726 / 845 kg

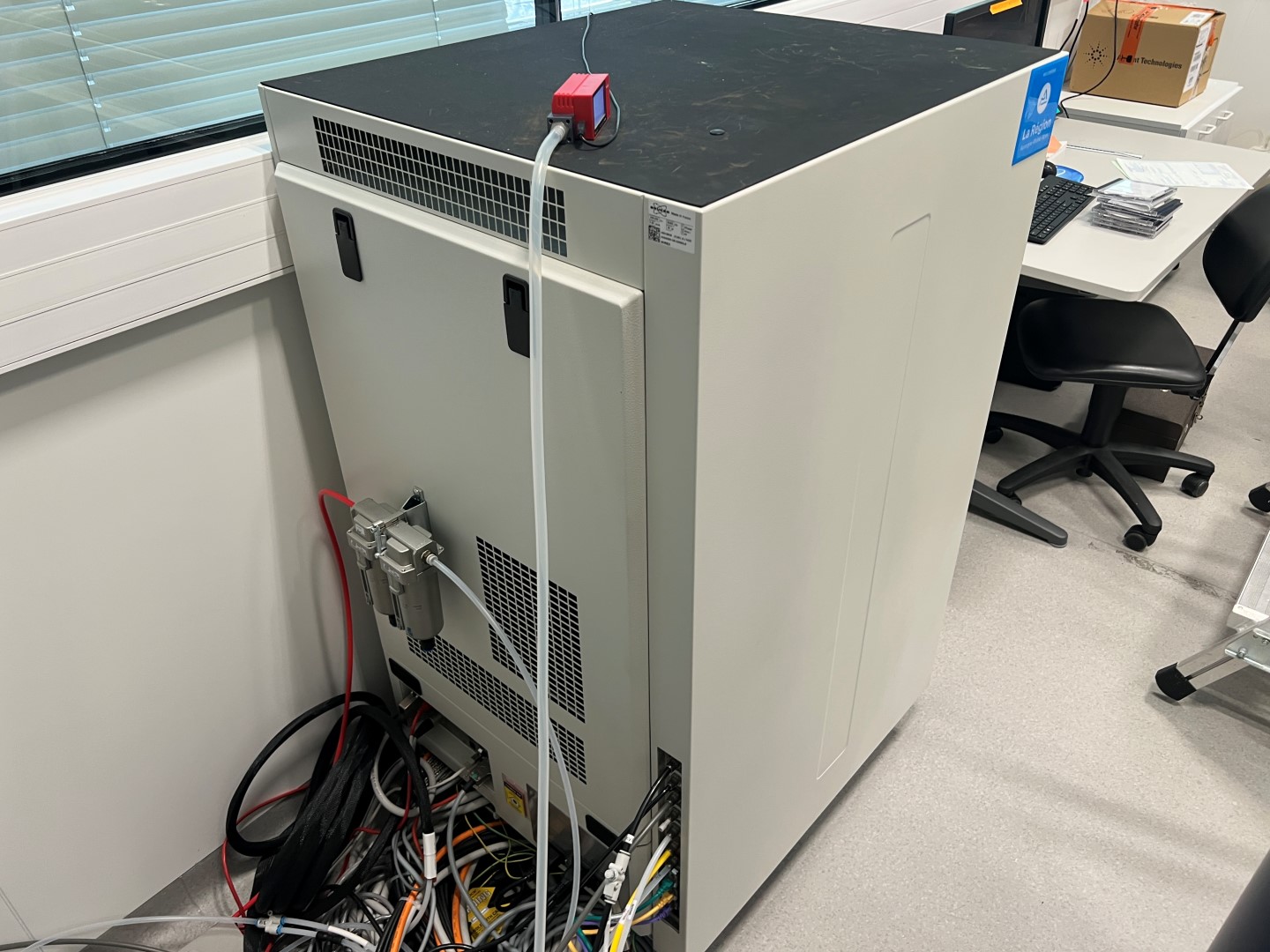

CONSOLE

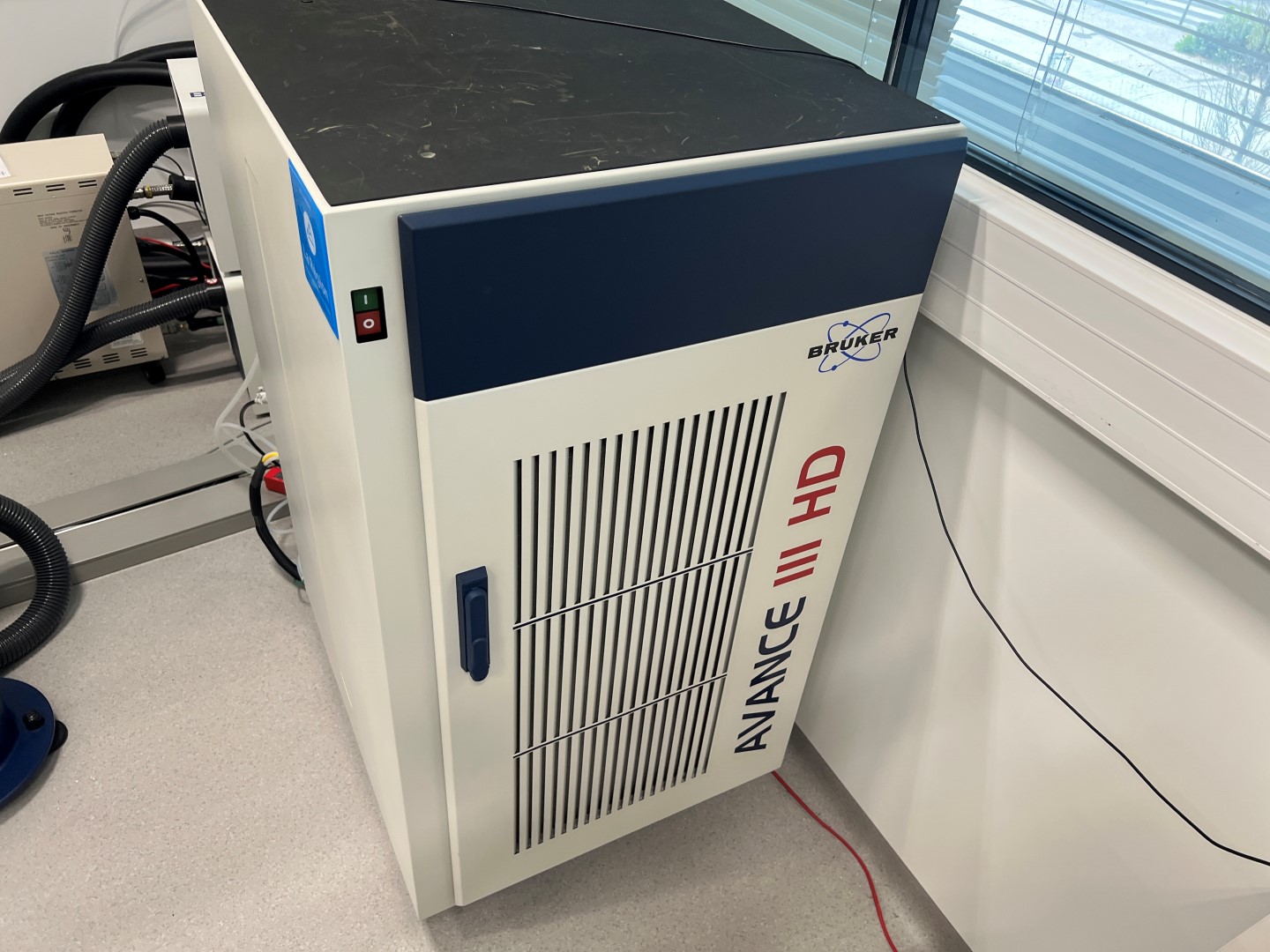

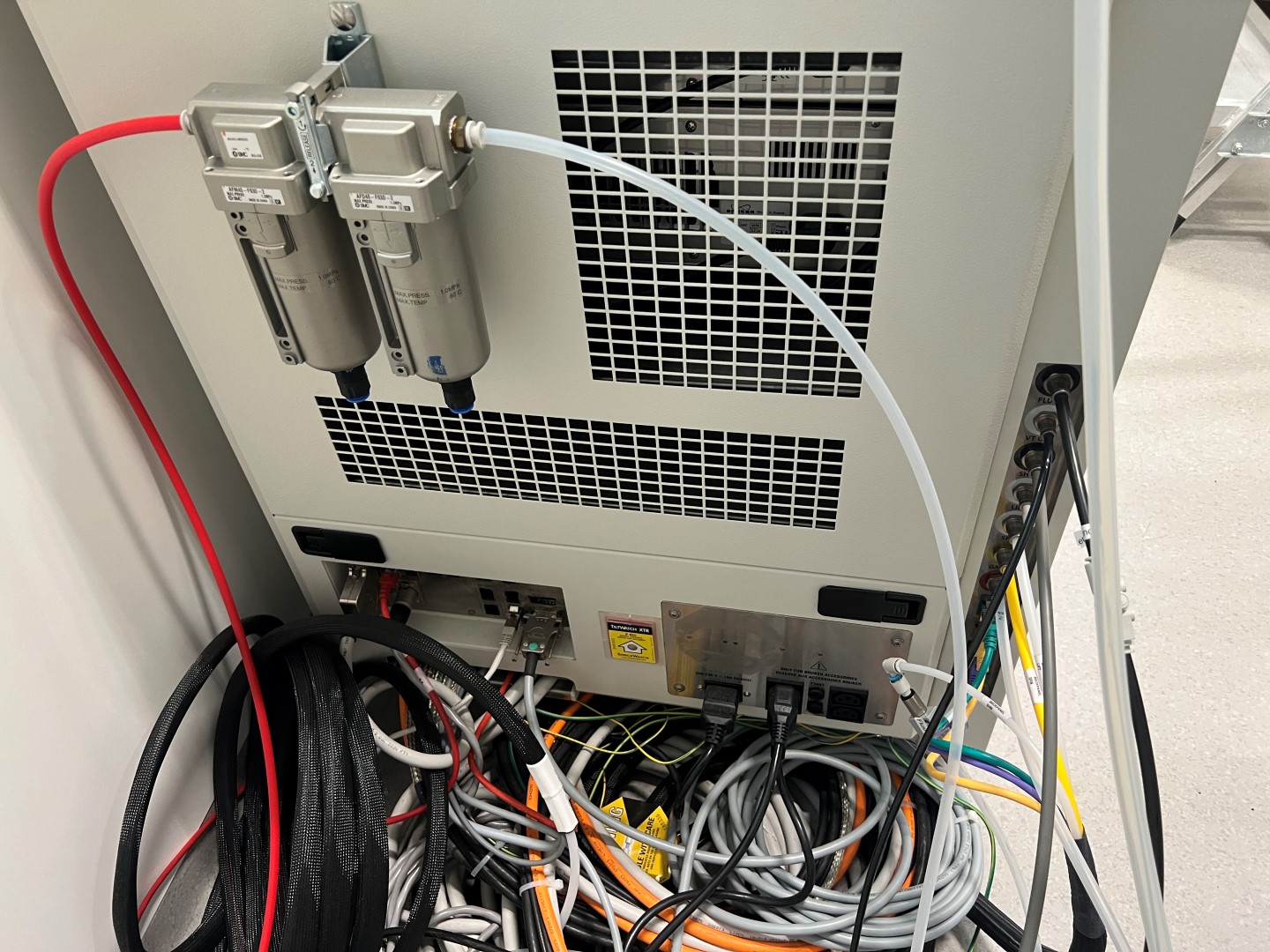

Bruker AVANCE III HD

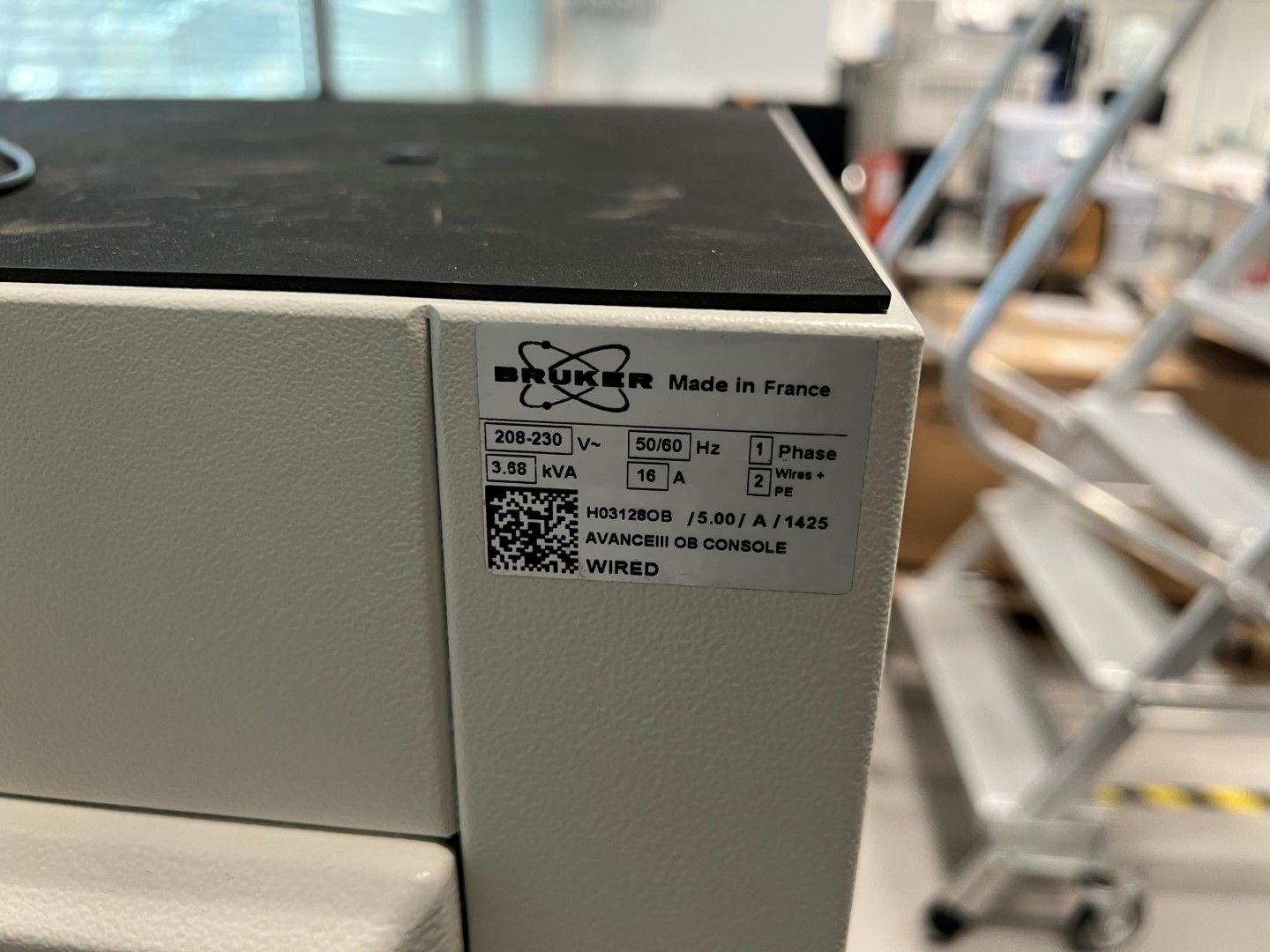

Ref.: H03128OB / 5.00 / A / 1425 (AVANCEIII OB Console, wired)
Made in France | 208–230 V~ / 50–60 Hz / 3.68 kVA / 16 A / 1 phase

AUTOSAMPLER

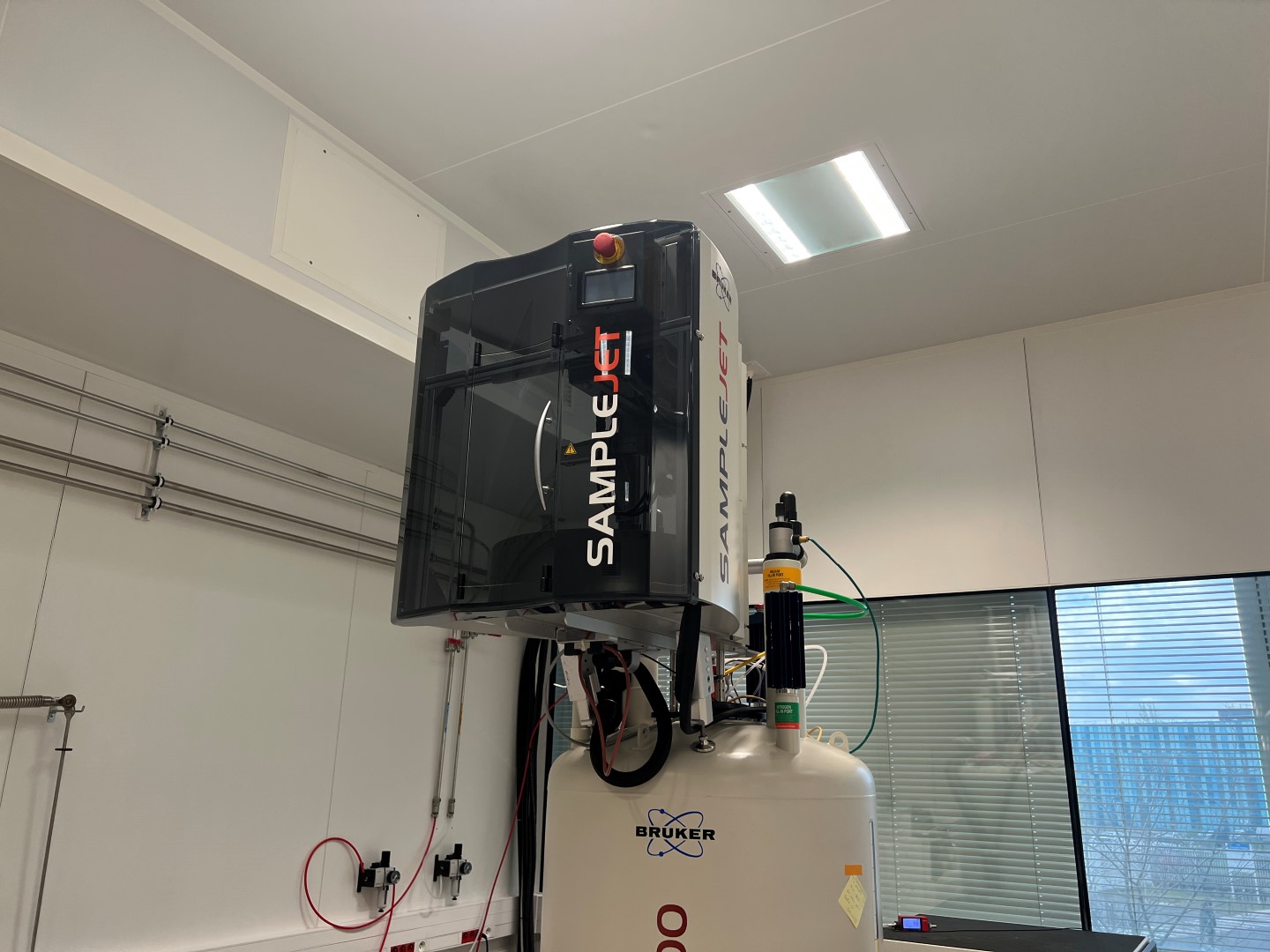

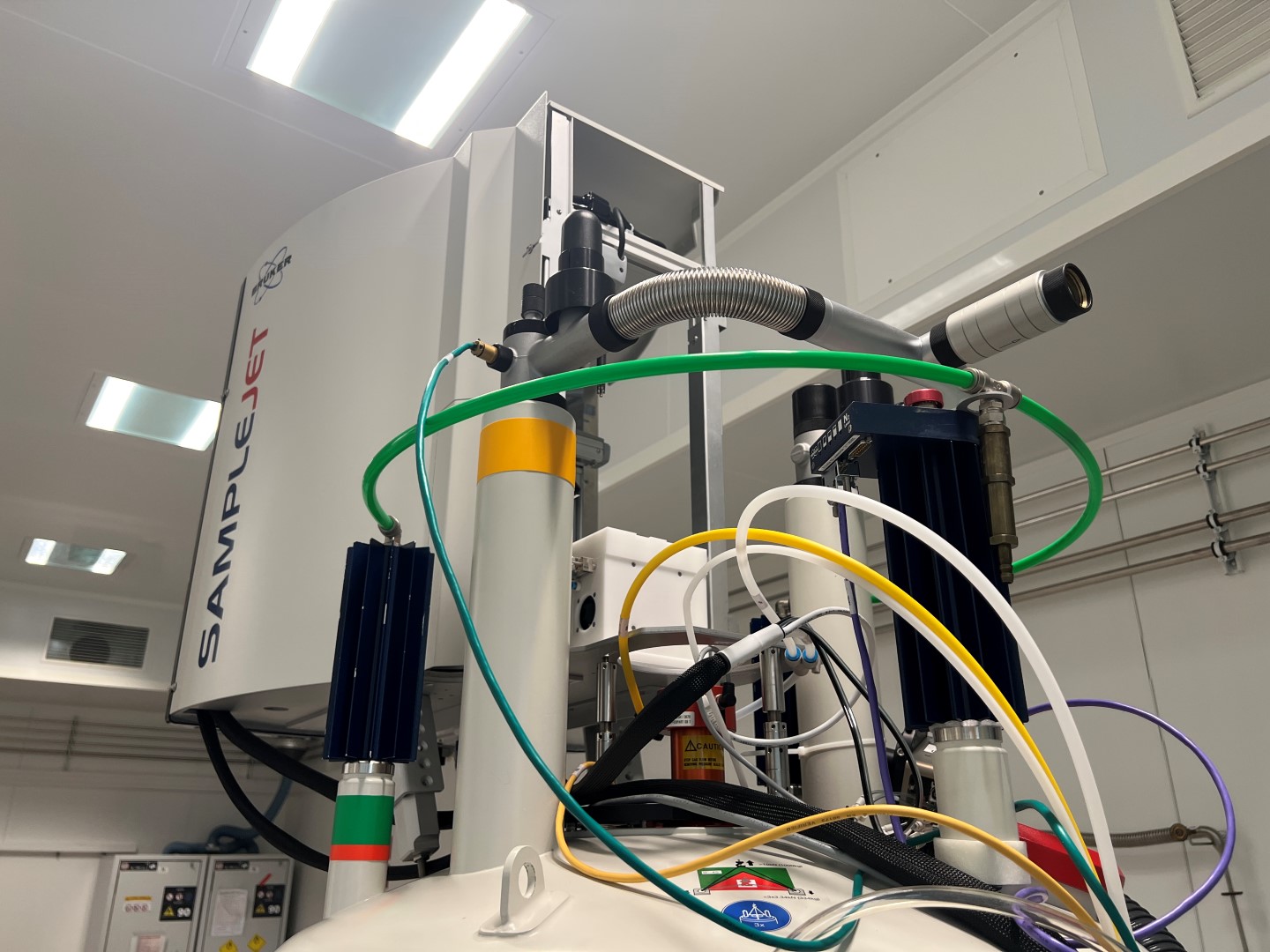

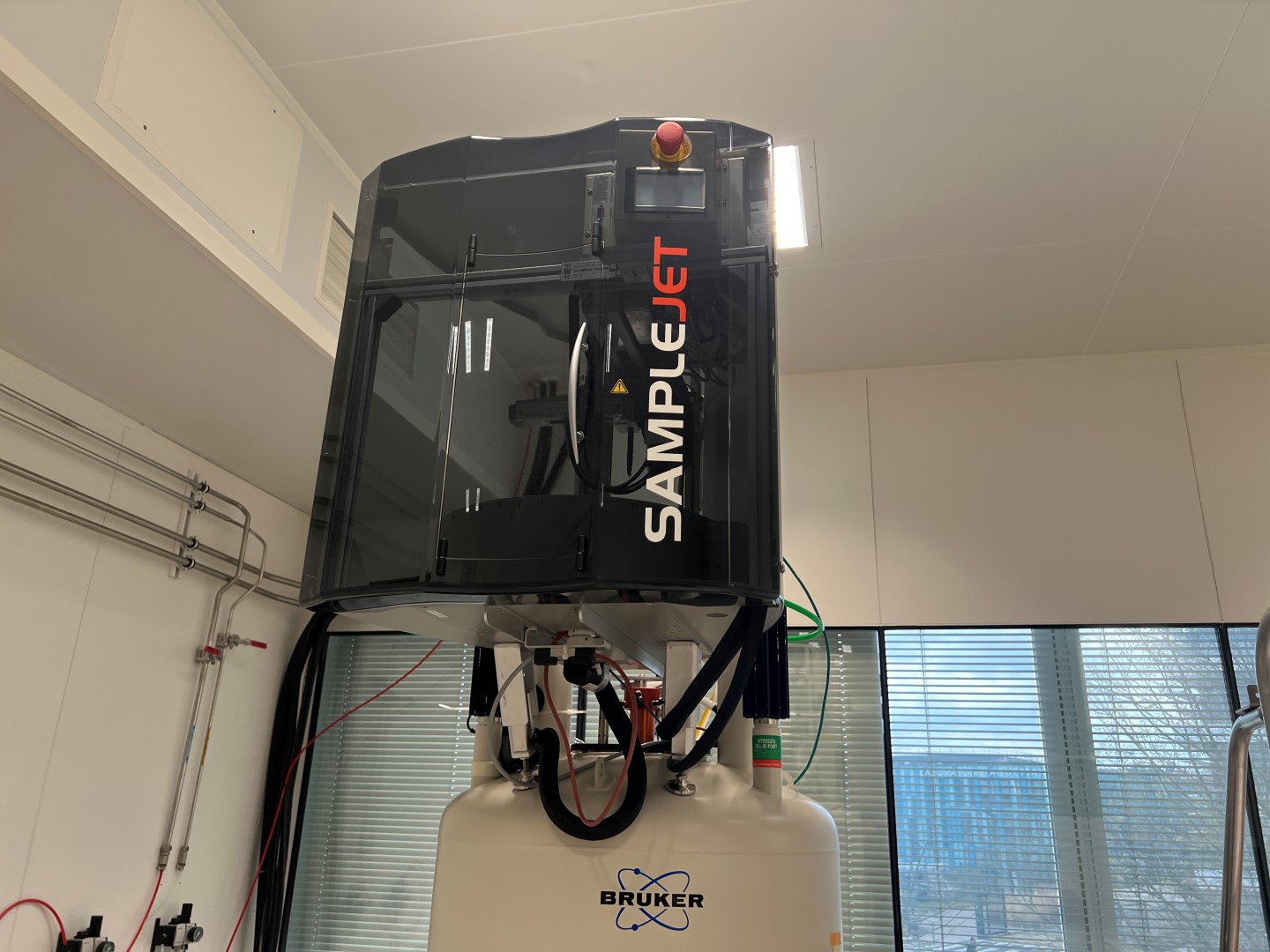

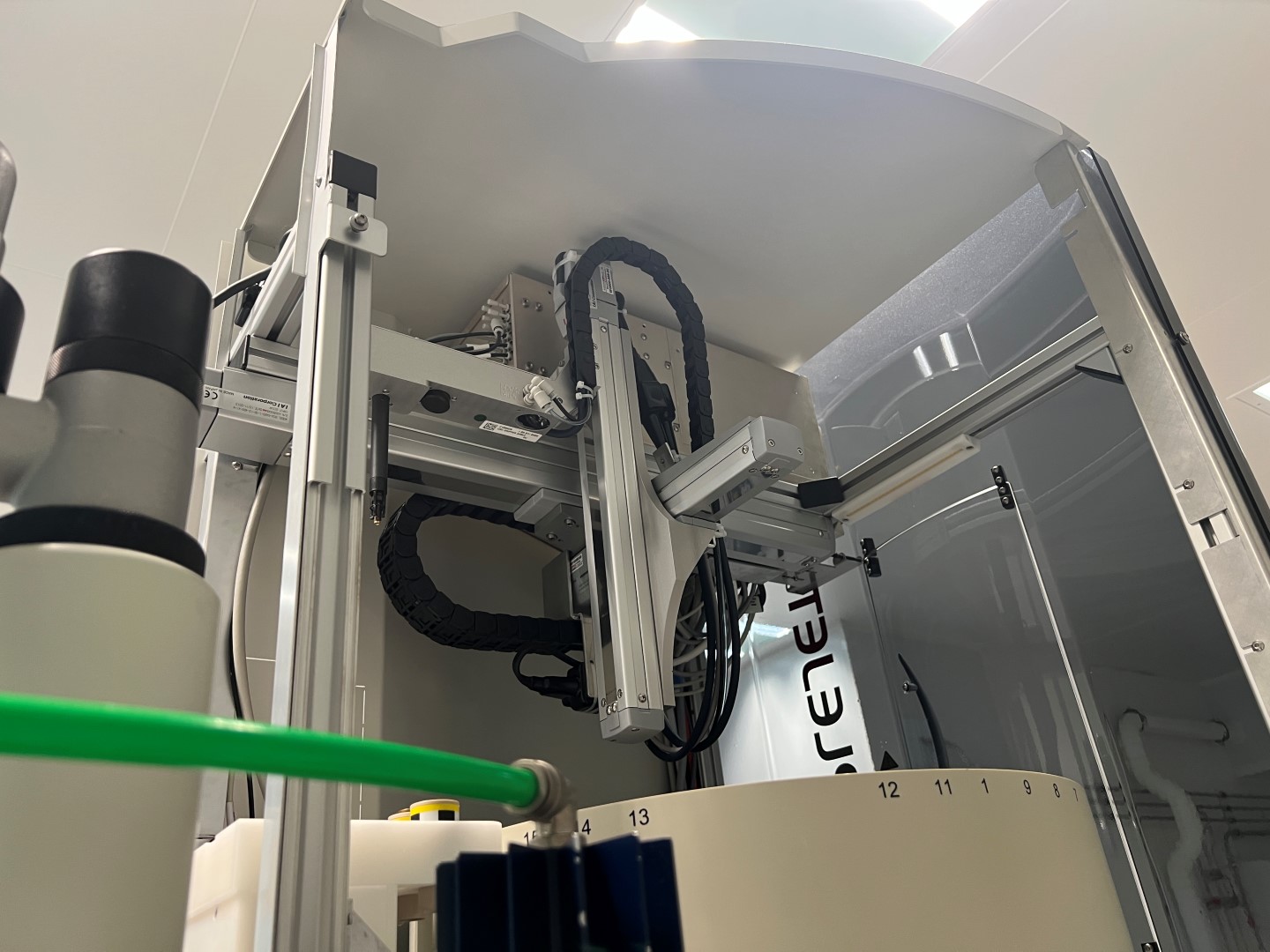

Bruker SampleJet — robotic high-throughput automated sample changer

PROBES (3 probes included)

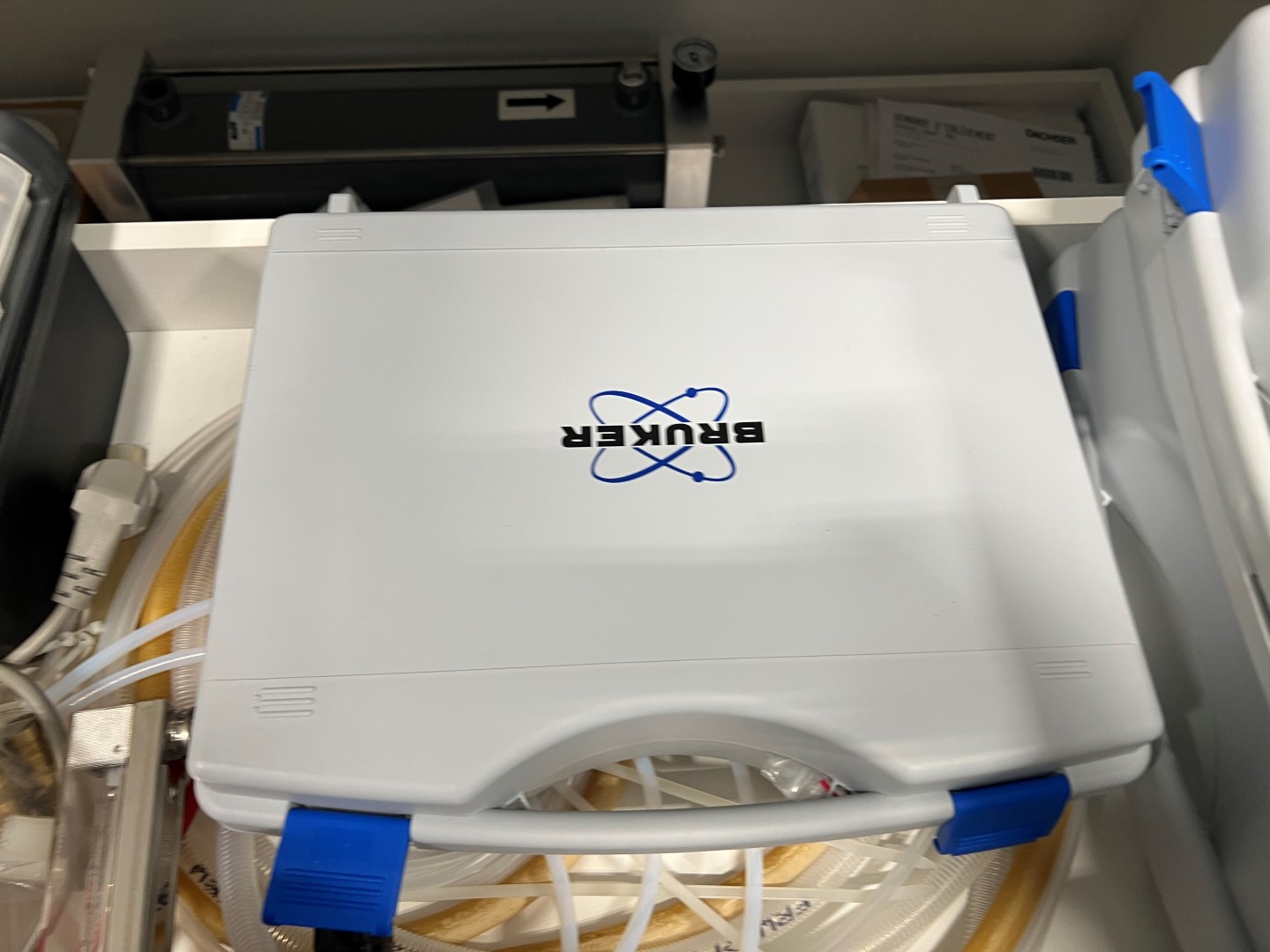

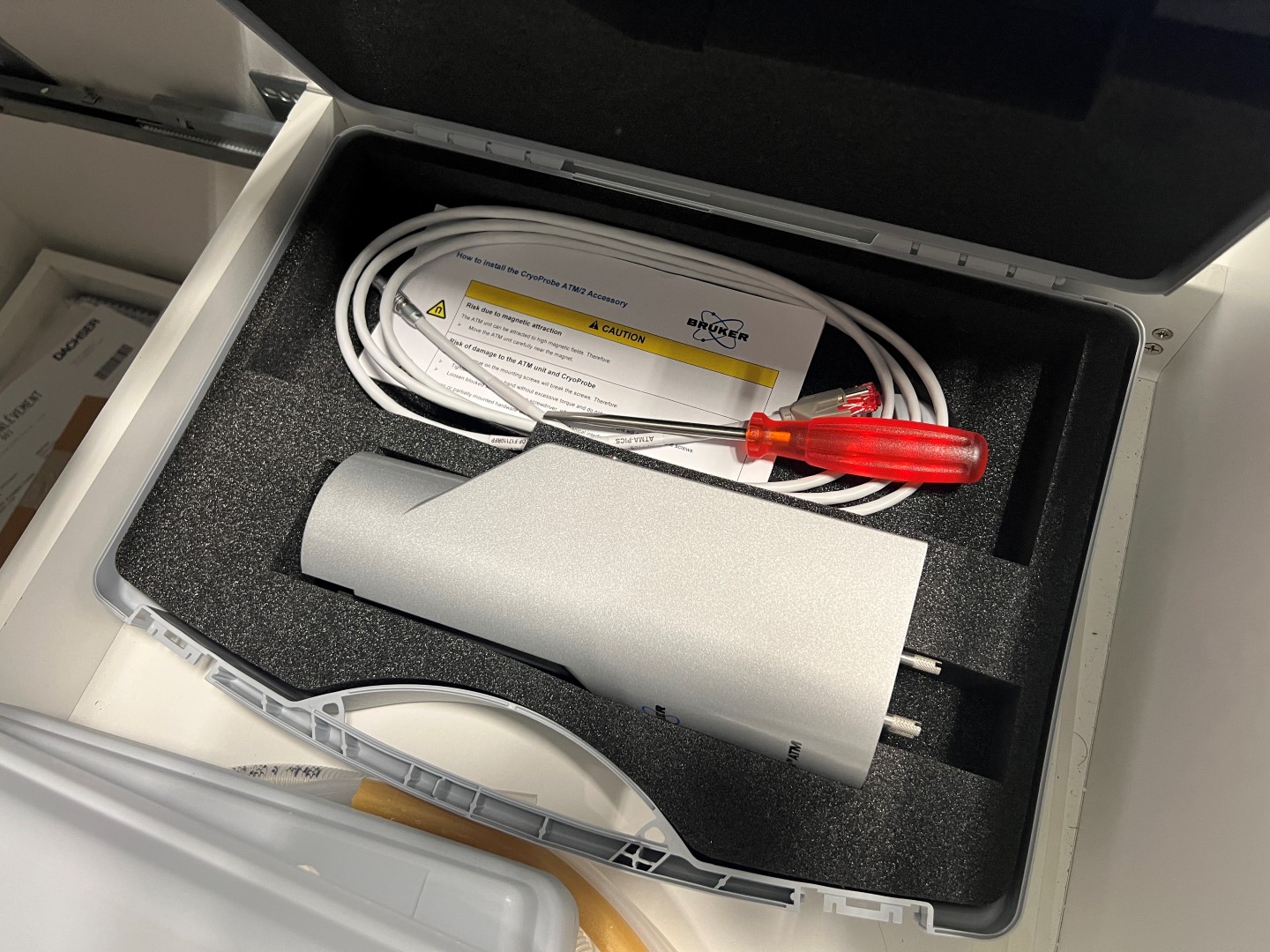

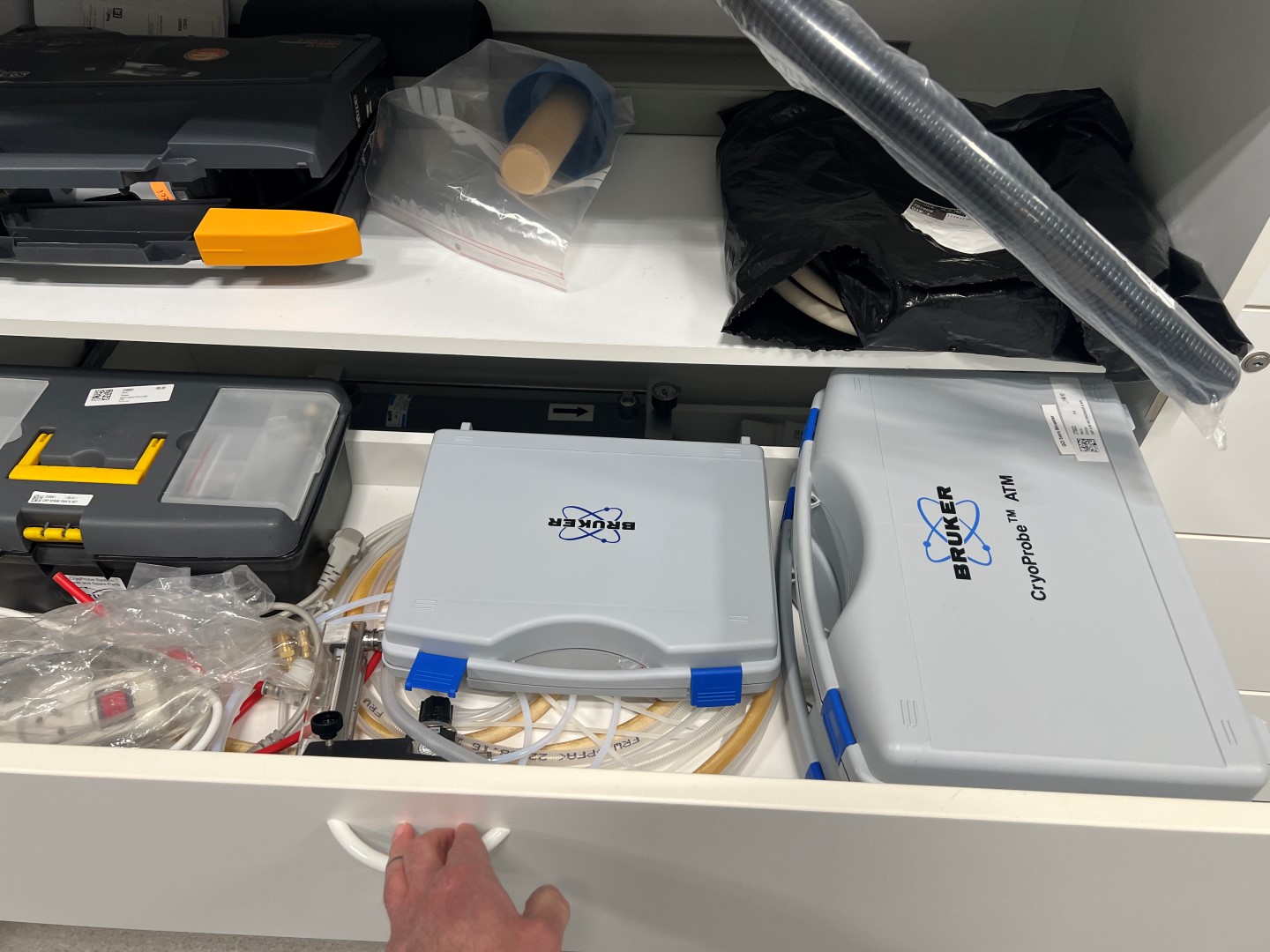

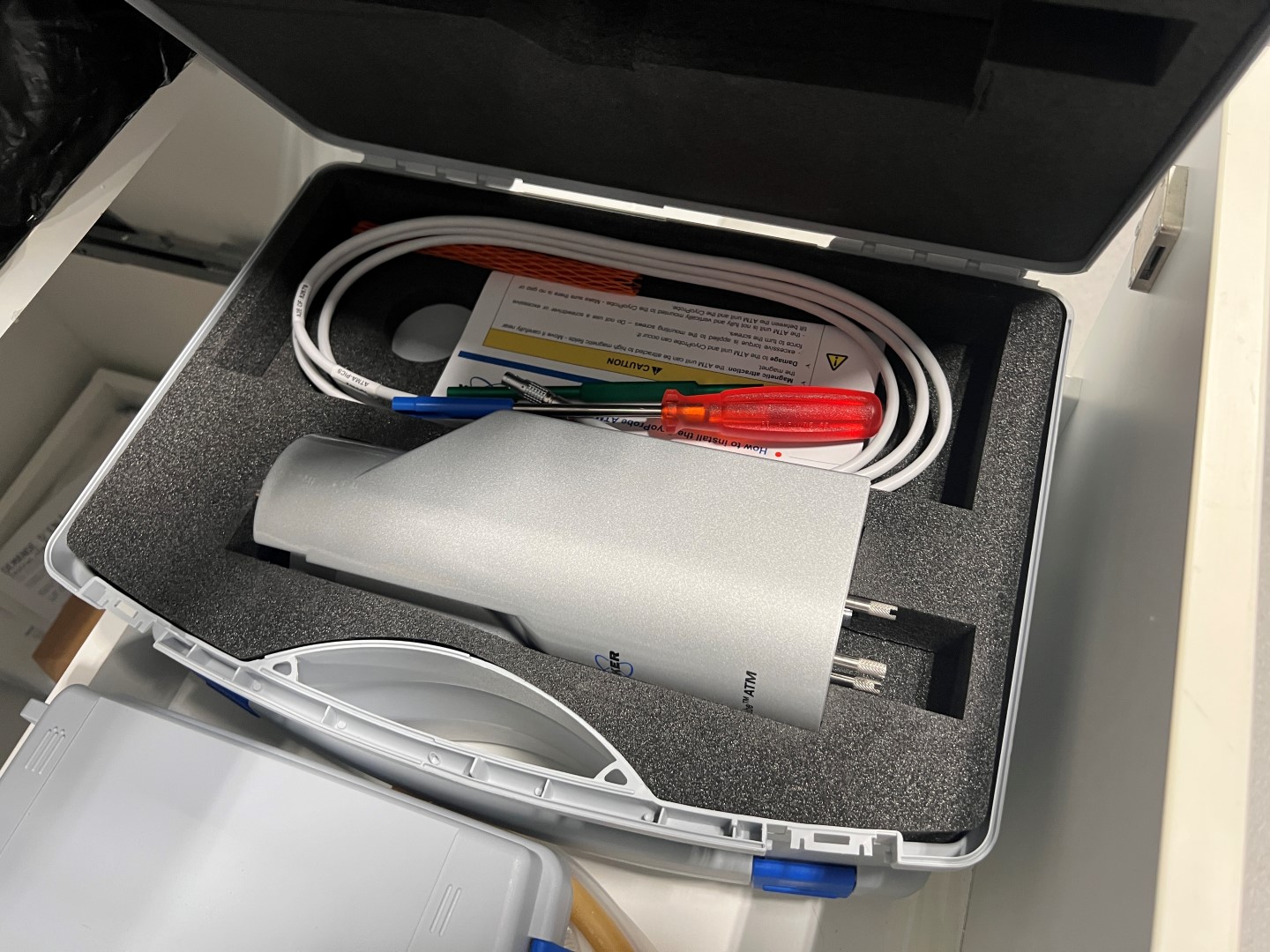

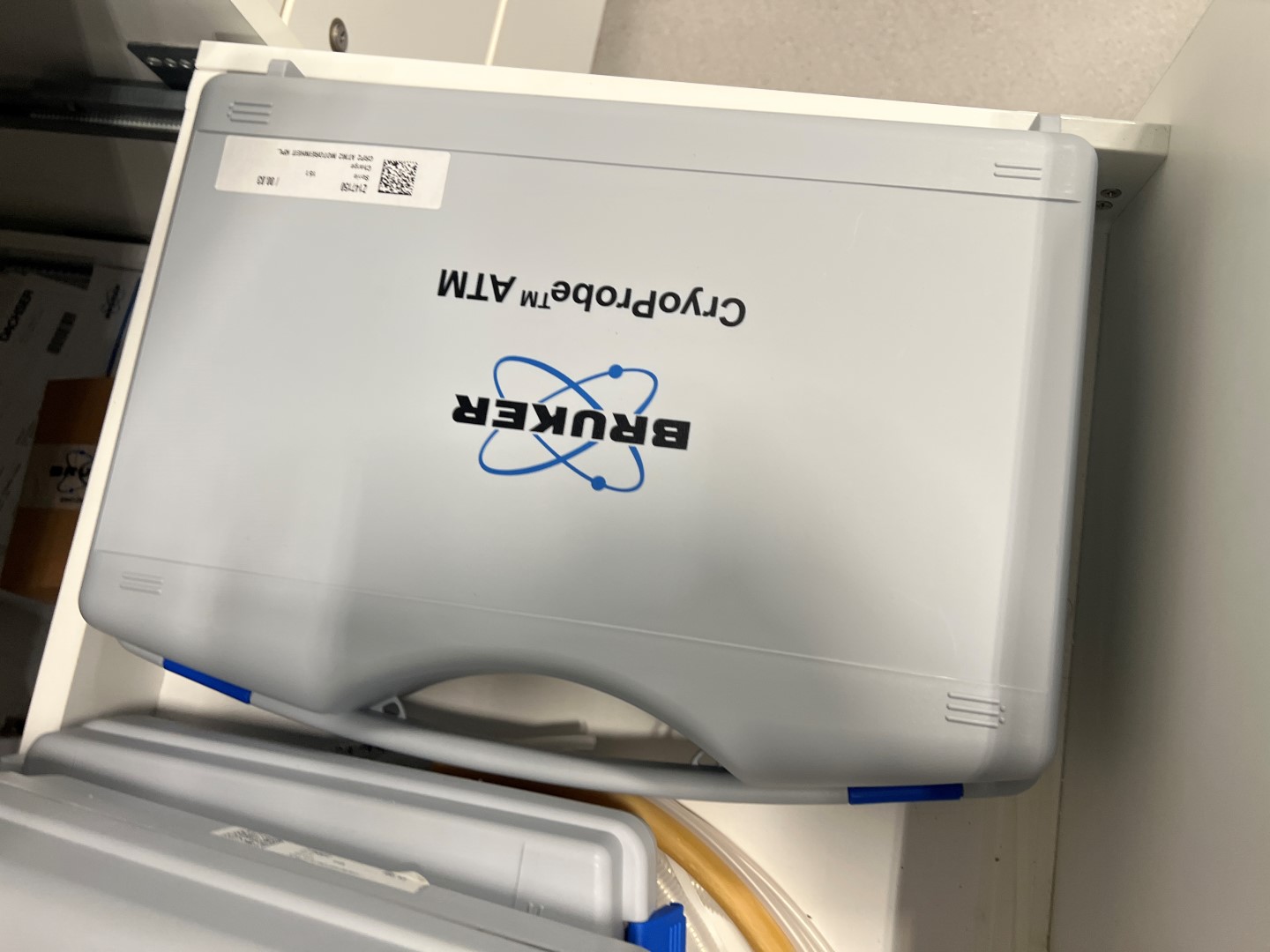

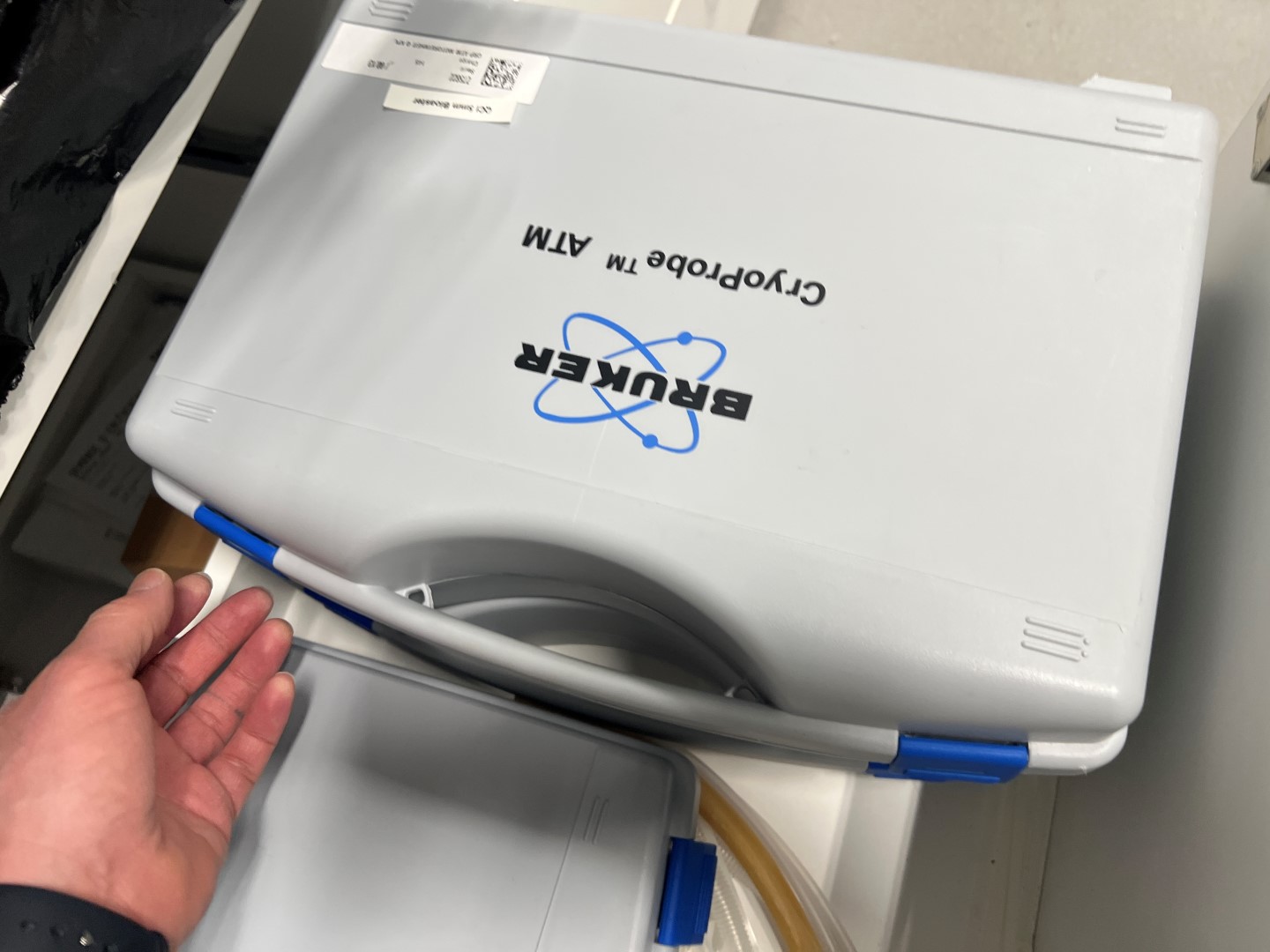

1. Bruker CryoProbe™ ATM — 5 mm cryogenic probe, transport case #1
2. Bruker CryoProbe™ ATM — 5 mm cryogenic probe, transport case #2

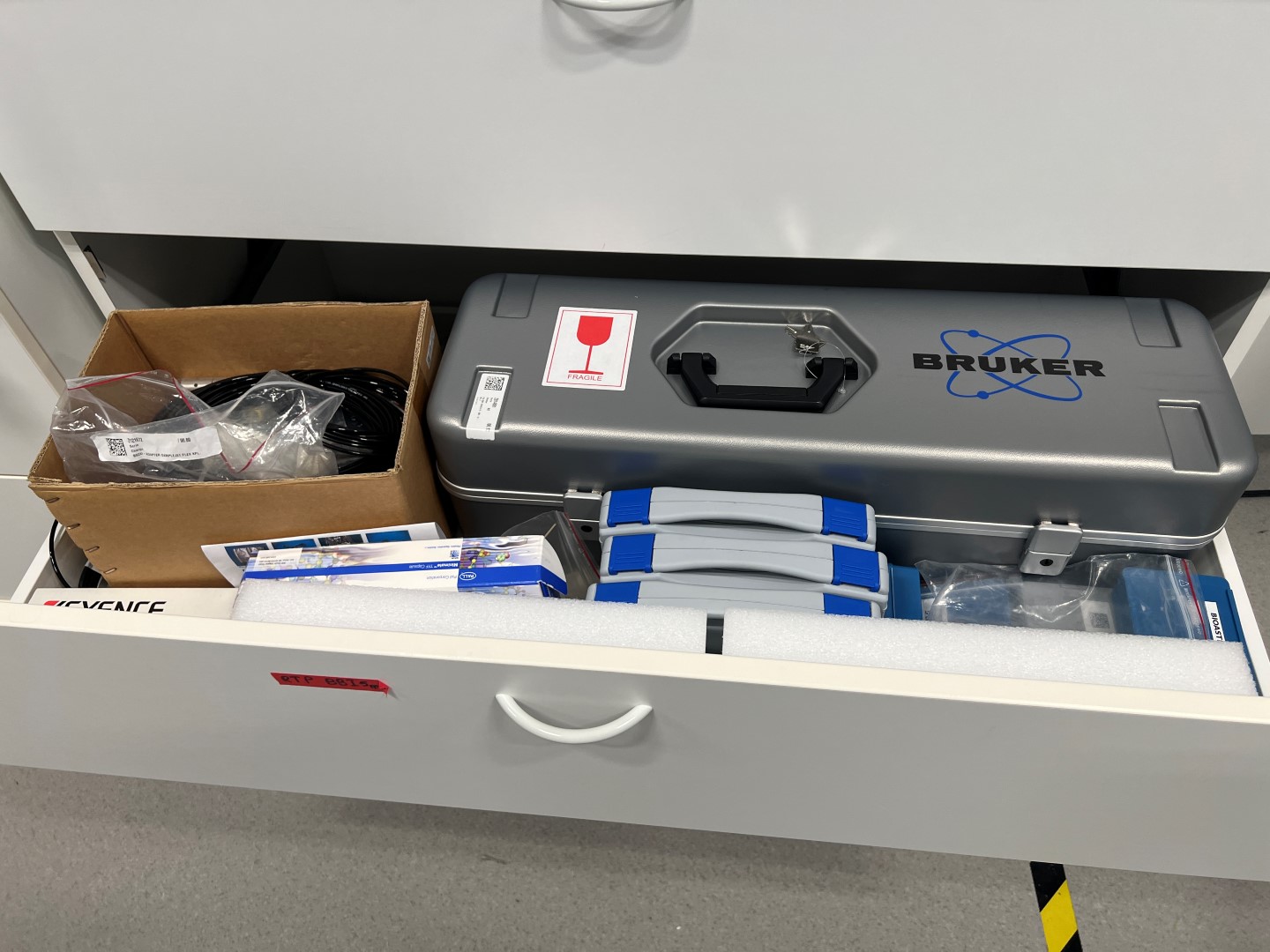

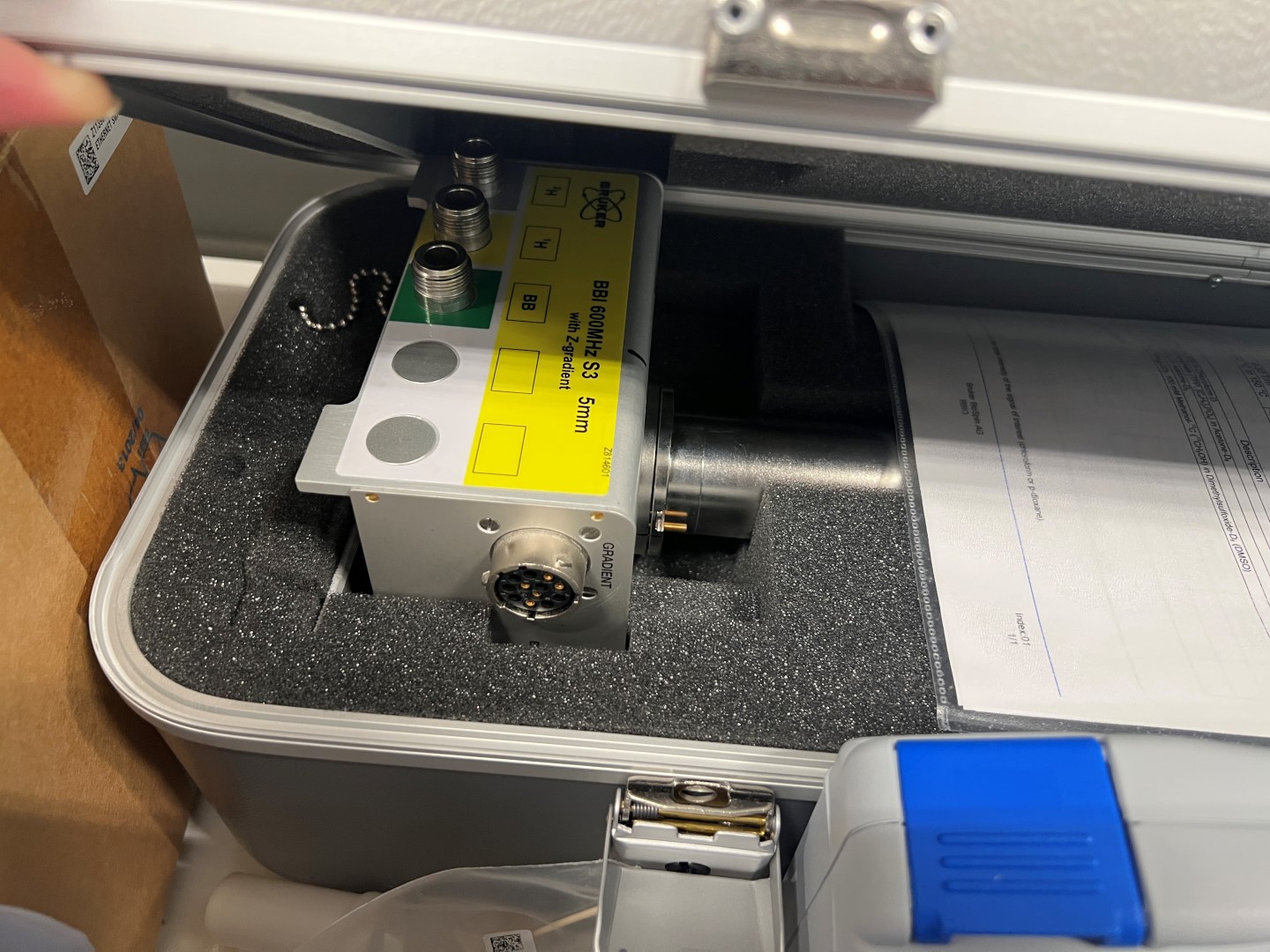

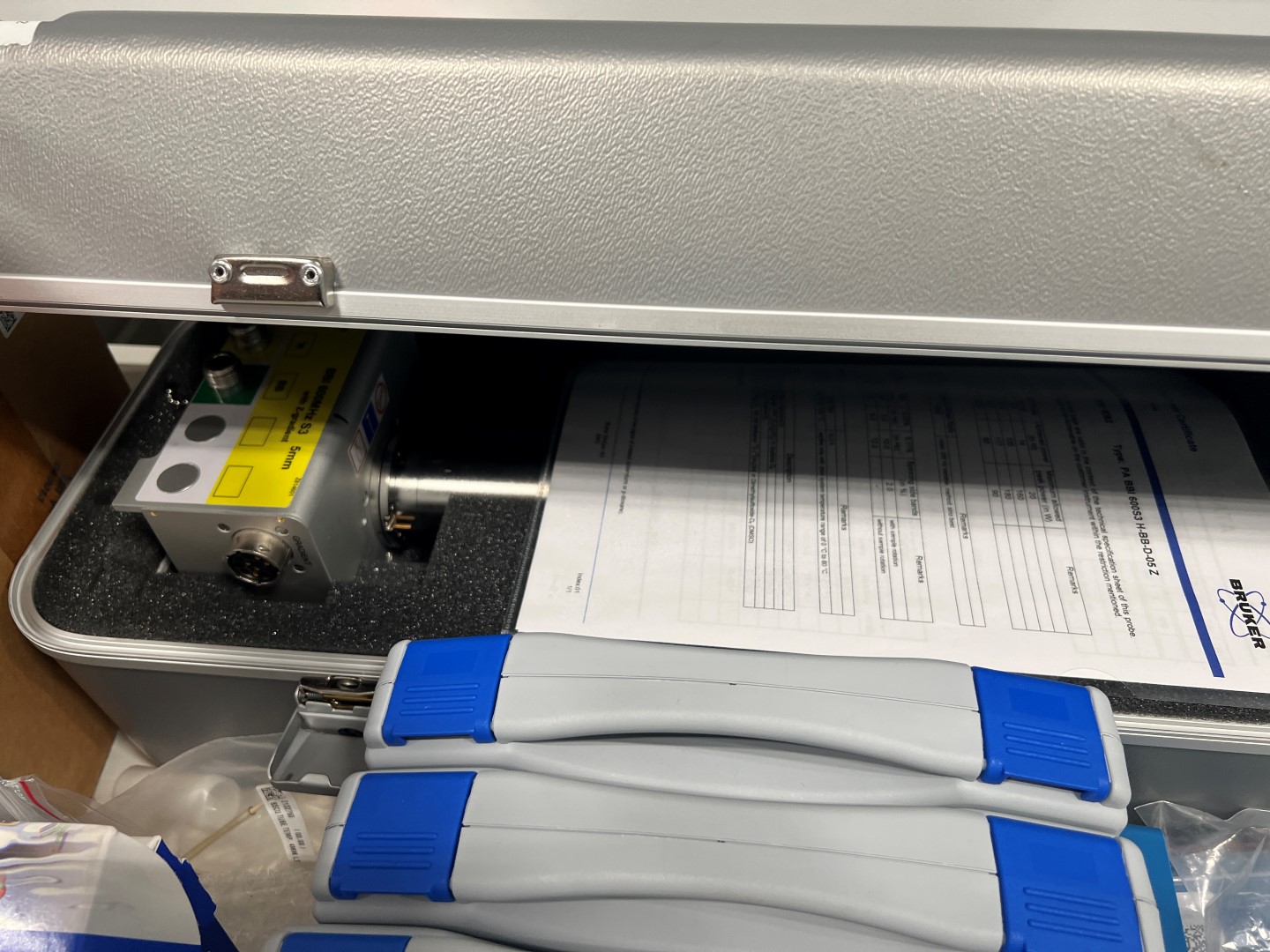

3. Bruker PA BBI 600S1 H-BB-D-05 Z — 5 mm Broadband Inverse (BBI) probe, hard transit case

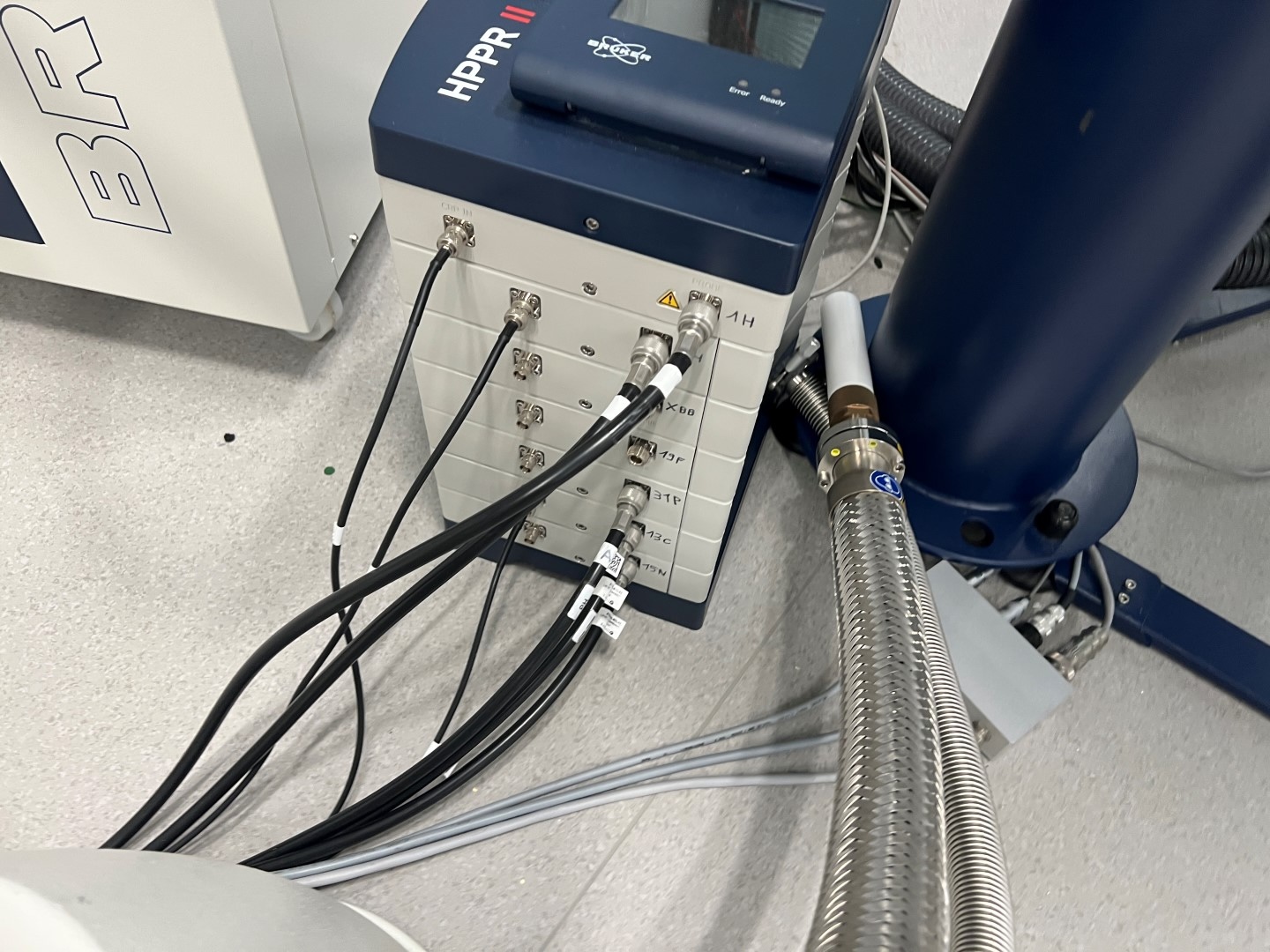

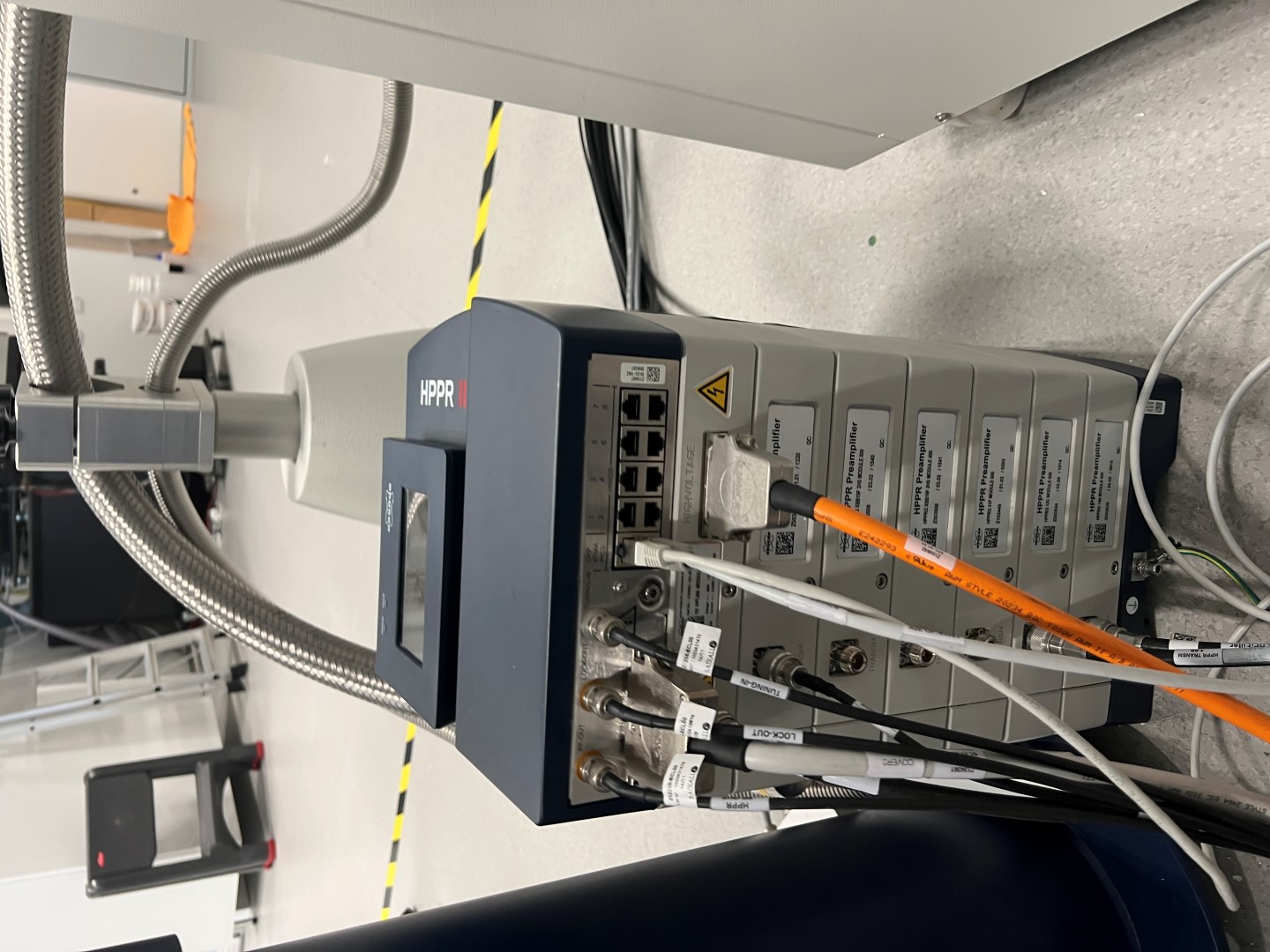

PREAMPLIFIER

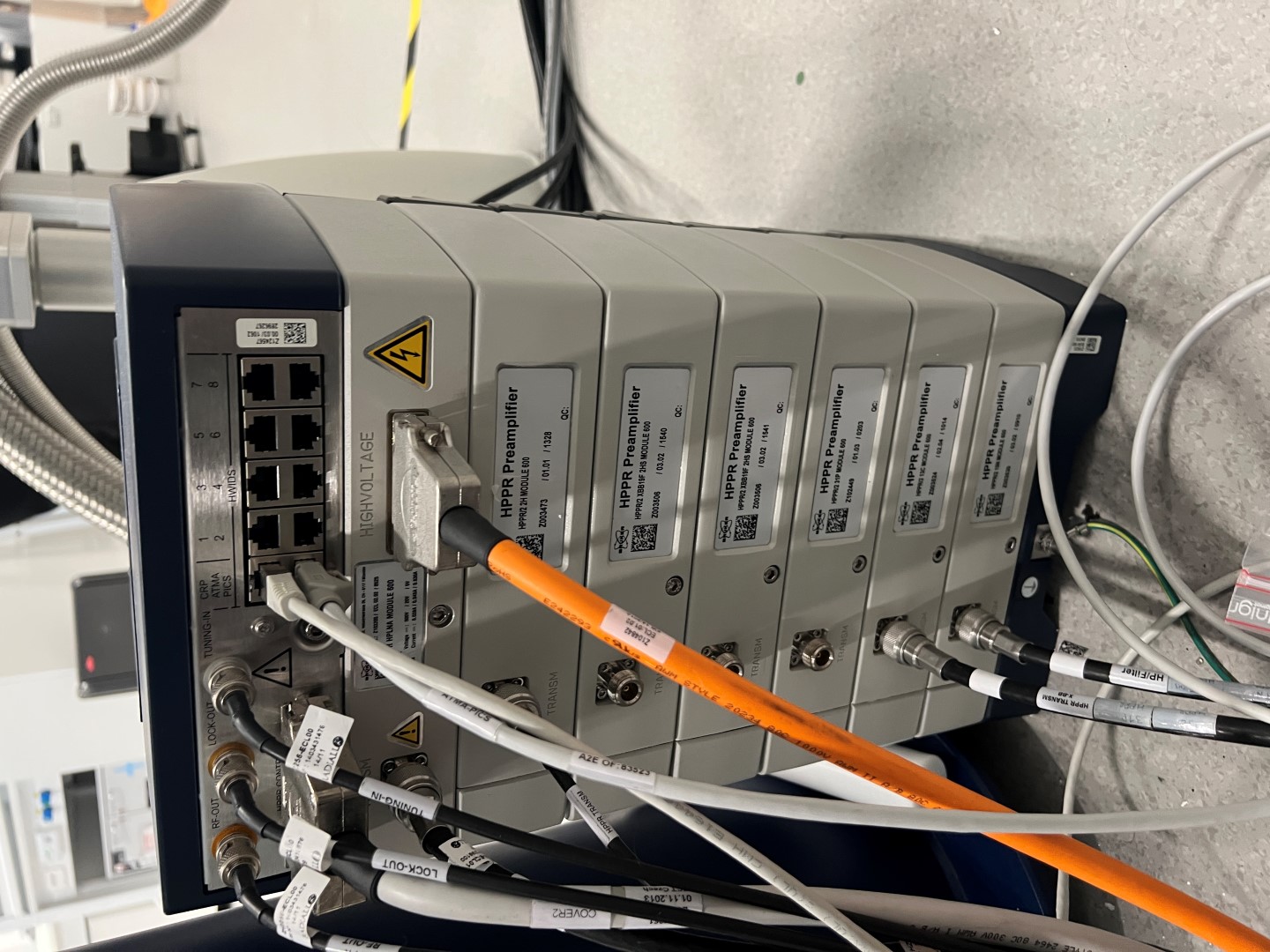

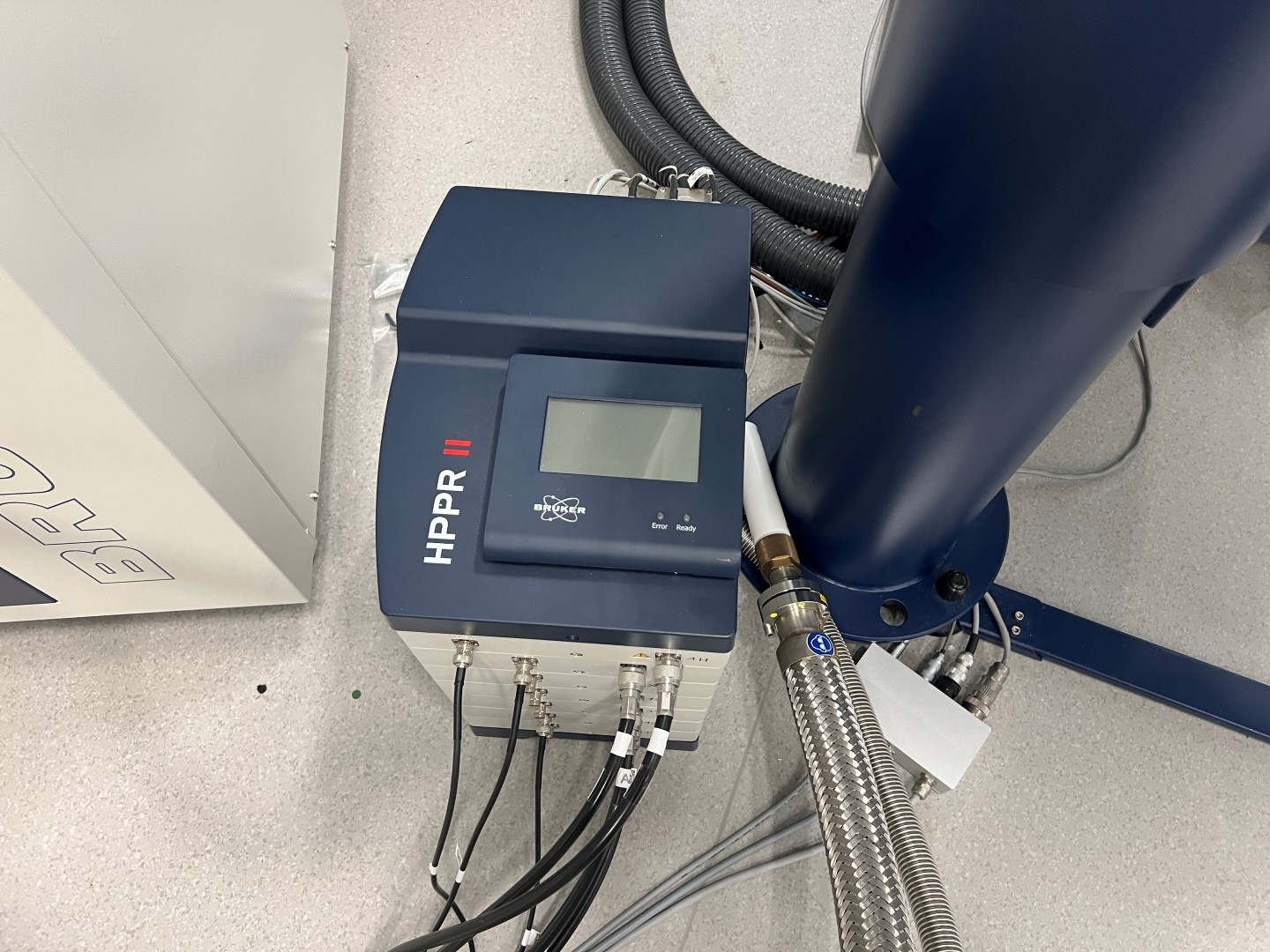

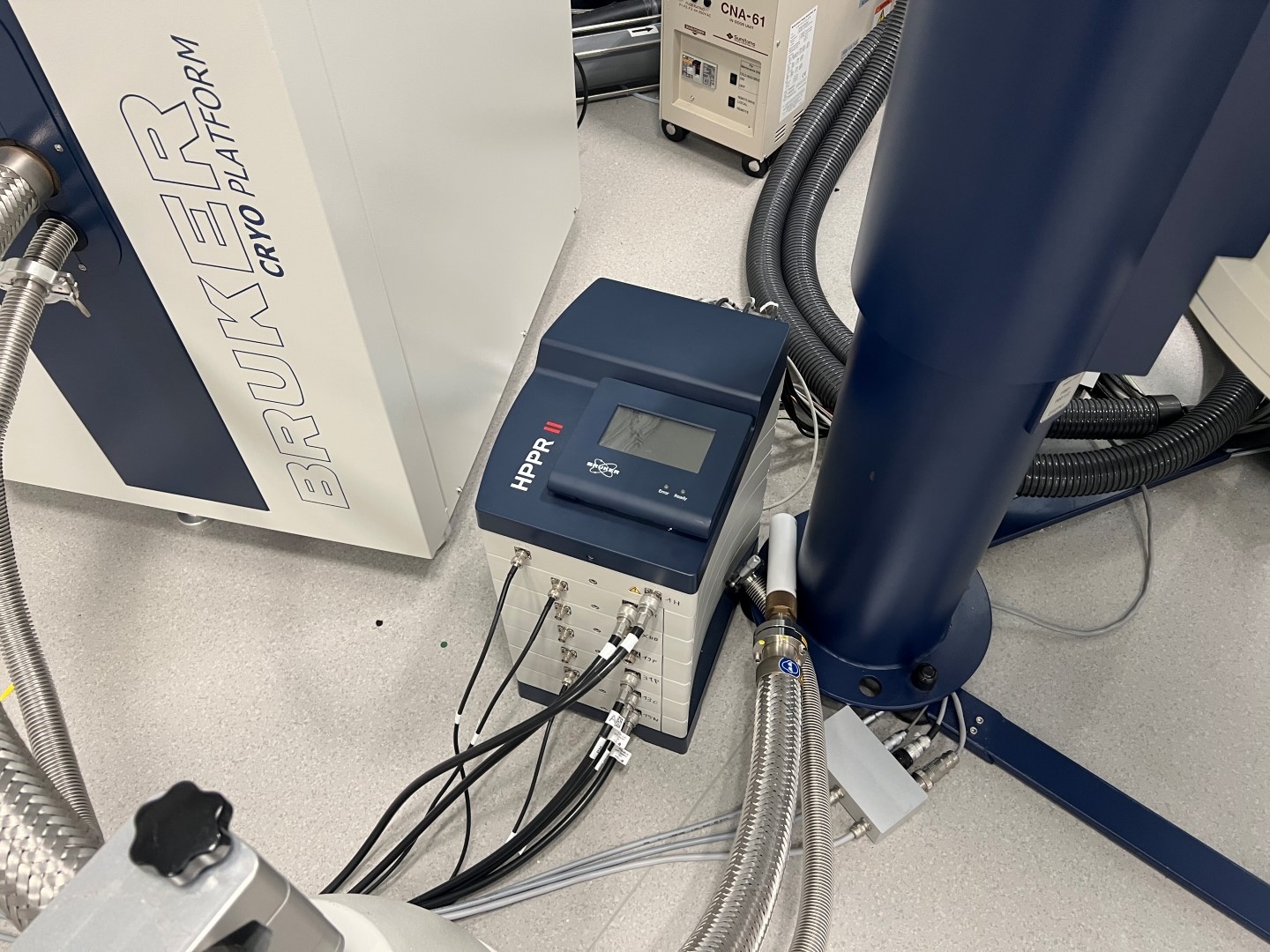

Bruker HPPR II chassis with 6 modules:
- HPPR/2 2H MODULE 600 (Z003473 / 01.01 / 1328)
- HPPR/2 XBB19F 2HS MODULE 600 (Z003506 / 03.02 / 1540)
- HPPR/2 XBB19F 2HS MODULE 600 (Z003506 / 03.02 / 1541)
- HPPR/2 31P MODULE 600 (Z102449 / 01.03 / 0203)
- HPPR/2 13C MODULE 600
- HPPR/2 19F MODULE 600

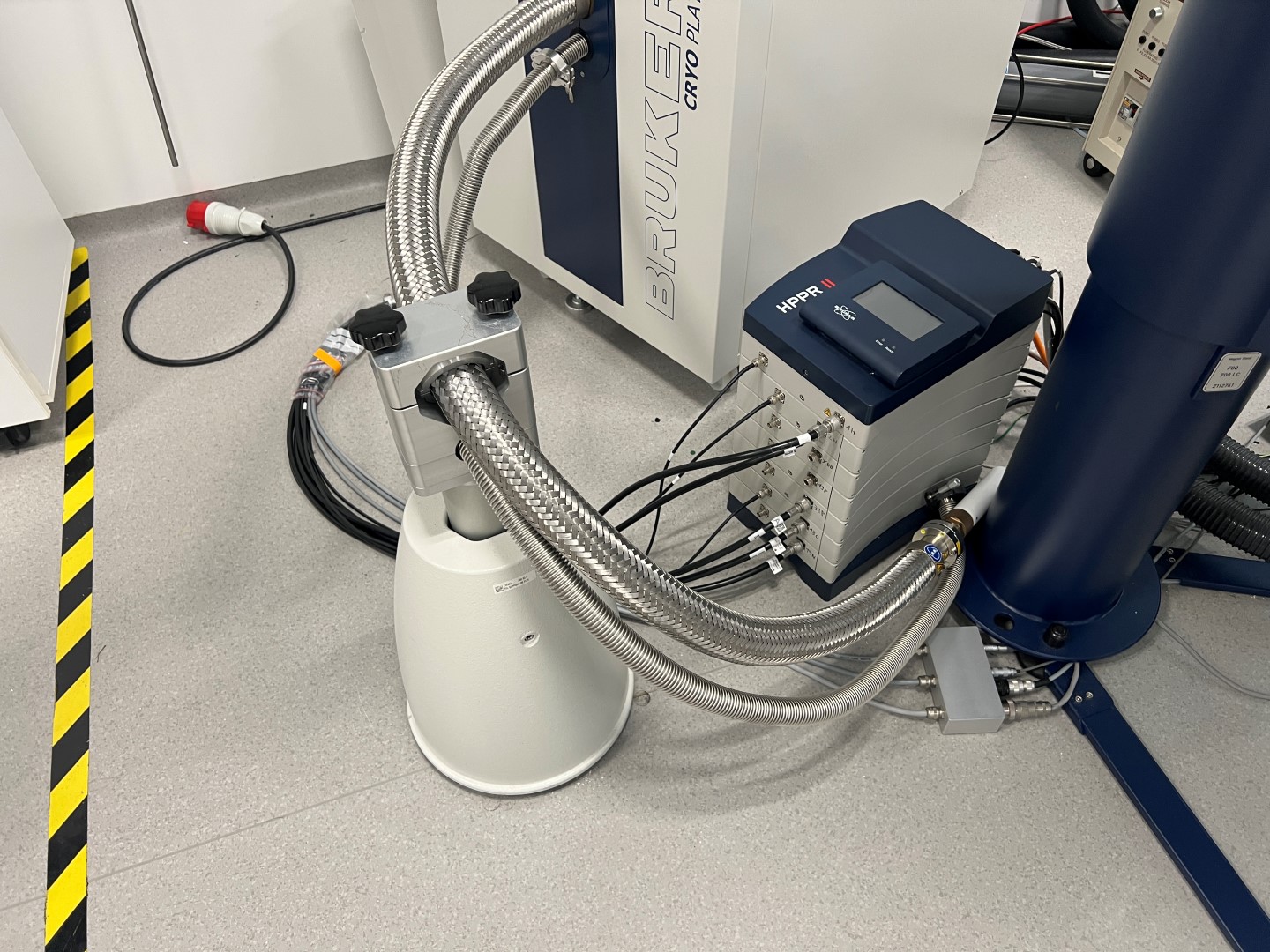

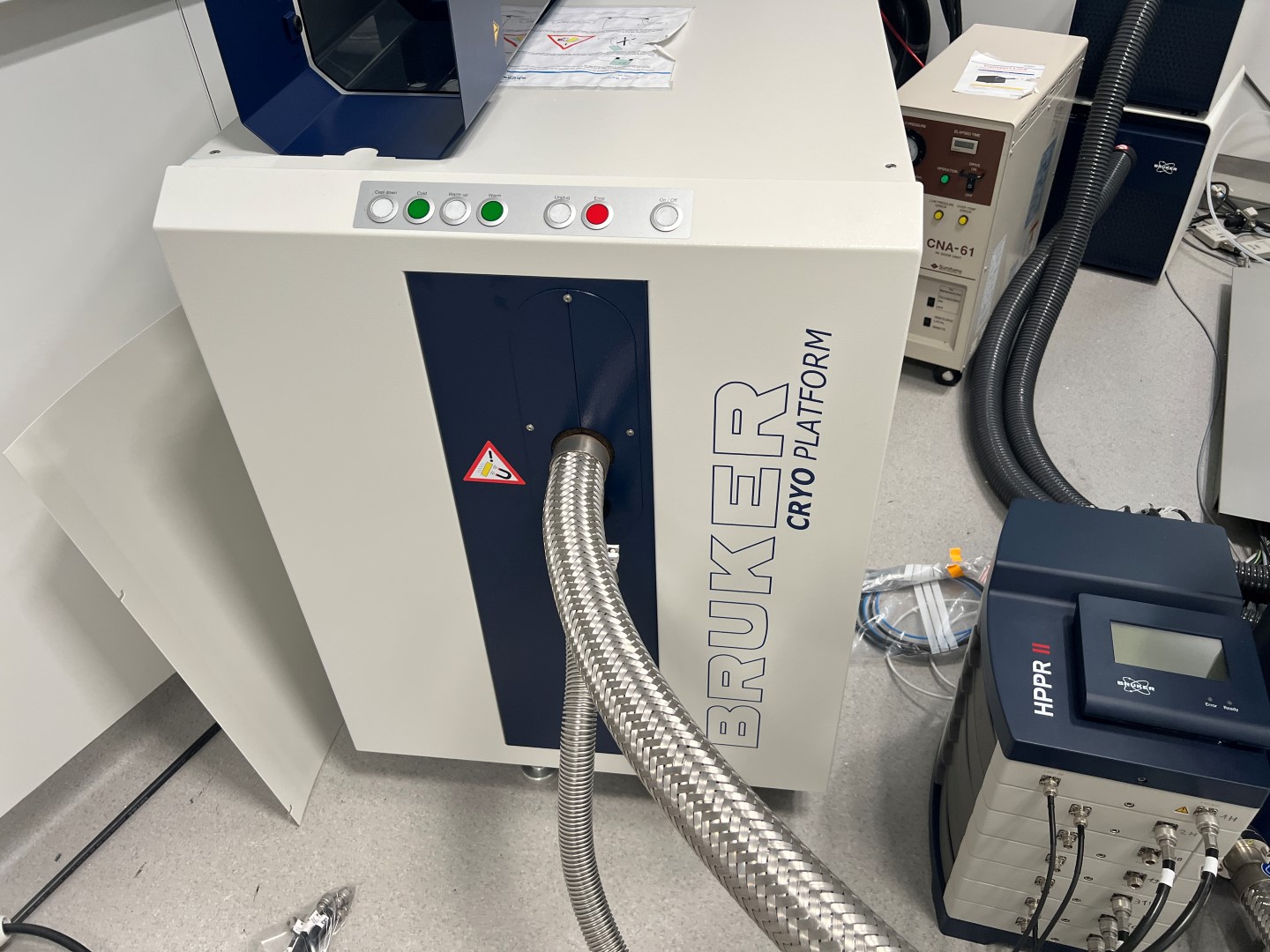

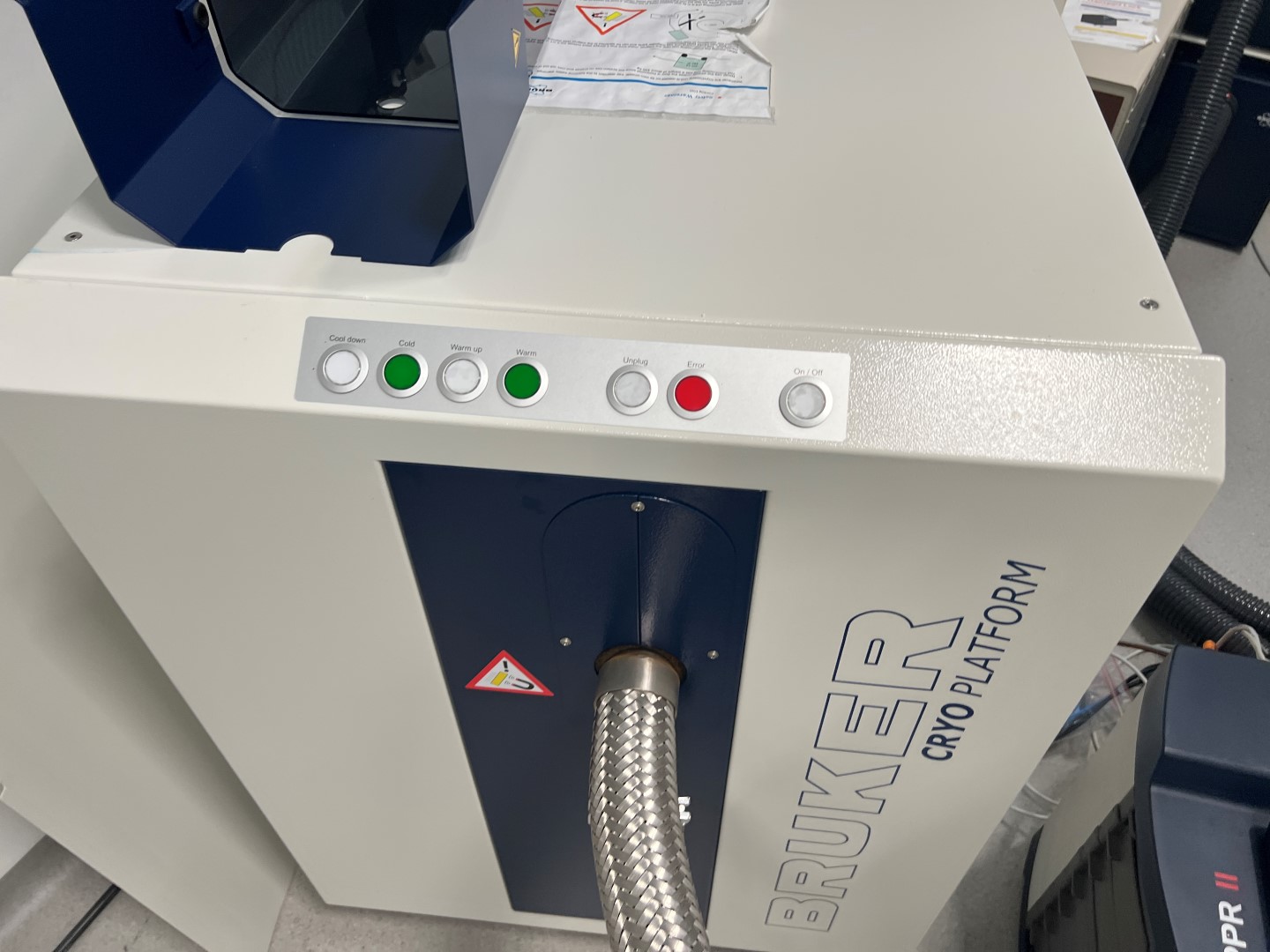

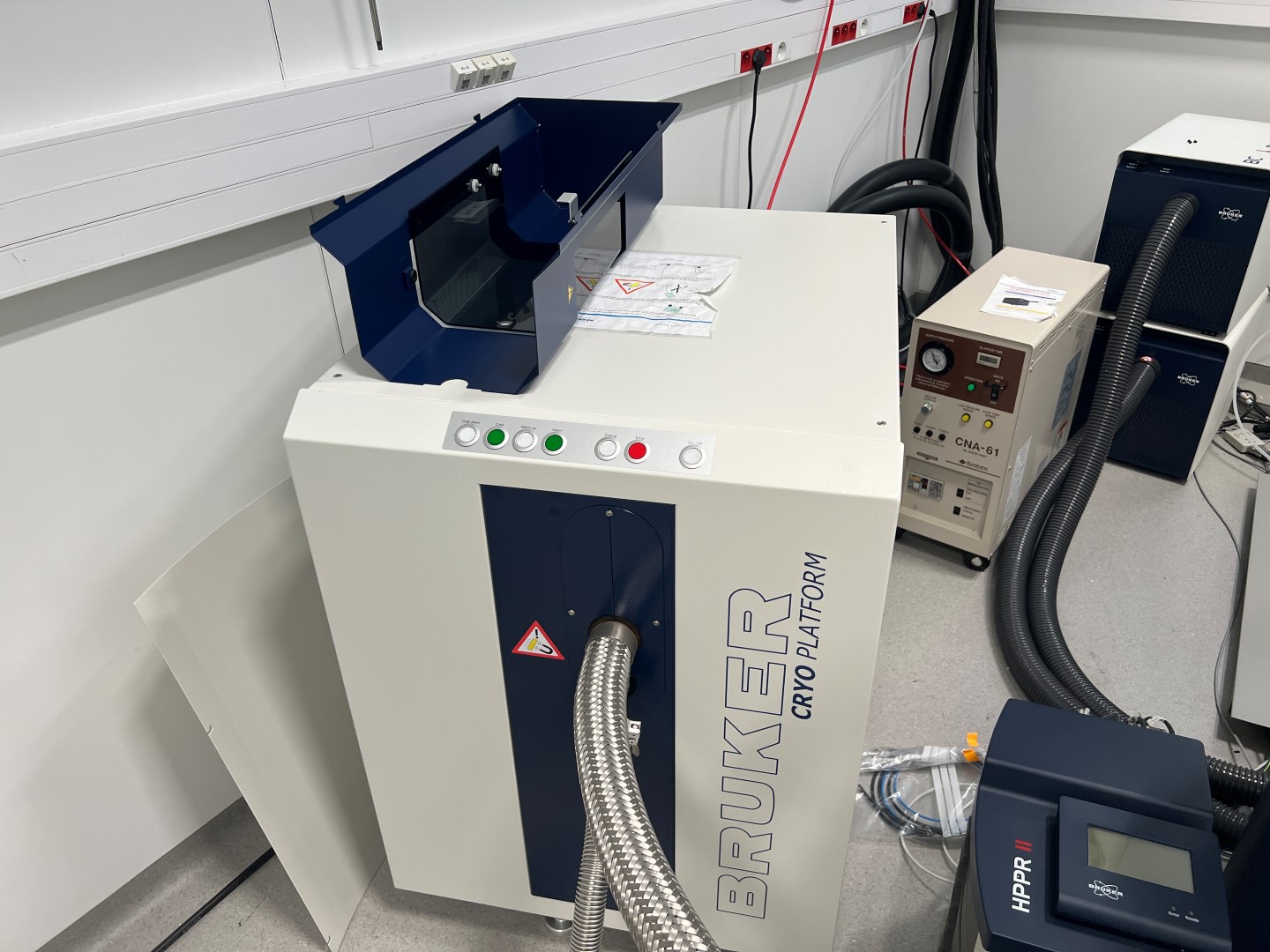

CRYO PLATFORM & HELIUM MANAGEMENT

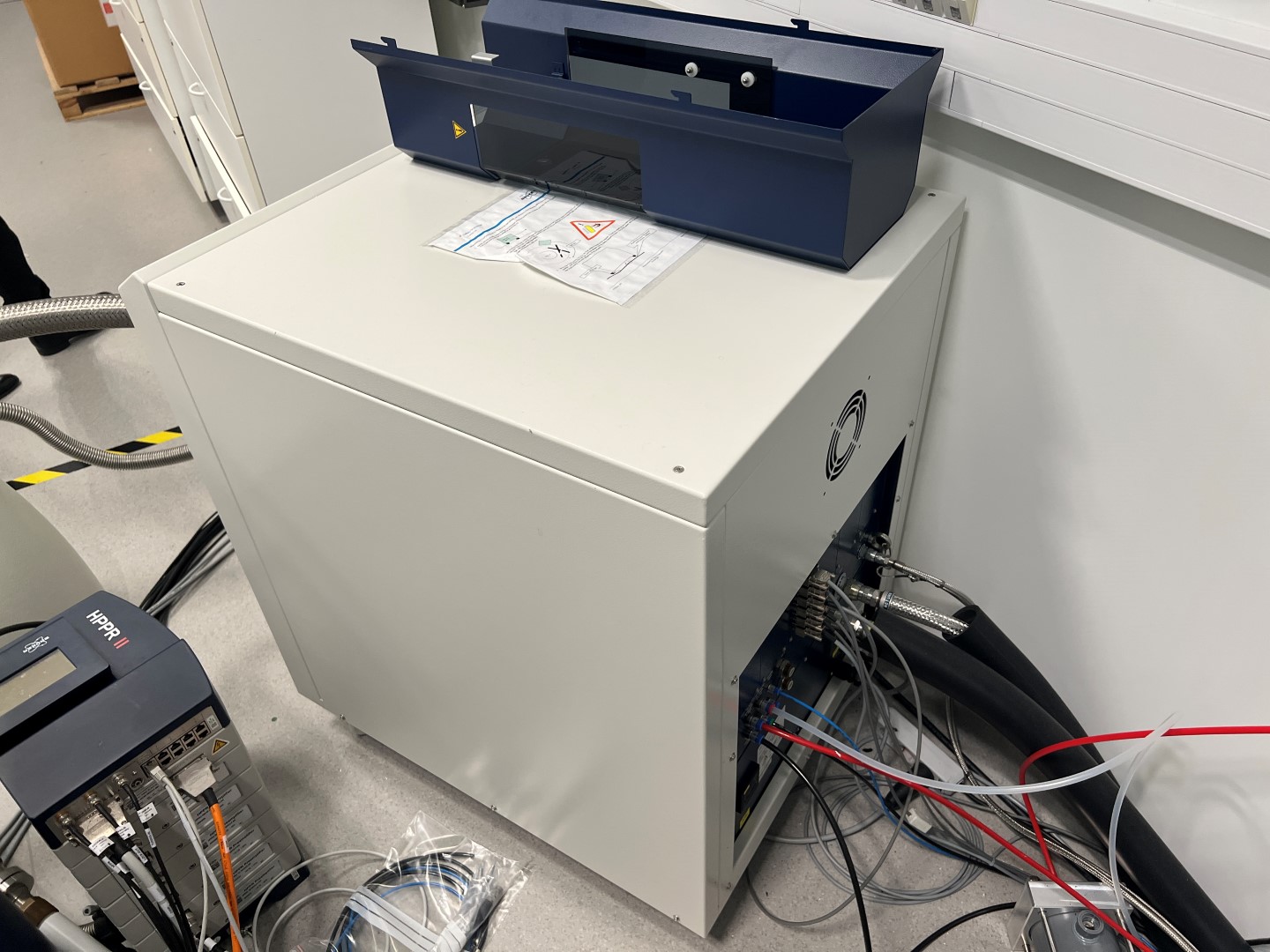

- Bruker Cryo Cooling Unit 2 m: REF Z106902 ECL 06, SN 2014-477
230 V / 50–60 Hz / 500 W avg – 800 W peak (manufactured 2014)

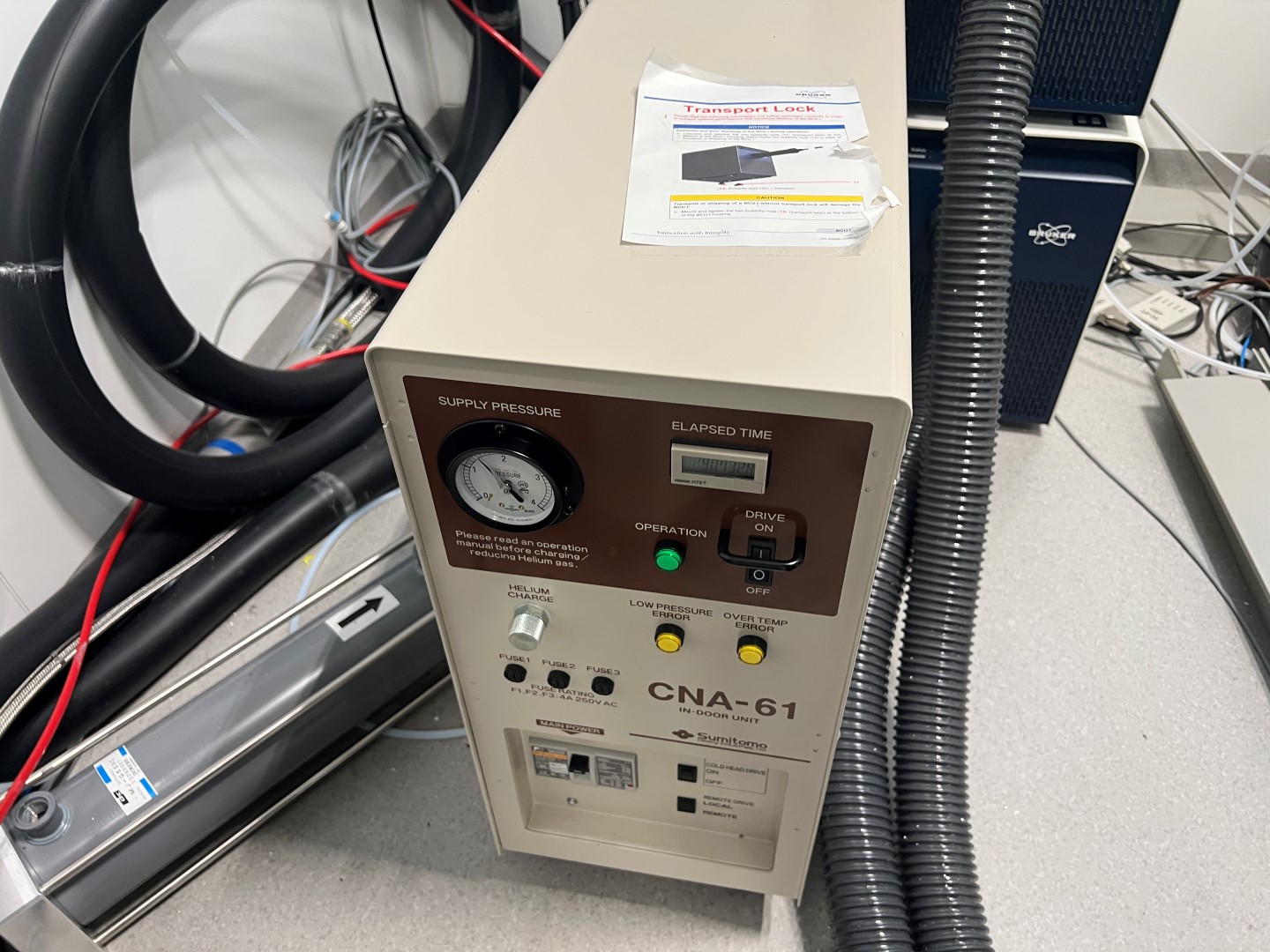

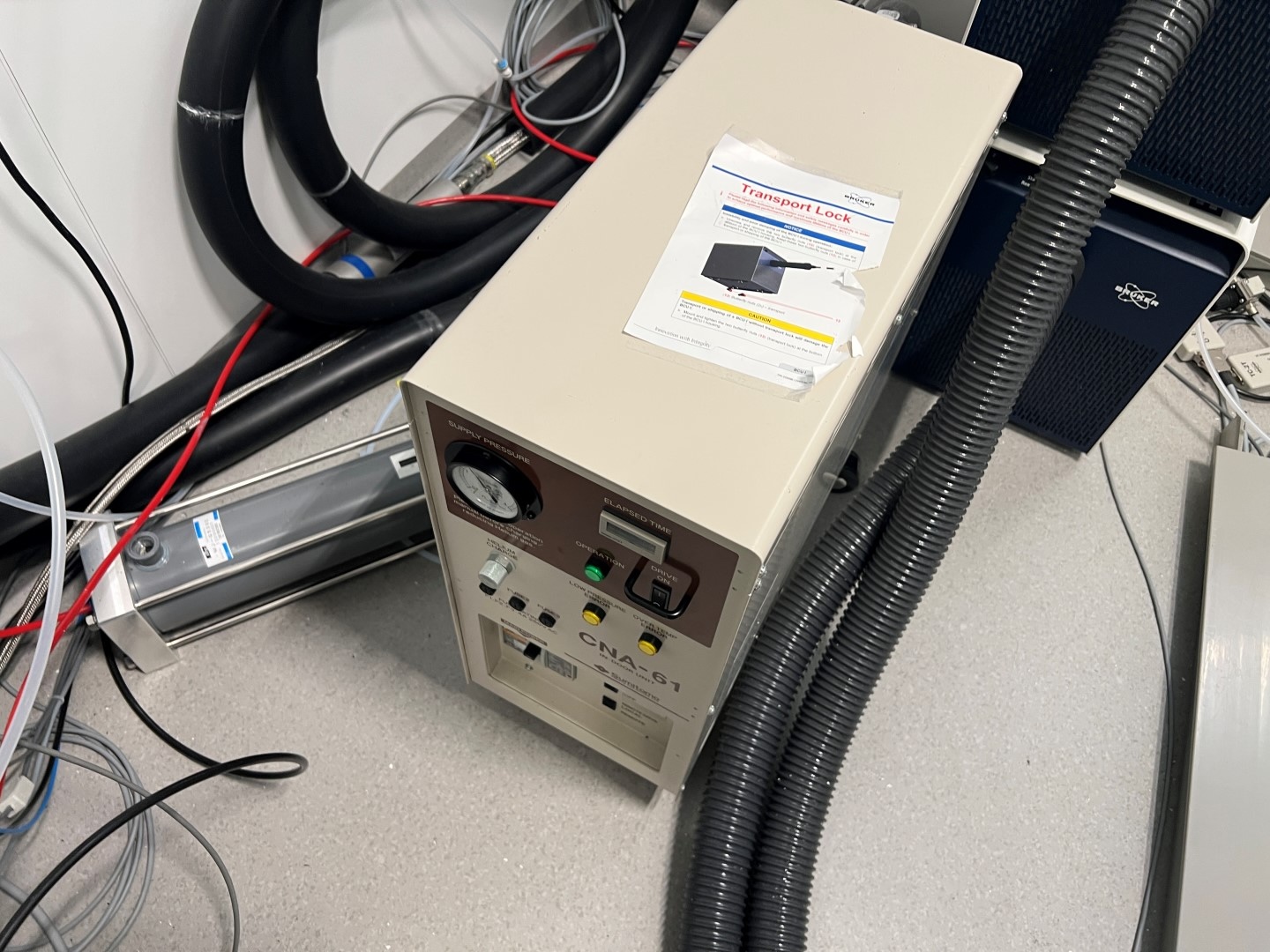

- Sumitomo CNA-61 in-door unit — closed-cycle helium recondenser
(supply pressure gauge, elapsed time counter, operation status panel)

TEMPERATURE CONTROL
- Bruker BCU I (Z117479 / 01.06 / 355 — 220–240 V, 2014/04)
Gas input max 6 bar | dew point < −50 °C

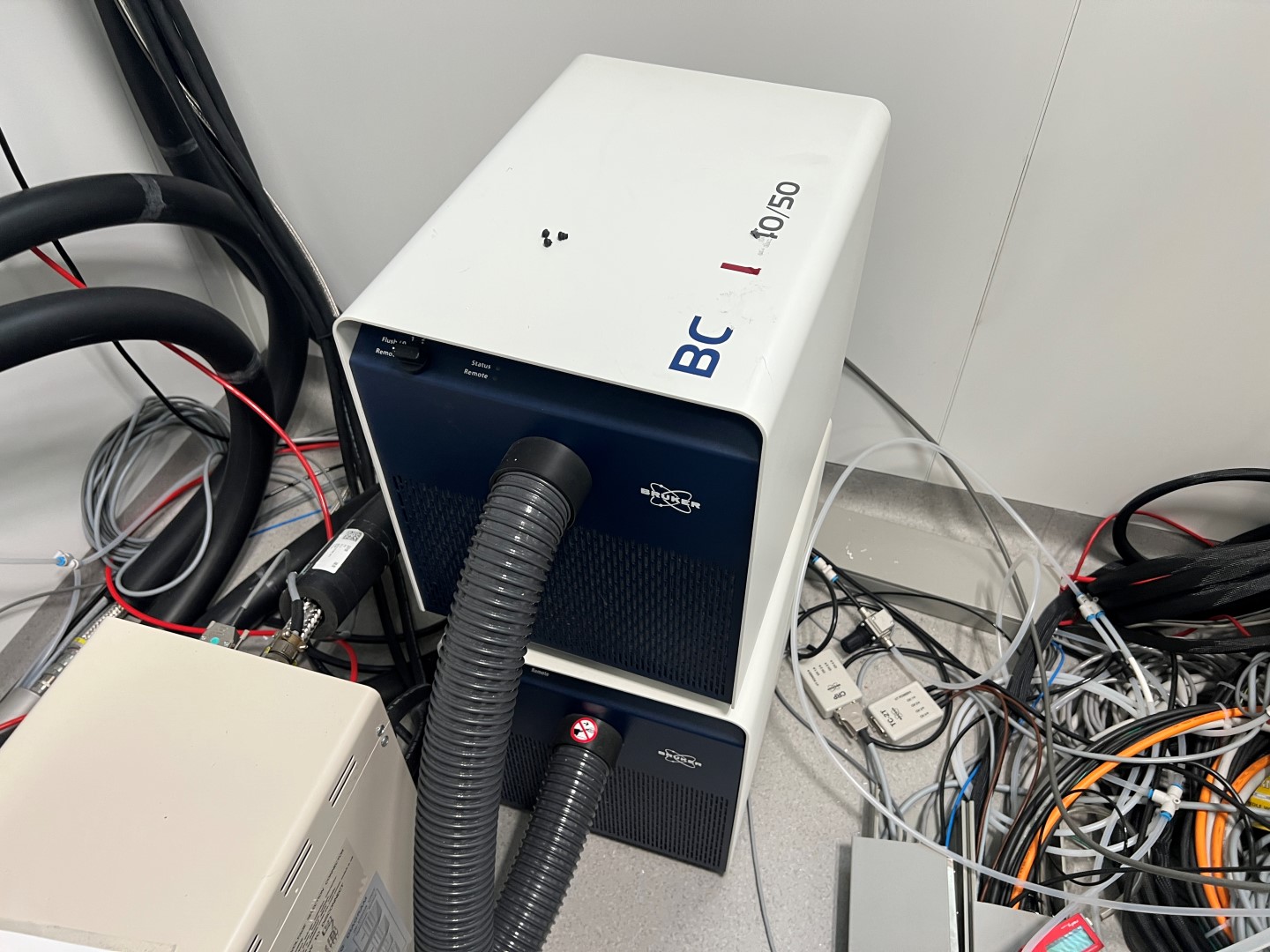

- Bruker BCU II 40/50 — low-temperature variable-temperature accessory

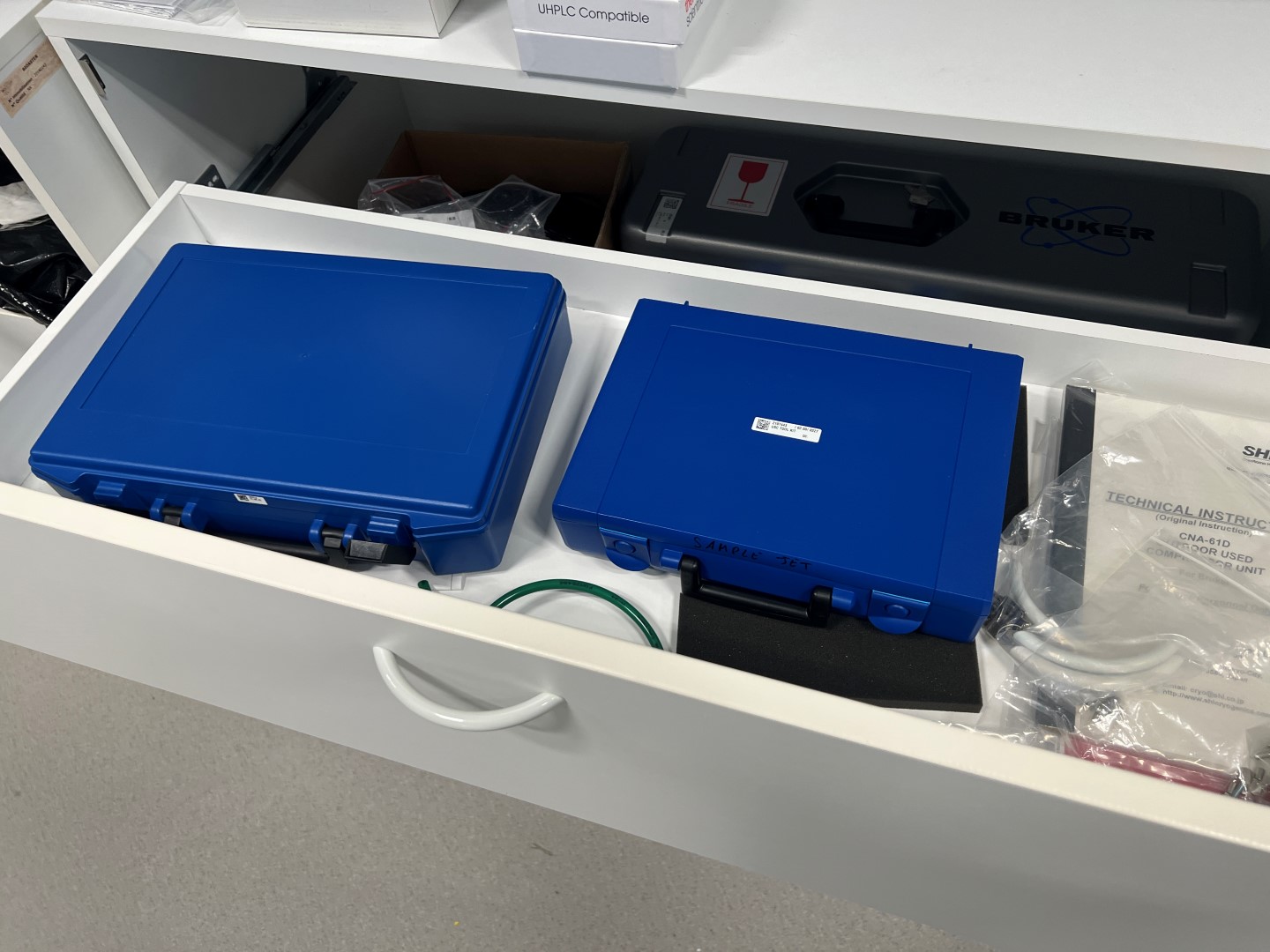

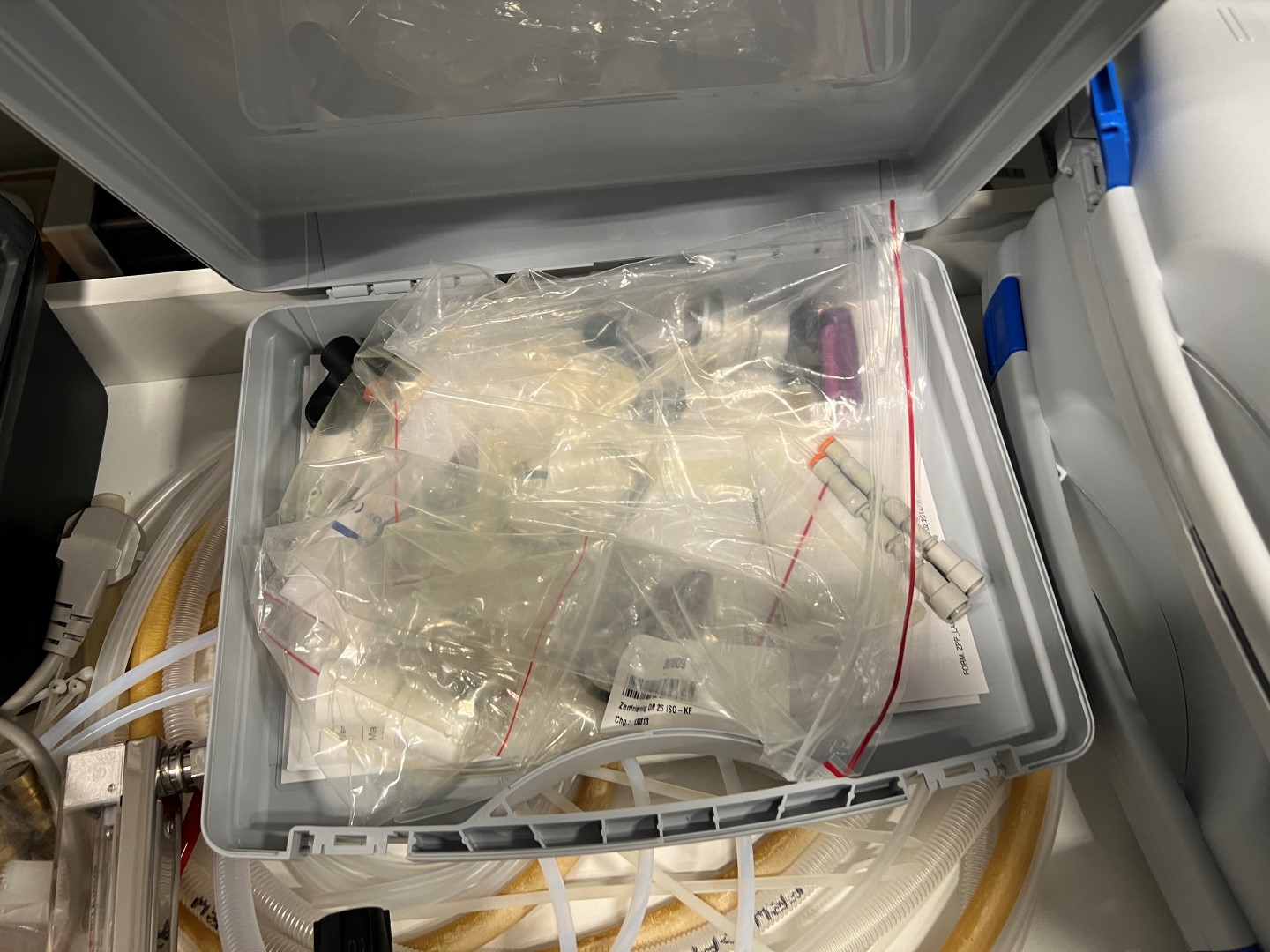

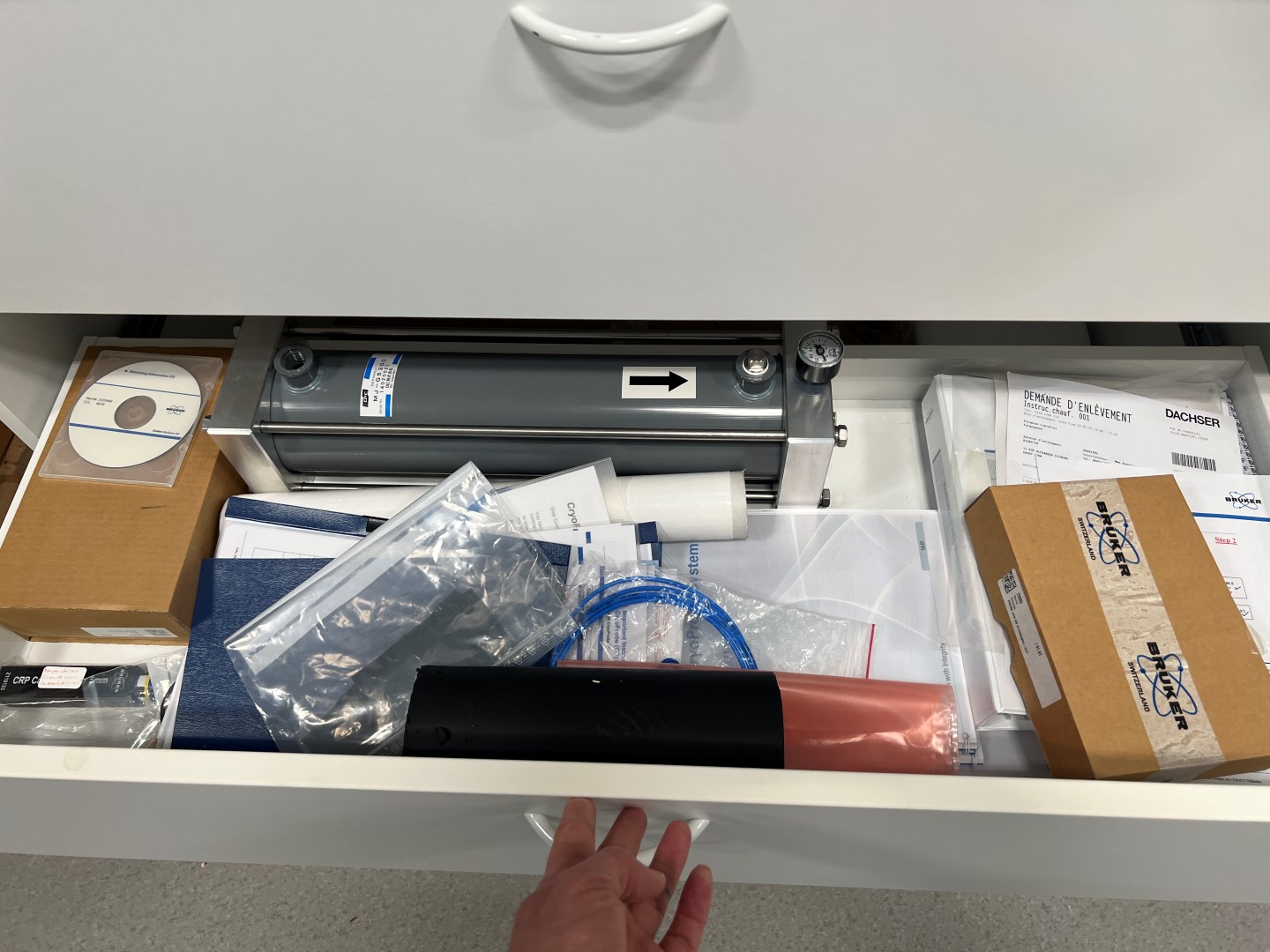

ACCESSORIES & CONSUMABLES INCLUDED

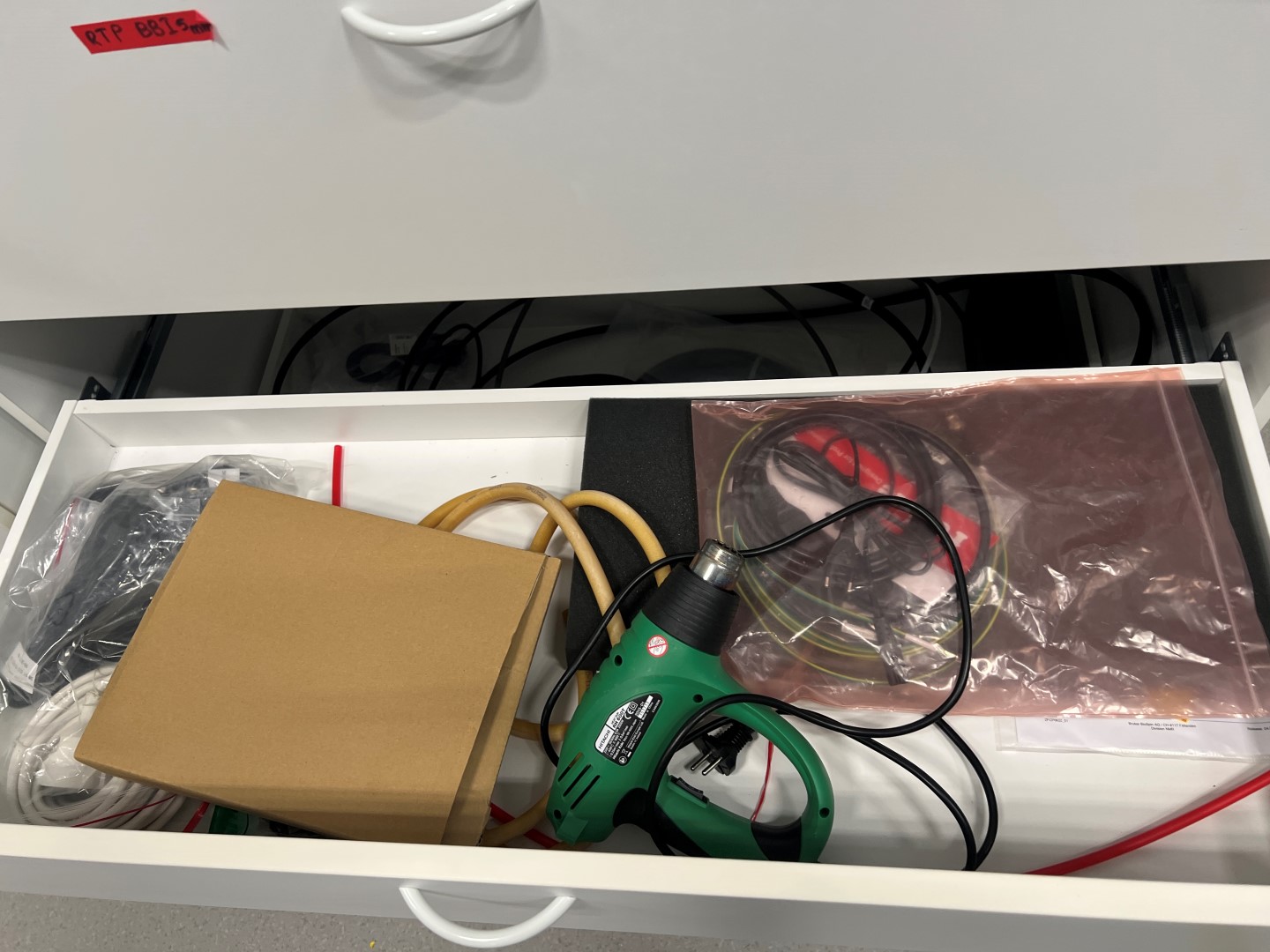

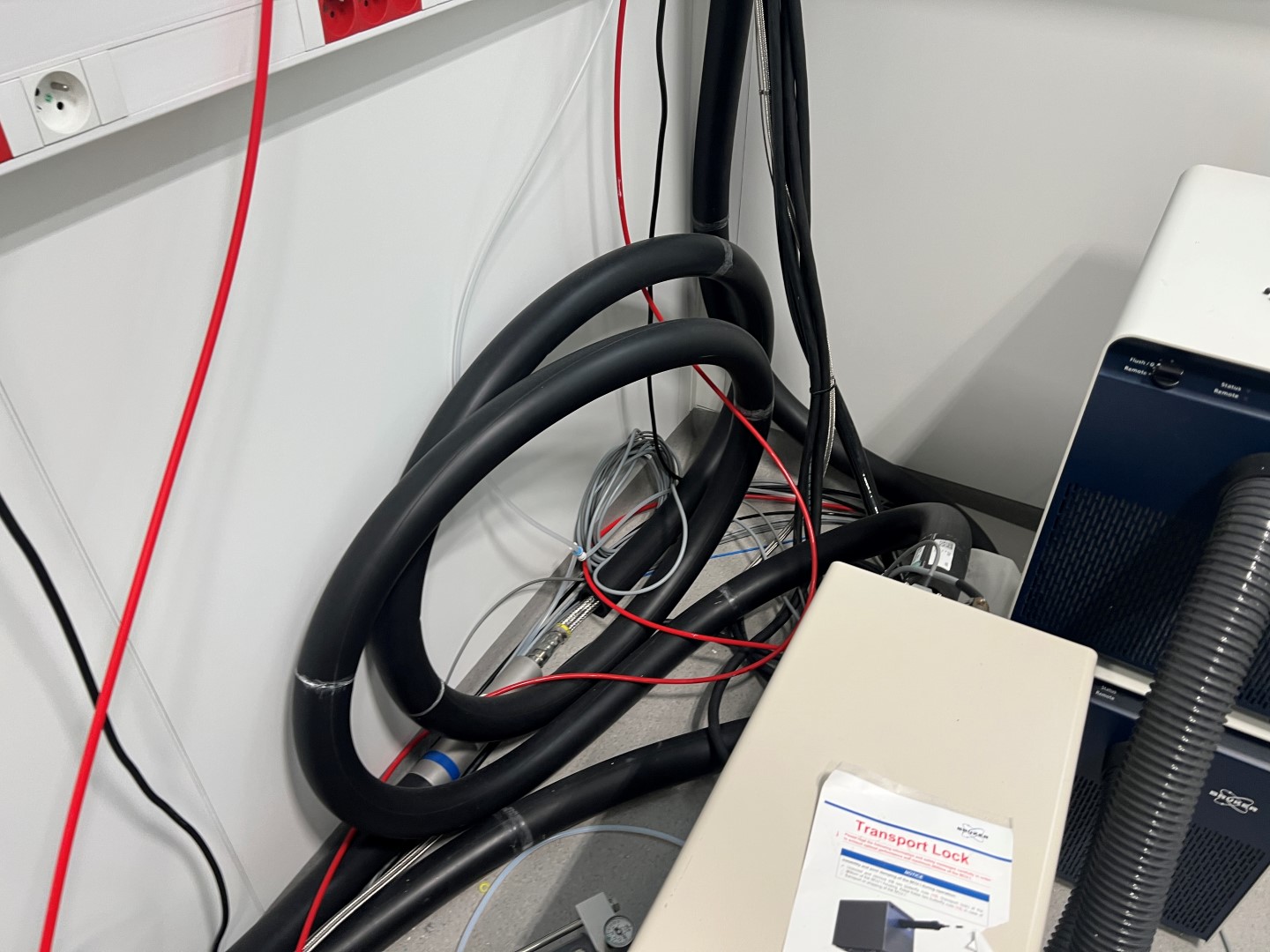

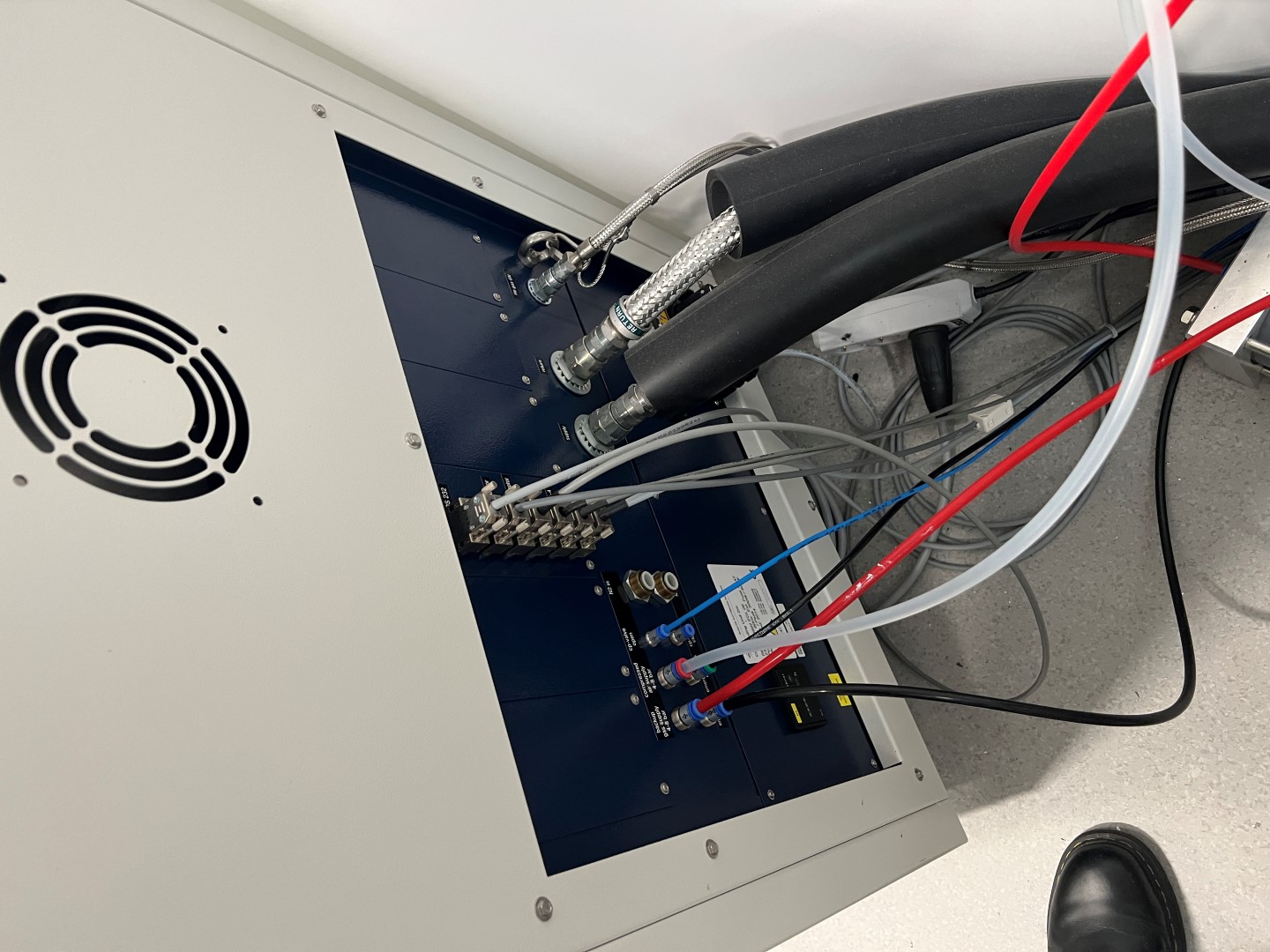

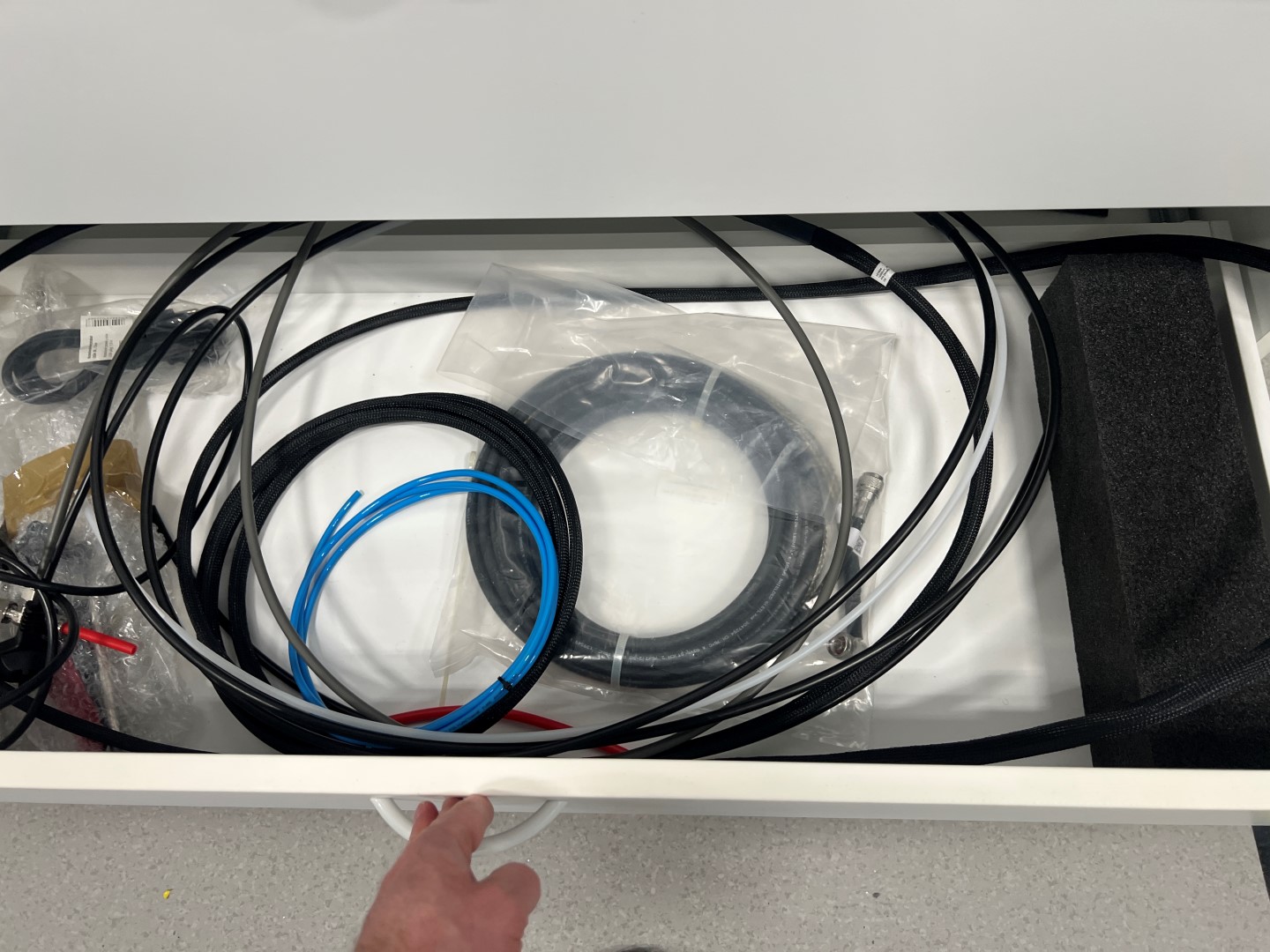

- Complete RF cabling set, HPPR harness, and SampleJet pneumatic lines

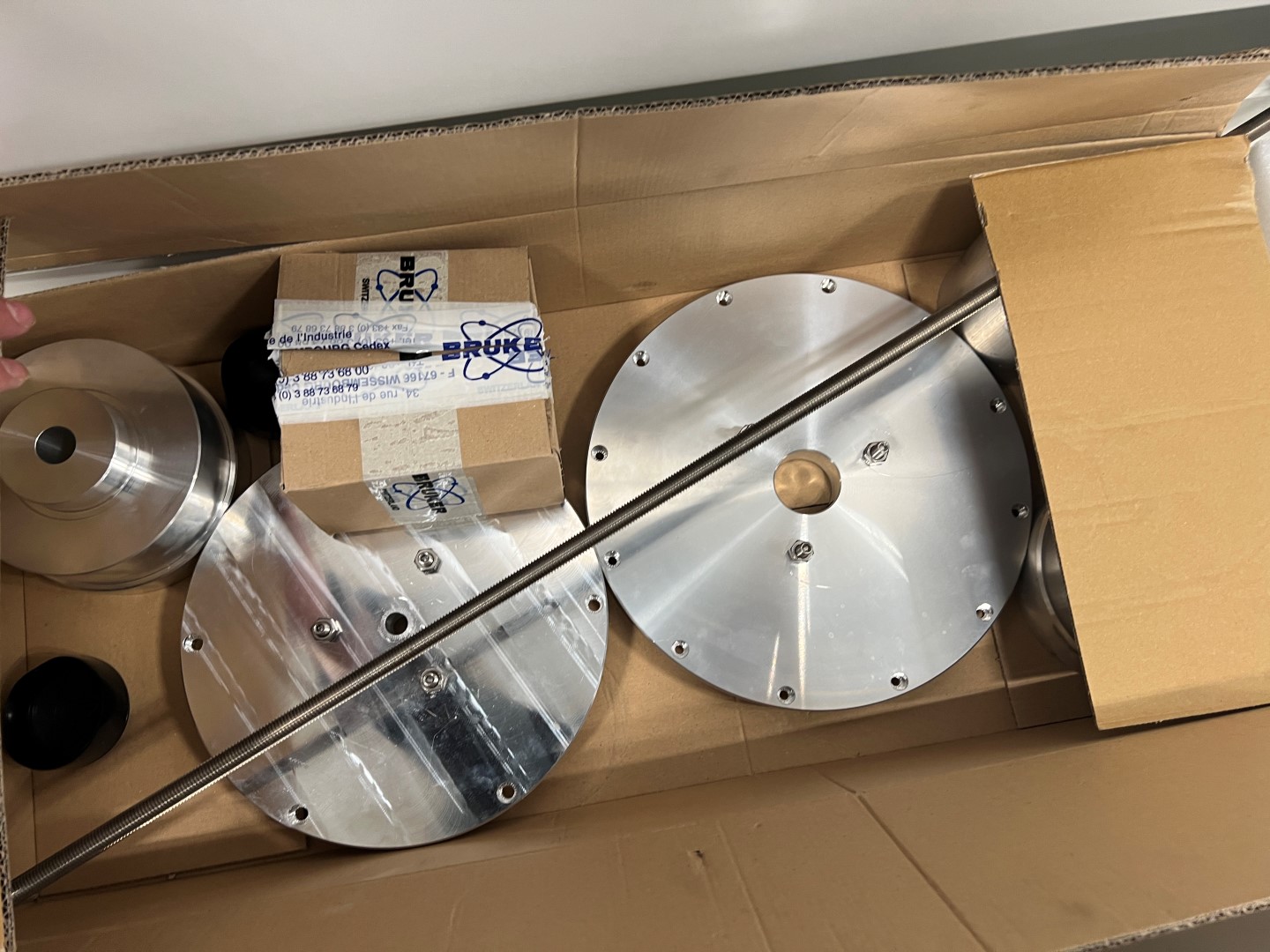

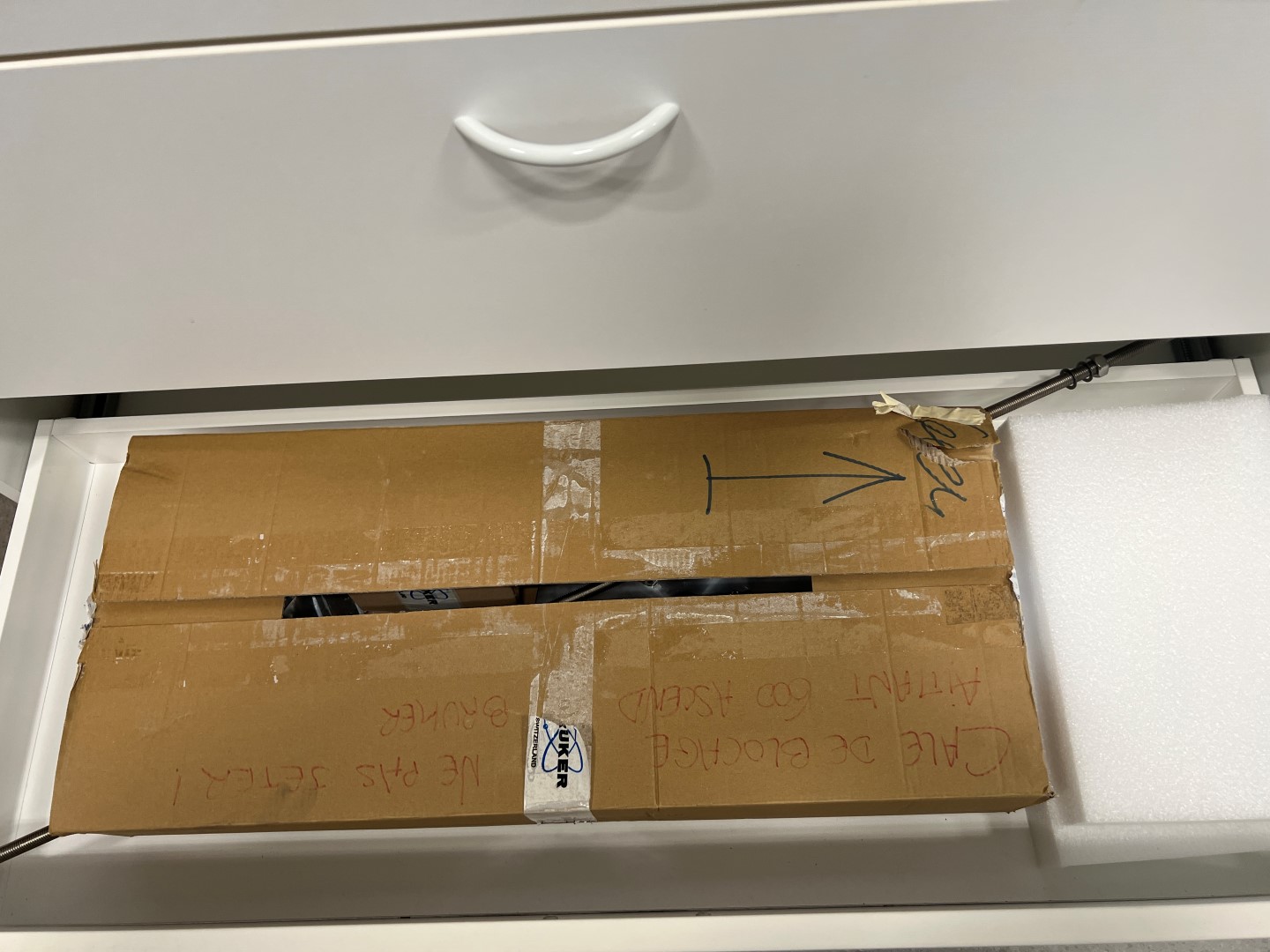

- Bruker Ascend 600 original transport locking shims (boxed)

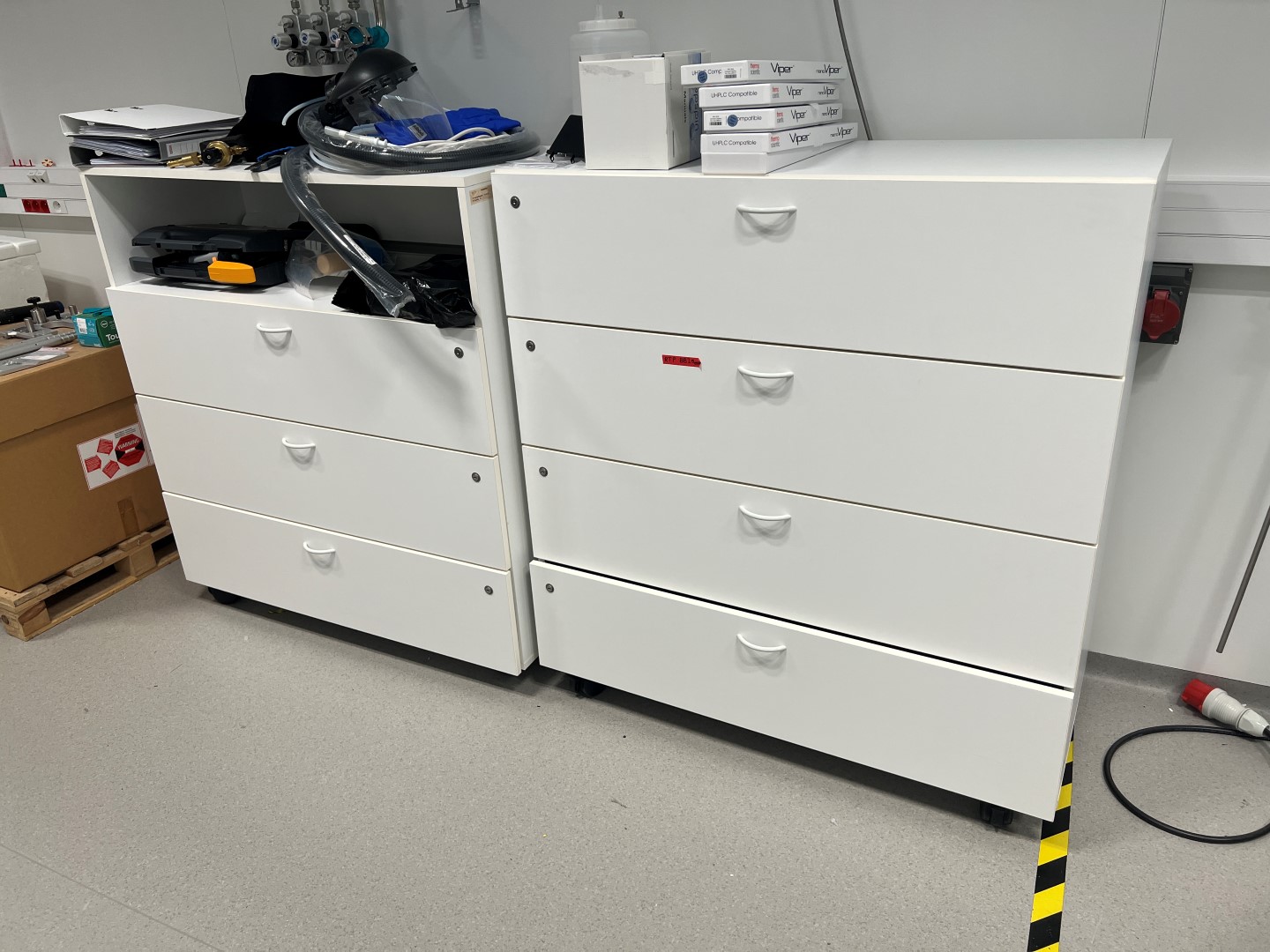

- 2× mobile white laboratory drawer units (on castors)

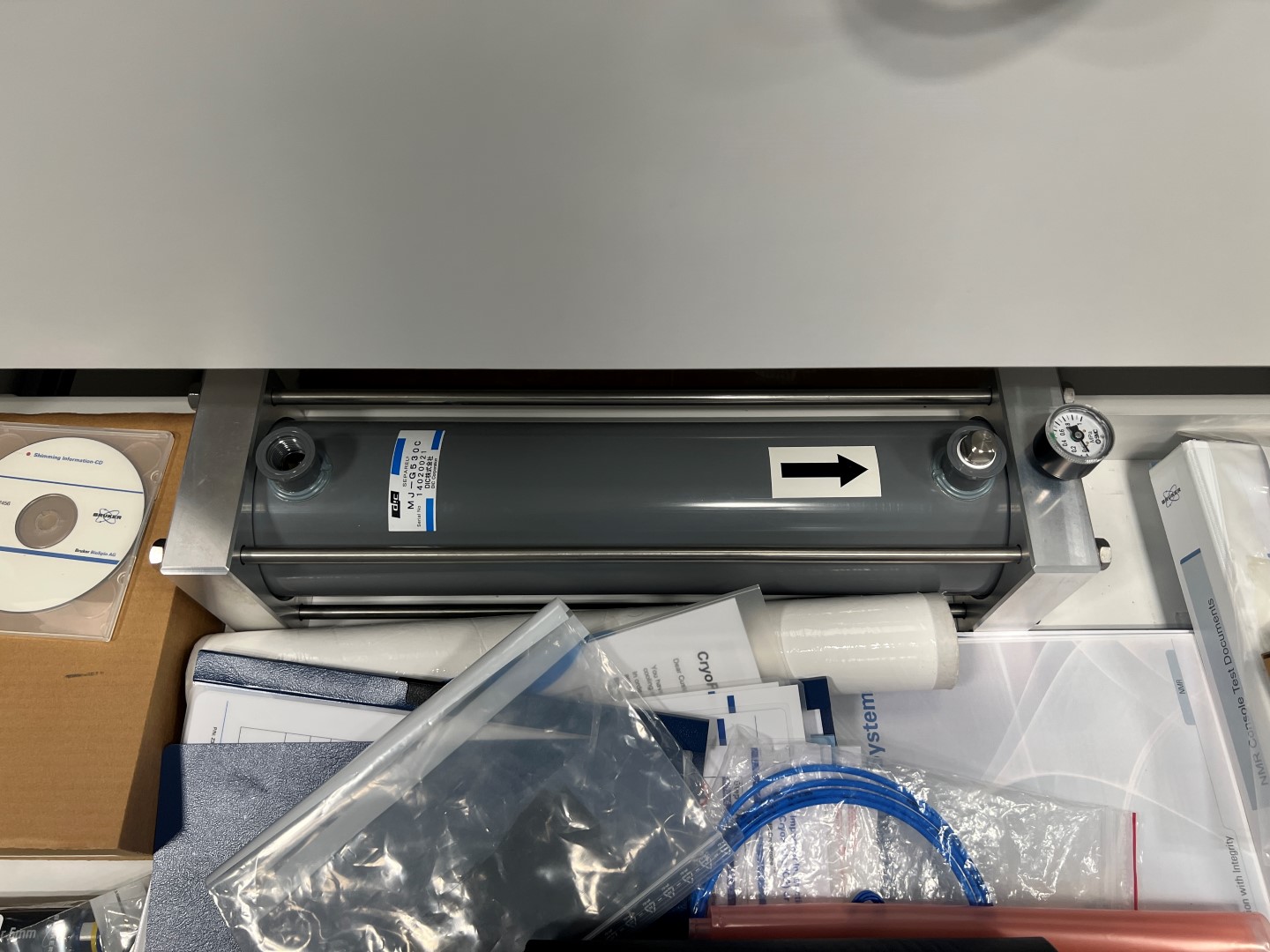

- Documentation and manuals as available on site

CONDITION
System has been properly maintained throughout its service life. All major sub-systems are present and accounted for.

One important note: Relocation will require a certified Bruker engineer.
The system has been decontaminated (certificate available). Sold as-is, where is. Buyer responsible for deinstallation, packing, and shipping. Viewing strictly by appointment. On-site demonstration available upon request.
